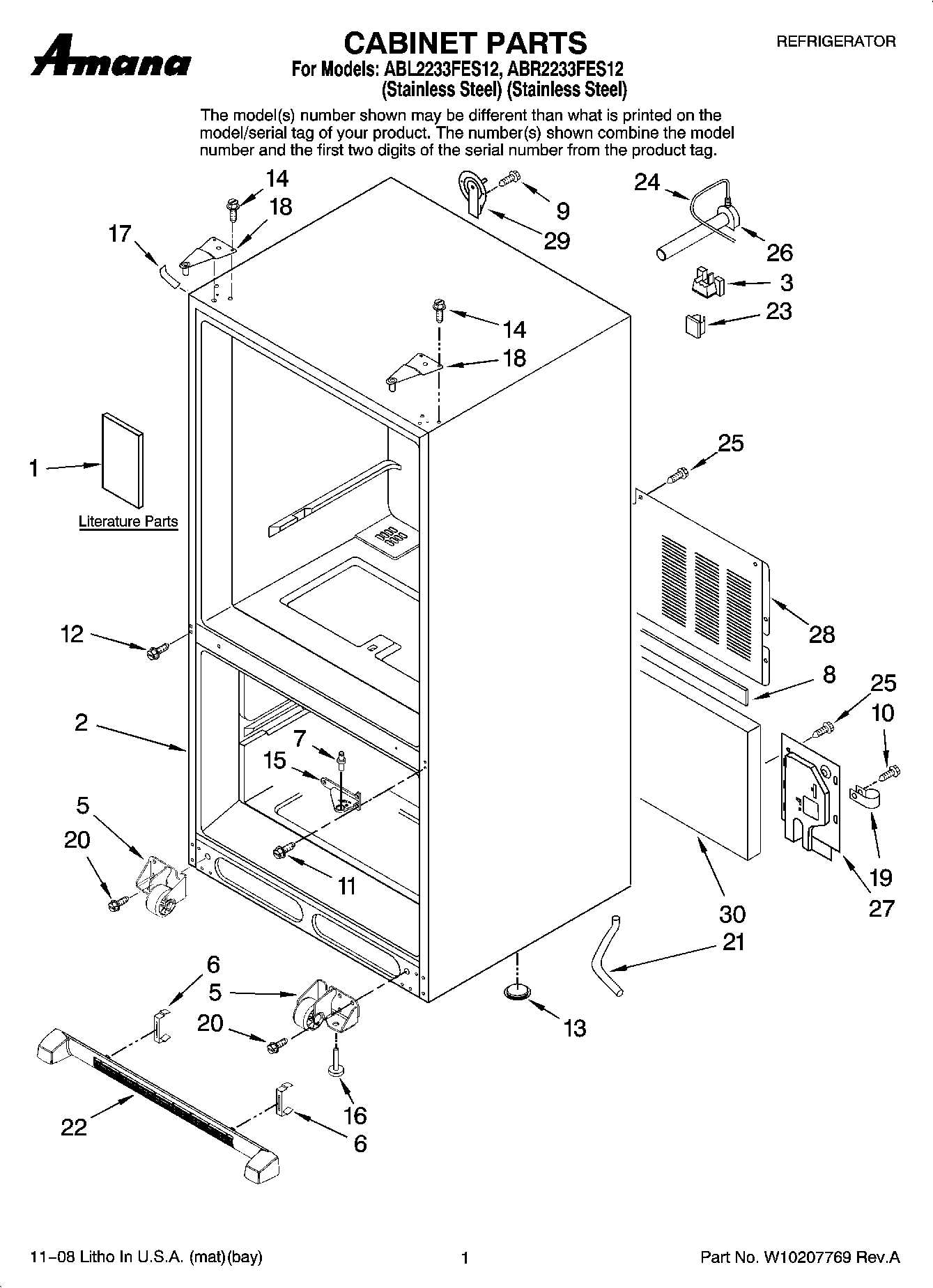

ABL2233FES12 01 – CABINET PARTS

ABL2233FES12 01 – CABINET PARTS

Written by

in

ABL2233FES12 01 – CABINET PARTS

Products

PositionProduct
1MAY W10175445
1MAY W10183258
1MAY W10165418
3WP12777701 Whirlpool Refrigerator Filler Block
5Roller Assy.(Rear)
6Clip, Grille
7WP67006642 Whirlpool Refrigerator Pin
8Gasket
9WP98165 Whirlpool Screw
10SCREW
11WP67006380 Whirlpool Screw
12Screw (8)
13A3076901 Whirlpool Refrigerator Plug
14WP489349 Whirlpool Refrigerator Screw
15WP12607104ED Whirlpool Refrigerator Door Hinge
16W11177593 Whirlpool Leveling Feet
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18Hinge, Top
19MAY W10157973
20MAY 67006564
21MAY W10164397
22WPW10534162 Whirlpool Refrigerator Front Grille
2367002816 Whirlpool Refrigerator Waterline Clip
24Tubing, Plastic
25Screw (10)
26MAY W10137519
27MAY 67004611
28MAY 67006101
29COVER, WATER LINE
3067003796 Whirlpool Refrigerator Fiber Acoustic
