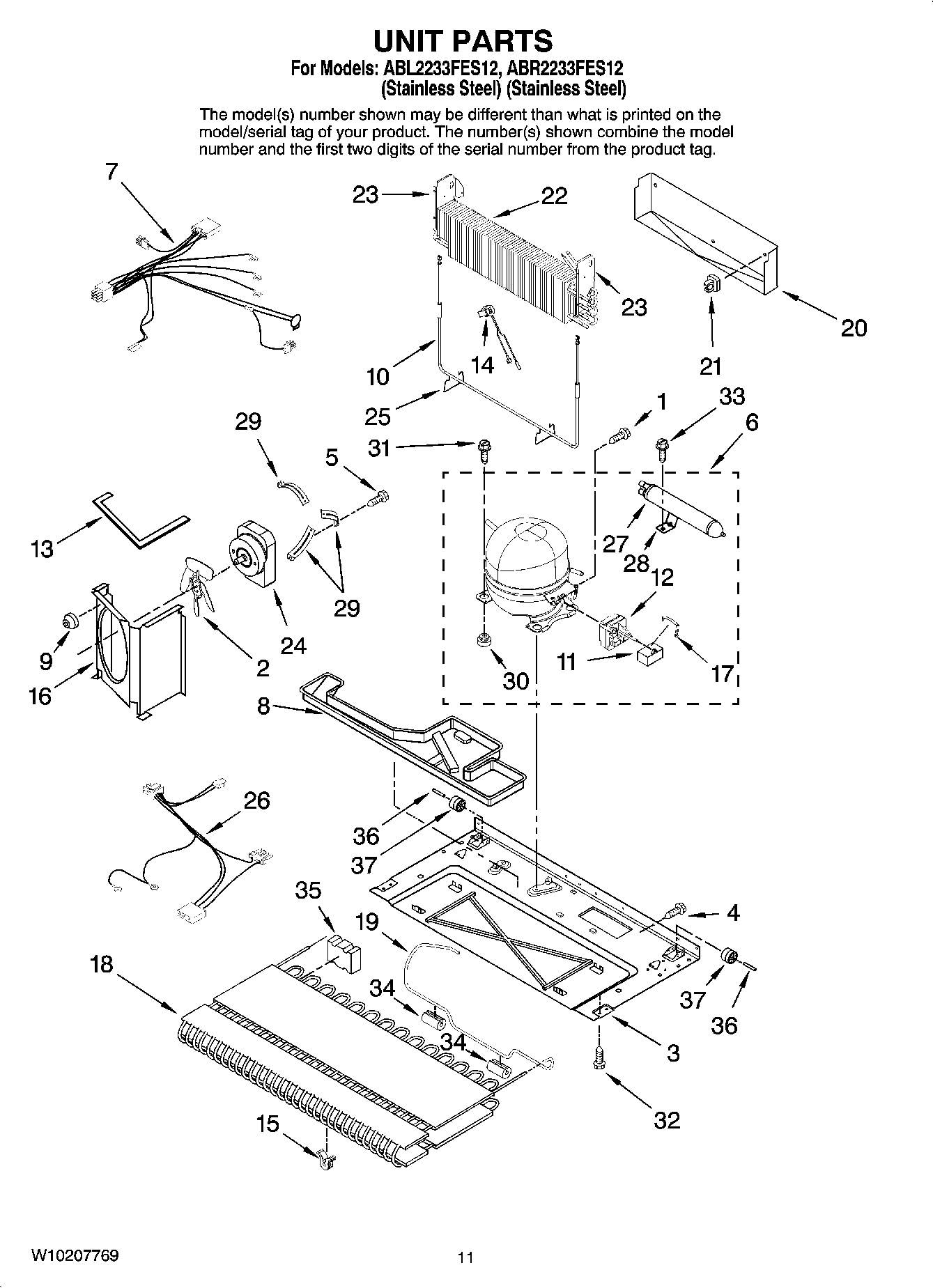

ABL2233FES12 06 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/16“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	VALVE, ACCESS (3/8“)
1	MAY 67006433
2	MAY W10162928
3	BASEPAN, MACHINE COMPARTMENT
4	Screw (10)
5	WP67004954 Whirlpool Refrigerator Screw
6	COMPRESSOR KIT CONTAINS ITEMS 12, 17, 27, & 29)
7	MAY W10119856
8	Drain Pan
9	GROMMET, BRACKET
10	WP67001794 Whirlpool Refrigerator Defrost Heater
11	Capacitator (Production)
12	MAY W10136414
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Thermostat
15	GROMMET, COND (4)
16	Shroud, Condenser
17	MAY W10136415
18	WP67006132 Whirlpool Refrigerator Condenser
19	MAY W10167036
20	TRAY, DRIP E-CT
21	MAY 10623002
22	MAY 67003719
23	MAY 67001084
23	MAY 67001083
24	MAY 67004432
25	W11673433 Whirlpool Clip
26	Harness, Unit with Power Cord
27	Drier
28	MAY 10547003
29	MAY 67004953
30	MAY W10169124
31	MAY 67006432
32	Screw (4)
33	SCREW
34	67005680 Whirlpool Refrigerator Condenser Grommet
35	MAY 67005491
36	67006434 Whirlpool Axle Pin
37	WP67005149 Whirlpool Roller
