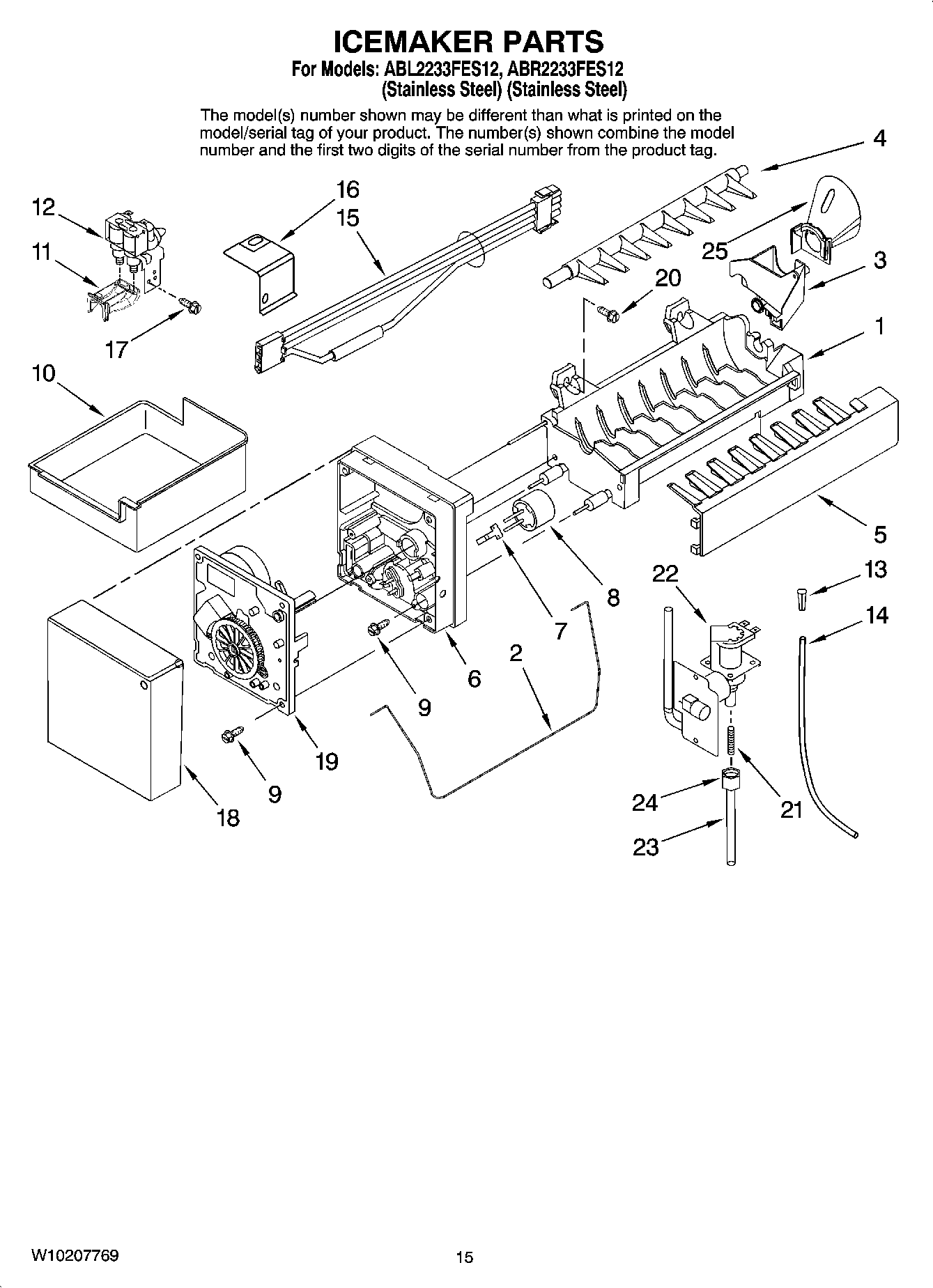

ABL2233FES12 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	MAY 1117510
NI	PAINT, SPRAY (WHITE PRIMER)
NI	SEALER, GUM (4 FEET)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
NI	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
NI	MAY 479502
NI	MAY 503695
NI	MAY 505587
NI	MAY 542638
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	Refinishing Material (Enamel, Black (1 Qt. Uncut))
NI	MAY 833938
NI	Kit, Evaporator Repair (Aluminum Epoxy)
NI	MAY 542639
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. BLACK)
NI	STAINLESS STEEL CLEANER & POLISH
2	ARM-SHUT
3	WP628356 Whirlpool Refrigerator Fill Cup
4	WP627843 Whirlpool Refrigerator Ejector Arm
5	WP2182124 Whirlpool Refrigerator Stripper Arm
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	WP2315522 Whirlpool Refrigerator Clip
9	SCREW
10	WP67001255 Whirlpool Ice Bucket
11	12831101 Whirlpool Refrigerator Tube Clamp
12	WP67006531 Whirlpool Water Inlet Valve
13	MAY A3223101
15	MAY W10153408
16	BRACKET, MODULE & HEATER
17	MAY 67006662
18	WPW10289690 Whirlpool Ice Maker Cover
20	WP98165 Whirlpool Screw
21	SPRING, ANTI KINK
22	WP67003753 Whirlpool Refrigerator Inlet Valve
23	Tubing, Plastic
24	NUT, SLEEVE
25	MAY 67005603
