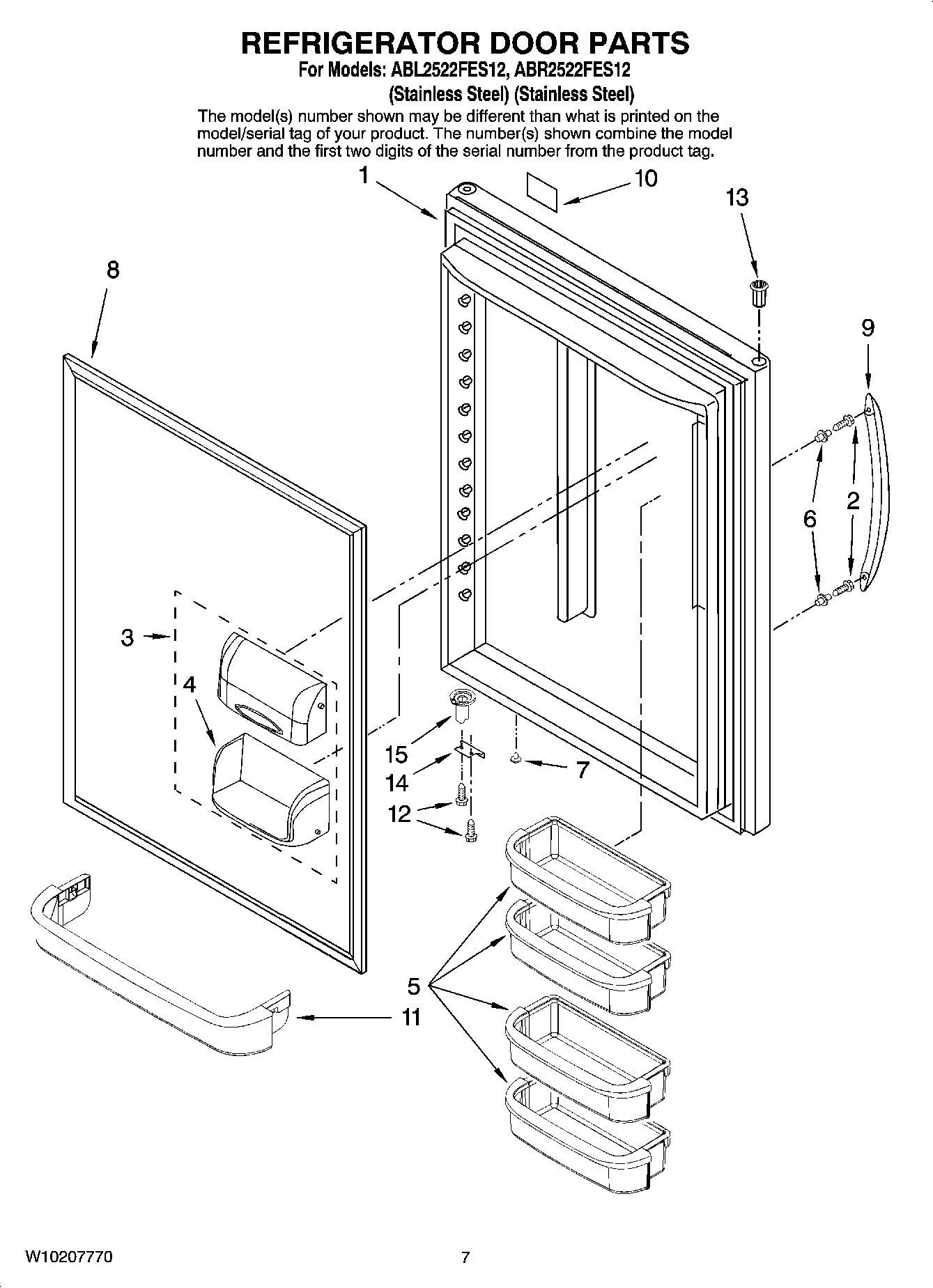

ABL2522FES12 05 – REFRIGERATOR DOOR PARTS

ABL2522FES12 05 – REFRIGERATOR DOOR PARTS

Written by

in

ABL2522FES12 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY W10205209
1MAY 13023834SQ
2WP3387230 Whirlpool Screw
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WP67001021 Whirlpool Refrigerator Bucket
6WP67006113 Whirlpool Stud Bolt
7MAY W10153326
8Door Gasket, Magnetic (Black)
9Handle (Stainless Steel)
10STAINLESS
11Retainer, Ref Door
12WP98165 Whirlpool Screw
1367004978 Whirlpool Refrigerator Black Door Bushing
14W11708403 Whirlpool Door Stop
15WP67003639 Whirlpool Refrigerator Closer
