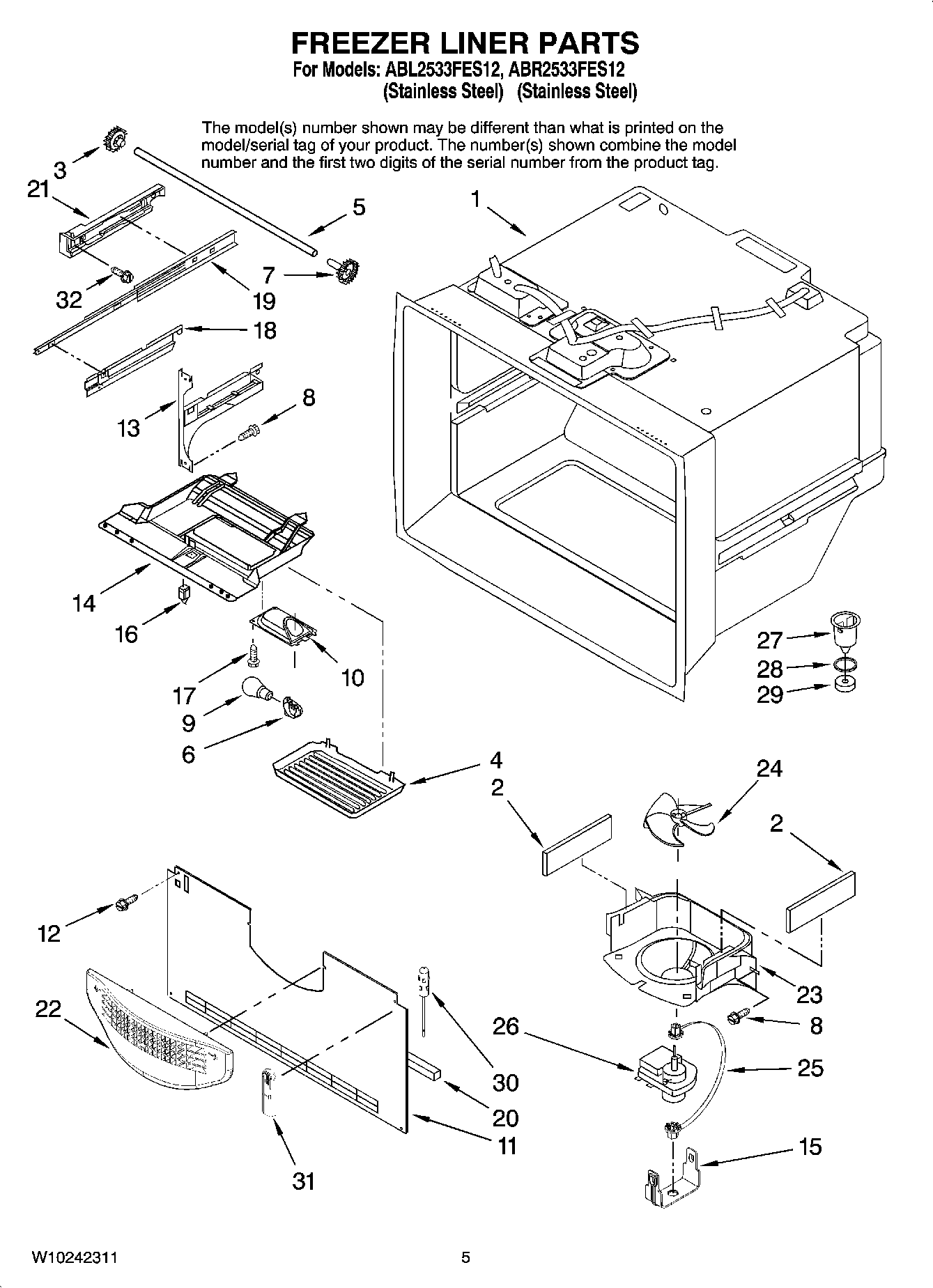

ABL2533FES12 03 – FREEZER LINER PARTS

ABL2533FES12 03 – FREEZER LINER PARTS

Written by

in

ABL2533FES12 03 – FREEZER LINER PARTS

Products

PositionProduct
NIMAY 67006095
2W10856123 Whirlpool Refrigerator Gasket
4MAY 67003905
5W11028221 Whirlpool Refrigerator Shaft
6Socket, Light (2)
712002497 Whirlpool Refrigerator Drawer Gear Kit
8SCREW
9RANGE ONLY 40W 120V APPL BULB
10MAY 67001035
11MAY 67005873
12Screw (10)
13BRACKET, DOOR (RIGHT)
13BRACKET, DOOR (LEFT)
1467003906 Whirlpool Refrigerator Control Module
15MAY 10623002
16MAY 67005653
17MAY 67006530
18WPW10280613 Whirlpool Refrigerator Bracket
18WPW10280608 Whirlpool Refrigerator Bracket
19MAY W10120018
20Gasket, Bottom
21MAY W10128118
21MAY W10128119
22MAY W10175909
23SHROUD, EVAP FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26WPW10128551 Whirlpool Evaporator Fan Motor
27MAY D7753903
28MAY M0500703
29Gasket
3012002355 Whirlpool Refrigerator Thermistor Kit
31WP67003924 Whirlpool Refrigerator Cover
32Screw (6)
