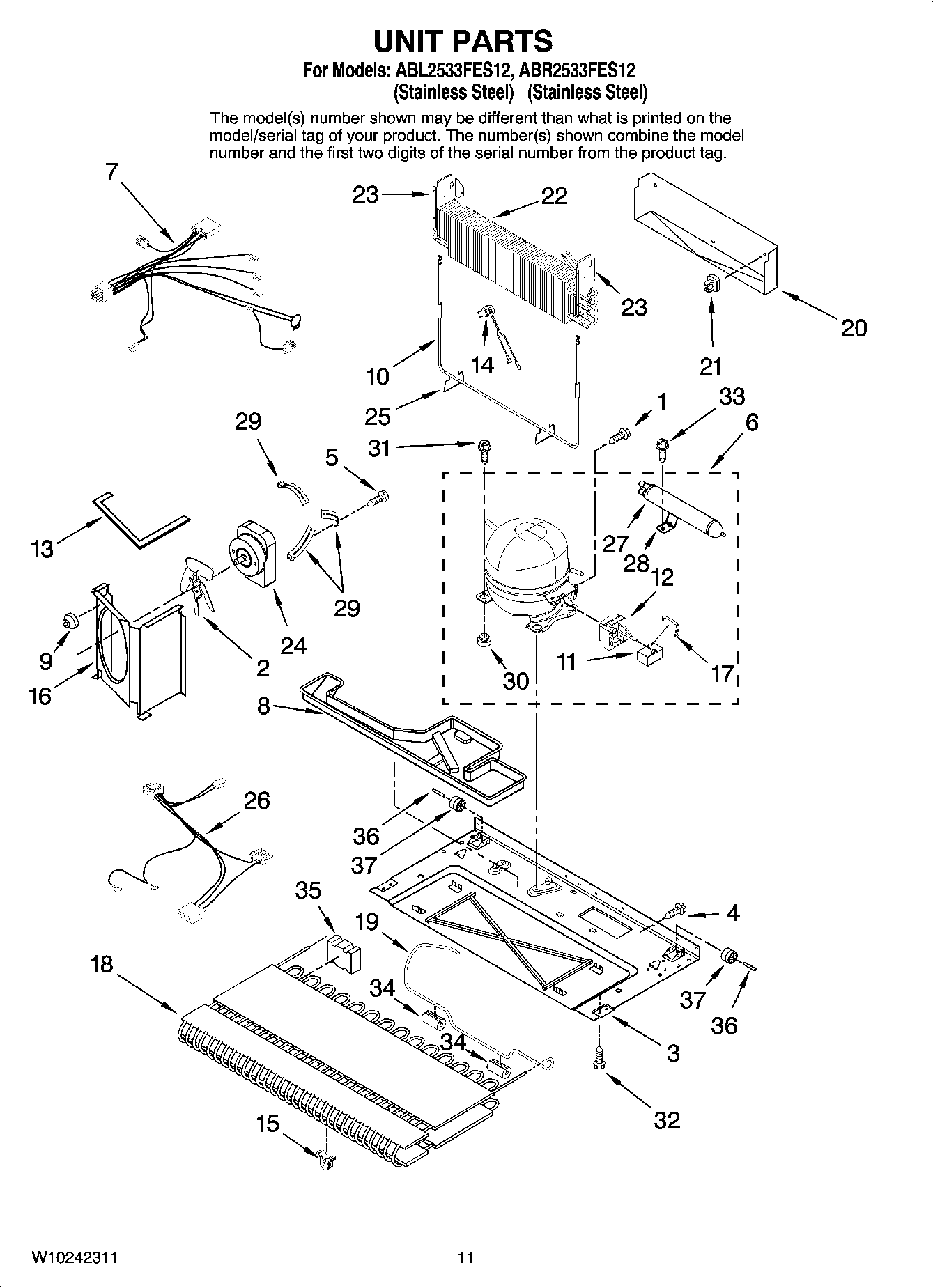

ABL2533FES12 06 – UNIT PARTS

ABL2533FES12 06 – UNIT PARTS

Written by

in

ABL2533FES12 06 – UNIT PARTS

Products

PositionProduct
NIValve, Access (5/16“)
NIValve, Access (5/8“)
NIValve, Access (1/2“)
NIValve, Access (3/4“)
NIVALVE, ACCESS (3/8“)
NIMAY 876764
NIVALVE, ACCESS (1/4“)
1MAY 67006433
2MAY W10162928
3MAY 67005889
4Screw (10)
5WP67004954 Whirlpool Refrigerator Screw
6COMPRESSOR-TPG1370YXA(BM)
7MAY W10119856
8WP12579803 Whirlpool Refrigerator Drain Pan
9GROMMET, BRACKET
10WP67002493 Whirlpool Refrigerator Defrost Heater
11Capacitor
12OVERLOAD/RELAY W/CAPACITOR
13WP854334 Whirlpool Air Conditioner Sealing Strip
14Thermostat
15GROMMET, COND (4)
16Shroud, Condenser
17MAY 67007052
18WP67006131 Whirlpool Refrigerator Condenser
19MAY 67004700
20MAY 67002490
21MAY 10623002
22MAY 67003720
23MAY 67001084
23MAY 67001083
24MAY 67004432
25W11673433 Whirlpool Clip
26Harness, Unit with Power Cord
27Drier
28MAY 10547003
30MAY 67004953
31MAY 67006432
32Screw (4)
33SCREW
3467005680 Whirlpool Refrigerator Condenser Grommet
35MAY 67005491
3667006434 Whirlpool Axle Pin
37WP67005149 Whirlpool Roller
