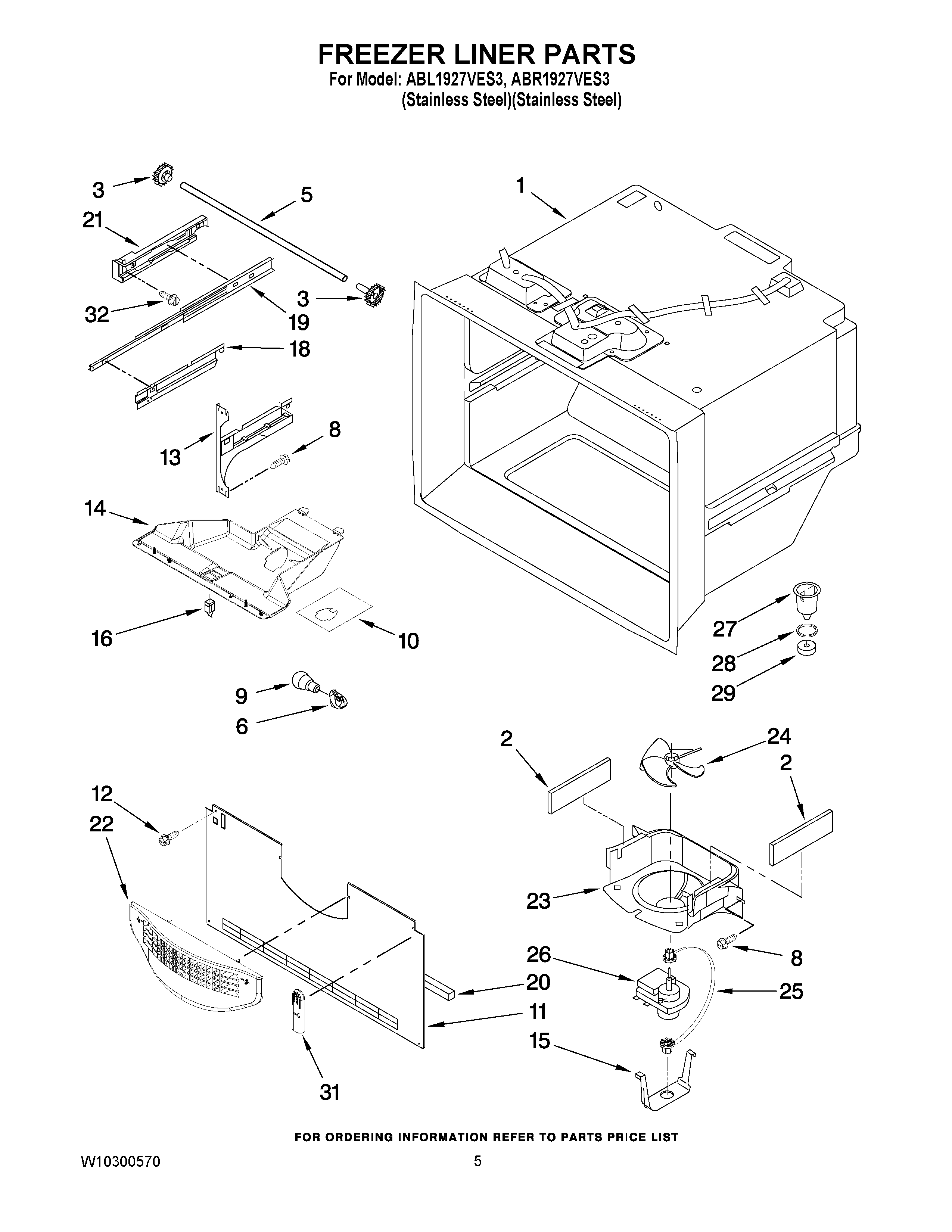

ABR1927VES3 03 – FREEZER LINER PARTS

ABR1927VES3 03 – FREEZER LINER PARTS

Written by

in

ABR1927VES3 03 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
312002497 Whirlpool Refrigerator Drawer Gear Kit
5SHAFT-RACK
6Socket, Light
8Screw (8)
9Bulb, Light (2)
10FOIL-FZ LIGHT
11MAY 12226110
12MAY 12990101
13BRACKET, DOOR (RIGHT)
13BRACKET, DOOR (LEFT)
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
18CRADLE-BASKET (LEFT HAND)
18CRADLE-BASKET (RIGHT HAND)
19MAY W10120018
20MAY A3189394
21MAY W10261204
21MAY W10261203
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY W10128551
27MAY D7753903
28MAY M0500703
29Gasket
31MAY 12815301
32Screw (6)
