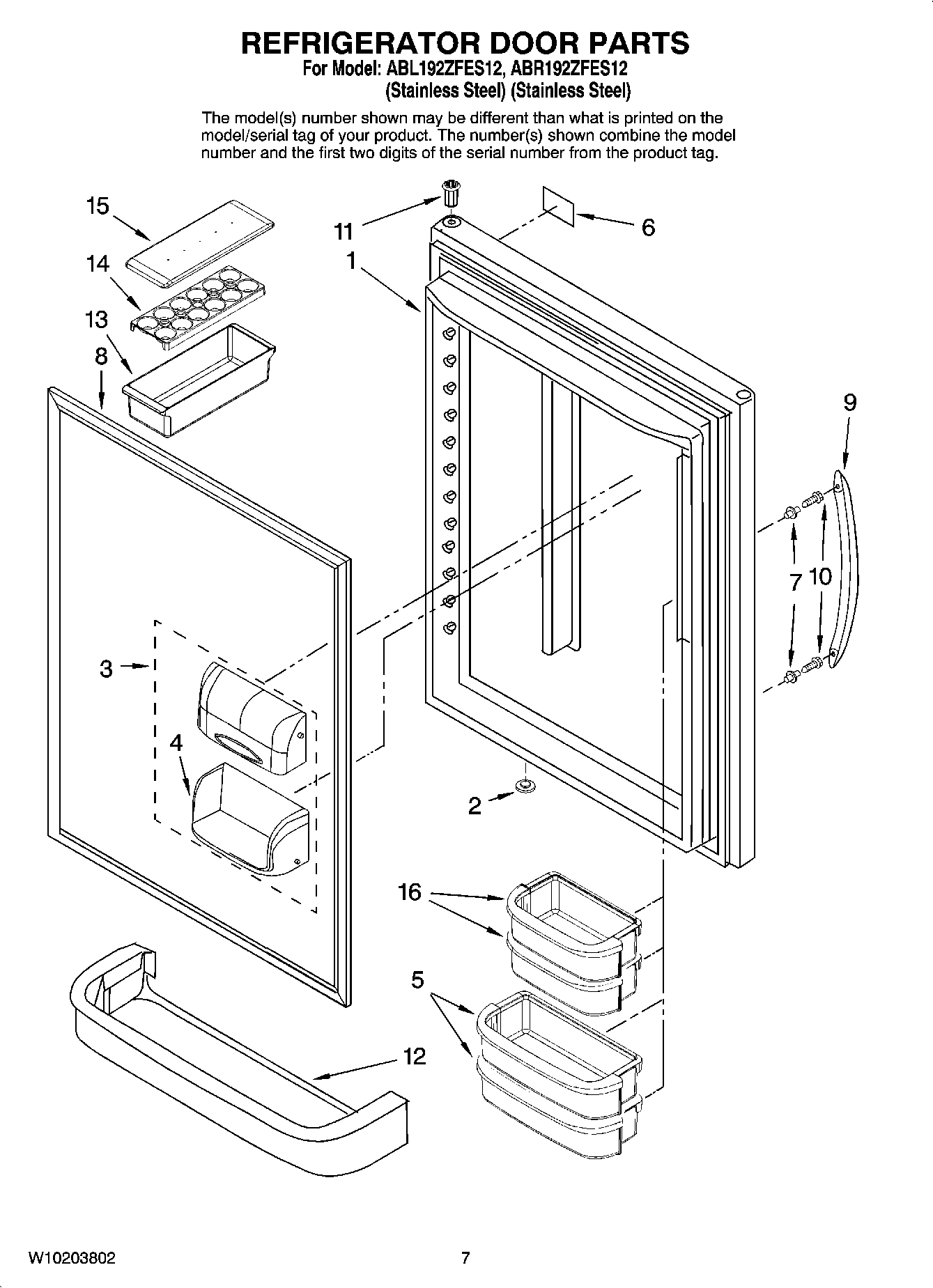

ABR192ZFES12 04 – REFRIGERATOR DOOR PARTS

ABR192ZFES12 04 – REFRIGERATOR DOOR PARTS

Written by

in

ABR192ZFES12 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY W10203482
1Refrigerator Door (w/ Insulation) Stainless Steel (Right)
267004838 Whirlpool Refrigerator Button Vent Plug
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WP67001021 Whirlpool Refrigerator Bucket
6STAINLESS
7WP67006113 Whirlpool Stud Bolt
8Gasket, Door Magnetic (Black)
9MAY W10159105
10WP3387230 Whirlpool Screw
1167004978 Whirlpool Refrigerator Black Door Bushing
1267001139 Whirlpool Refrigerator Shelf Trim
13MAY 10423131
14MAY 10436506
15MAY 10436404
1667001141 Whirlpool Refrigerator Small Bucket Door
