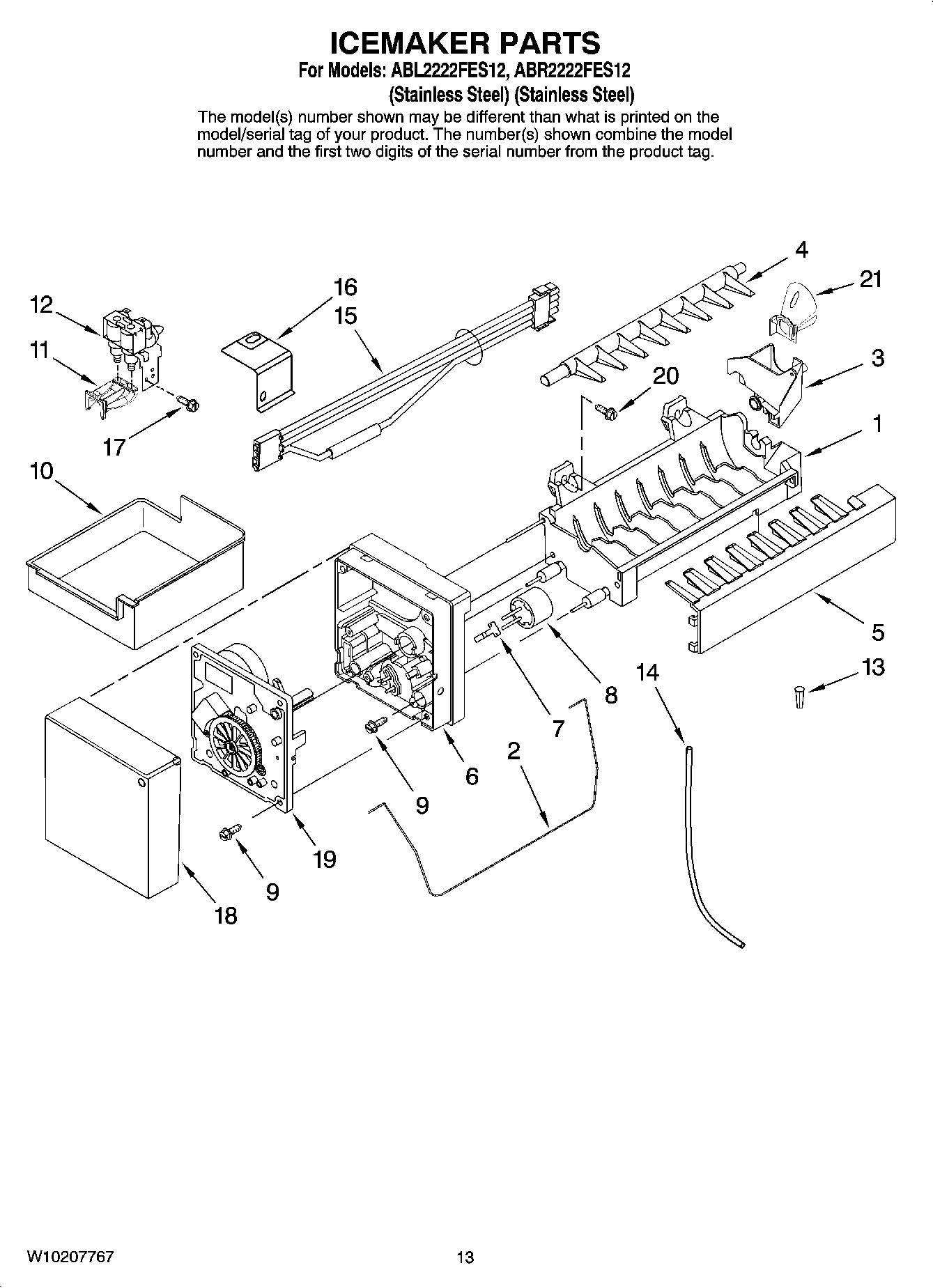

ABR2222FES12 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

ABR2222FES12 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

ABR2222FES12 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
NIPAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NIPAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
NIMAY 479502
NIMAY 503695
NIMAY 505587
NIMAY 542638
NIMAY 542639
NIKit, Evaporator Repair (Aluminum Epoxy)
NIMAY 833938
NISEALER, GUM (4 FEET)
NIMAY 1117510
NIPAINT, SPRAY (WHITE PRIMER)
NICleaner, Stainless Steel
NIPAINT, TOUCH-UP (1/2OZ. WHITE)
NIPAINT, TOUCH-UP (1/2OZ. BLACK)
NIPAINT, BULK (1 QT. WHITE (UNCUT))
2ARM-SHUT
3Cup, Fill
4MAY 627843
5MAY 2182124
6Support & Motor Assembly
7MAY 2315522
9Screw (2)
10WP67001255 Whirlpool Ice Bucket
1112831101 Whirlpool Refrigerator Tube Clamp
12WP67006531 Whirlpool Water Inlet Valve
13MAY A3223101
14Tubing, Plastic
15HARNESS, ICEMAKER
16MAY 625910
17MAY 67006662
18WPW10289690 Whirlpool Ice Maker Cover
20WP98165 Whirlpool Screw
21MAY 67005603
1004396418 Whirlpool Ice Maker
