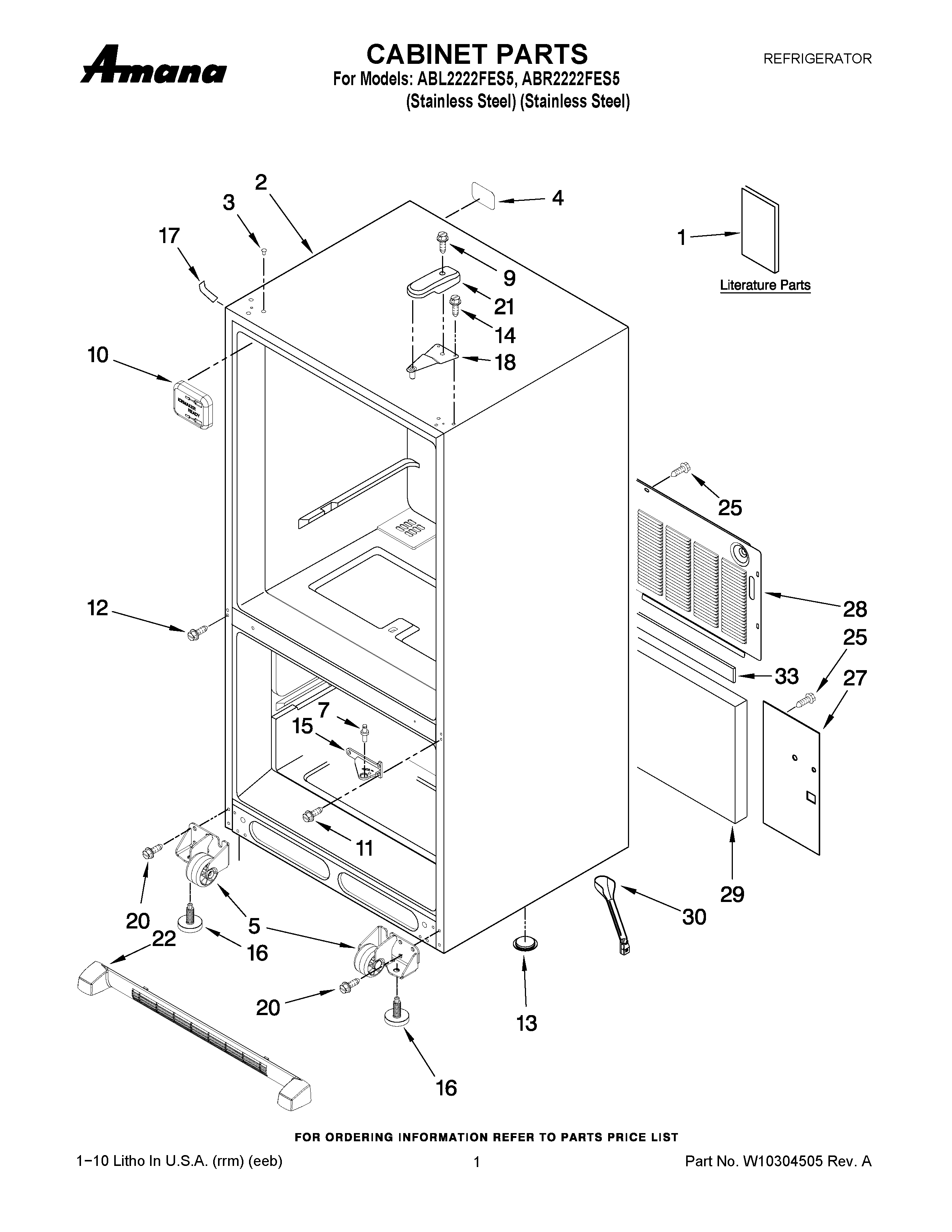

ABR2222FES5 01 – CABINET PARTS

ABR2222FES5 01 – CABINET PARTS

Written by

in

ABR2222FES5 01 – CABINET PARTS

Products

PositionProduct
1MAY W10184250
1MAY W10279329
1MAY W10175445
2LINER (NOT A SERVICEABLE PART)
3MAY M0310731
4LABEL-FILL TUBE
5ROLLER ASSY. (FRONT) (LEFT)
5ROLLER ASSY. (FRONT) (RIGHT)
7MAY 10351006
9MAY 12992602
10COVER-FILL TUBE
11SCREW (6)
12Screw (8)
13A3076901 Whirlpool Refrigerator Plug
14SCREW (6)
15MAY 12607104ED
16Brake, Foot
17COVER, CORNER (BLACK)
18MAY 12566606ED
20Screw (8)
21COVER, HINGE(BLACK)
22MAY W10236196
25SCREW (10)
27MAY W10217701
28MAY W10210979
29Insulation, Sound
30MAY W10210988
33MAY B5759655
