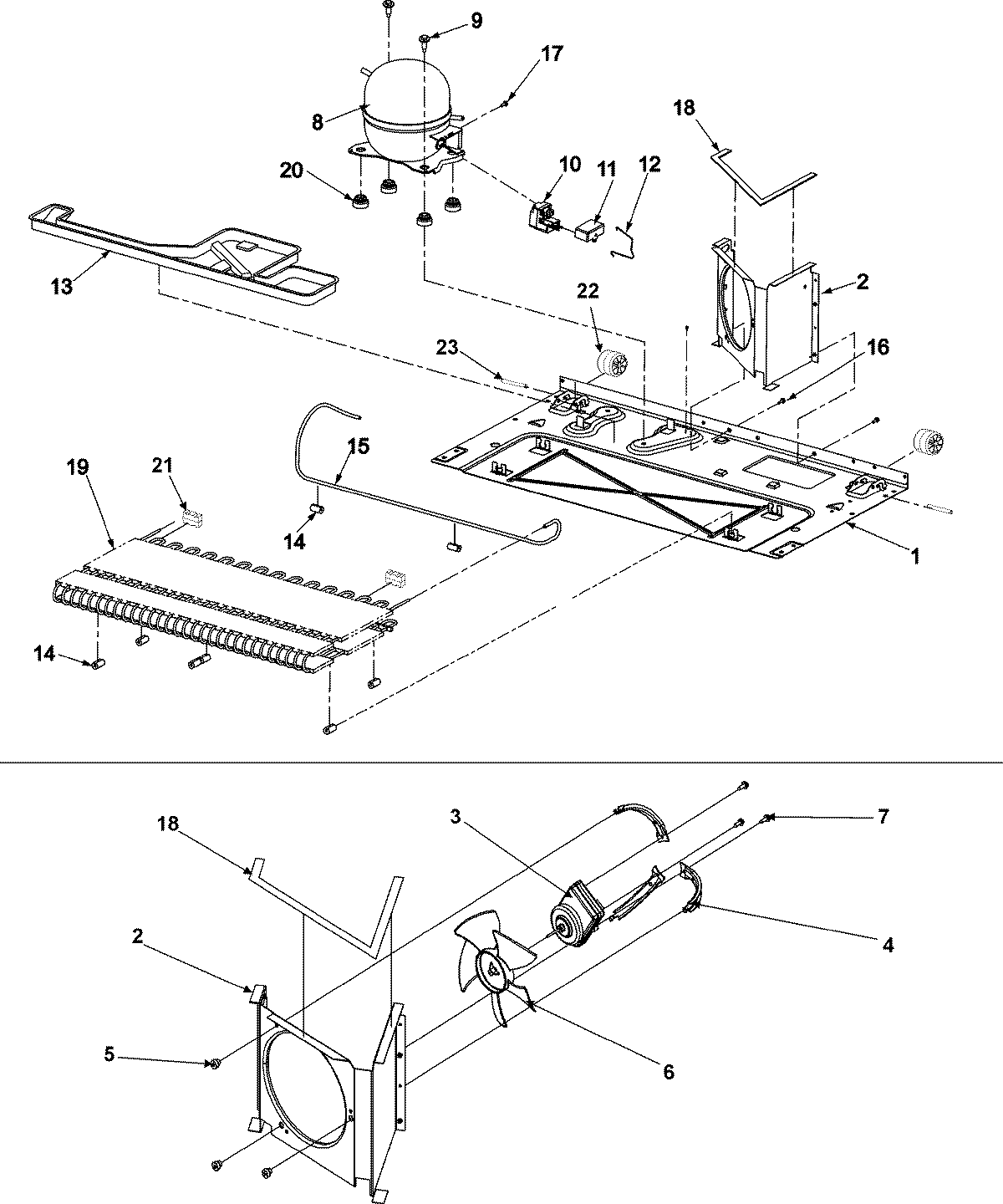

ABR2227FES 02 – COMPRESSOR

Products

Position	Product
1	BASEPAN, MACHINE COMPARTMENT
2	SHROUD, CONDENSER FAN
3	MAY 67004432
4	MAY 67004953
5	GROMMET, BRACKET
6	W10156818 Whirlpool Refrigerator Fan Blade
7	WP67004954 Whirlpool Refrigerator Screw
8	COMPRESSOR-TPG1370YXA(BM)
9	MAY 67006432
10	W10613606 Whirlpool Refrigerator Start Device Relay Overload
11	Capacitor
12	MAY 12576801
13	Drain Pan
14	67005680 Whirlpool Refrigerator Condenser Grommet
15	MAY 67004262
16	Screw (10)
17	MAY 67006433
18	WP854334 Whirlpool Air Conditioner Sealing Strip
19	WP67006132 Whirlpool Refrigerator Condenser
20	67003493 Whirlpool Refrigerator Compressor Grommet
