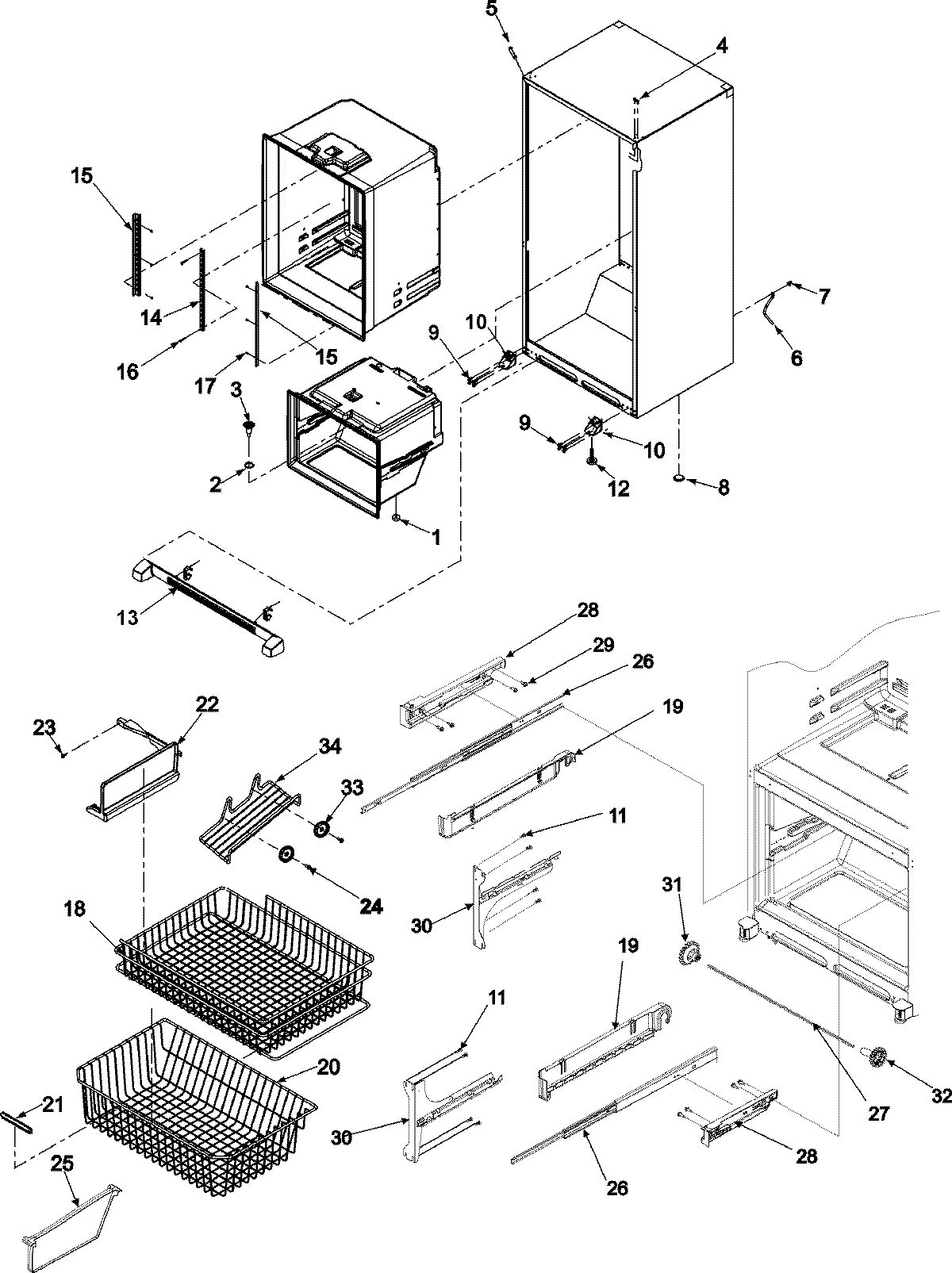

ABR2227FES 06 – INTERIOR CABINET & FREEZER SHELVING

ABR2227FES 06 – INTERIOR CABINET & FREEZER SHELVING

Written by

in

ABR2227FES 06 – INTERIOR CABINET & FREEZER SHELVING

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4MAY A4539607
567003485 Whirlpool Refrigerator Corner Cover (Black)
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9MAY 67006564
11MAY M0211018
12W11177593 Whirlpool Leveling Feet
13Clip, Grille
13WPW10534162 Whirlpool Refrigerator Front Grille
1467001073 Whirlpool Refrigerator Center Ladder
15LADDER, SIDES
16W10709795 Whirlpool Refrigerator Screw
17MAY 67006400
19WPW10280613 Whirlpool Refrigerator Bracket
19AWPW10280608 Whirlpool Refrigerator Bracket
20MAY 67006024
21HANDLE, BASKET/SHELF
22Divider, Upper Basket
23MAY 67006608
24WP67006908 Whirlpool Refrigerator Screw
25Divider, Lower Basket
26W11658402 Whirlpool Drawer Slide Rail
27SHAFT, RACK
28AADAPTER, SIDE (LT)
28ADAPTER, SIDE (RT)
29Screw (6)
30BRACKET, DRAWER SLIDE (RT)
30BRACKET, DRAWER SLIDE (LT)
31GEAR (LT)
32GEAR (RT)
33WP10972101 Whirlpool Refrigerator Spacer
34Rack, Ice
