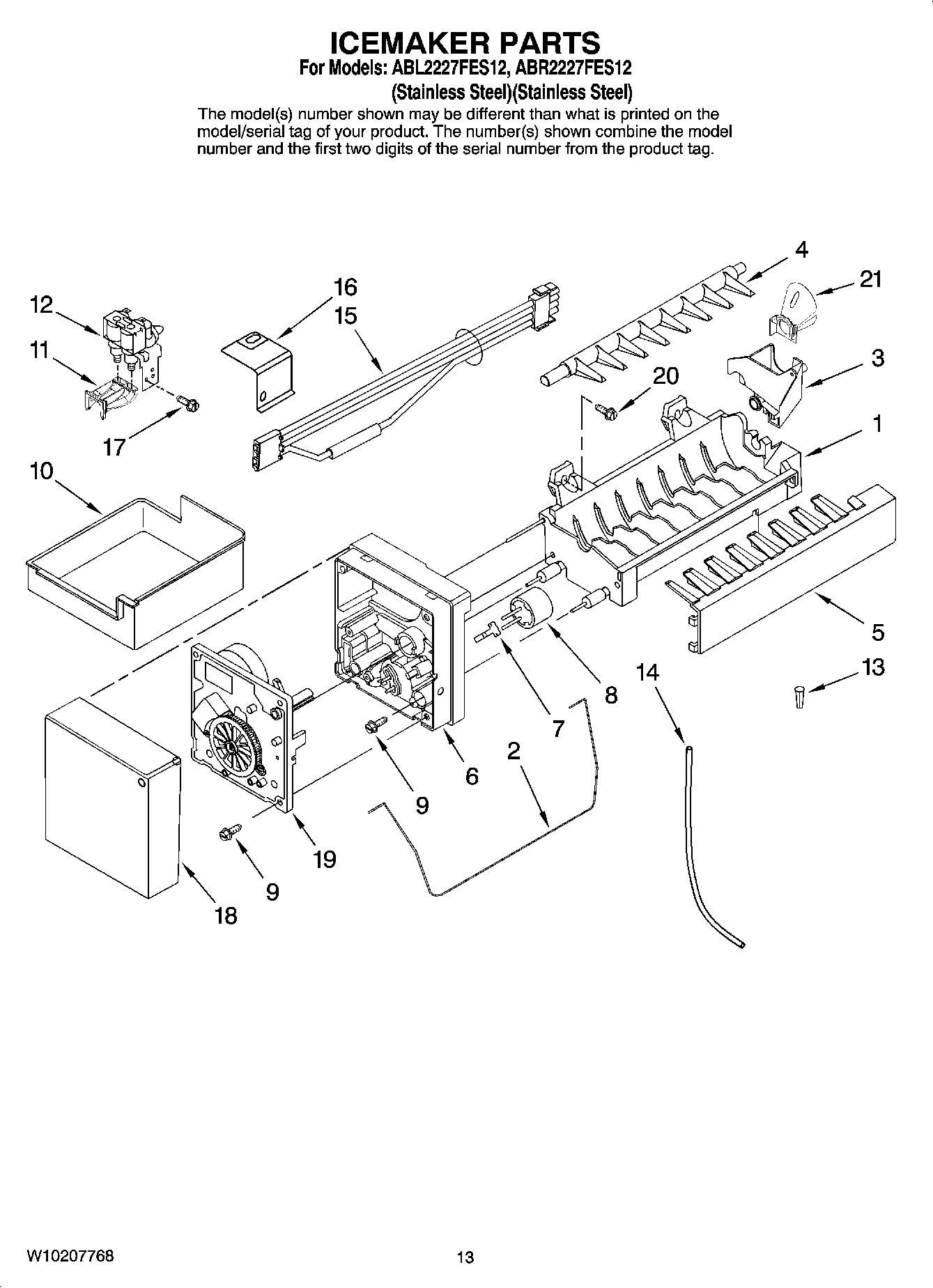

ABR2227FES12 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)admin2025-04-26T08:55:57+00:00ABR2227FES12 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)
Products
| Position | Product |
|---|
| NI | PAINT, PRESSURIZED SPRAY (12OZ. WHITE) |
| NI | PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) |
| NI | MAY 479502 |
| NI | MAY 503695 |
| NI | MAY 505587 |
| NI | MAY 542638 |
| NI | MAY 542639 |
| NI | Kit, Evaporator Repair (Aluminum Epoxy) |
| NI | MAY 833938 |
| NI | SEALER, GUM (4 FEET) |
| NI | MAY 1117510 |
| NI | PAINT, SPRAY (WHITE PRIMER) |
| NI | Cleaner, Stainless Steel |
| NI | PAINT, TOUCH-UP (1/2OZ. WHITE) |
| NI | PAINT, TOUCH-UP (1/2OZ. BLACK) |
| NI | PAINT, BULK (1 QT. WHITE (UNCUT)) |
| 2 | ARM-SHUT |
| 3 | Cup, Fill |
| 4 | MAY 627843 |
| 5 | MAY 2182124 |
| 6 | Support & Motor Assembly |
| 7 | MAY 2315522 |
| 9 | Screw (2) |
| 10 | WP67001255 Whirlpool Ice Bucket |
| 11 | 12831101 Whirlpool Refrigerator Tube Clamp |
| 12 | WP67006531 Whirlpool Water Inlet Valve |
| 13 | MAY A3223101 |
| 14 | Tubing, Plastic |
| 15 | HARNESS, ICEMAKER |
| 16 | MAY 625910 |
| 17 | MAY 67006662 |
| 18 | WPW10289690 Whirlpool Ice Maker Cover |
| 20 | WP98165 Whirlpool Screw |
| 21 | MAY 67005603 |
| 100 | 4396418 Whirlpool Ice Maker |
