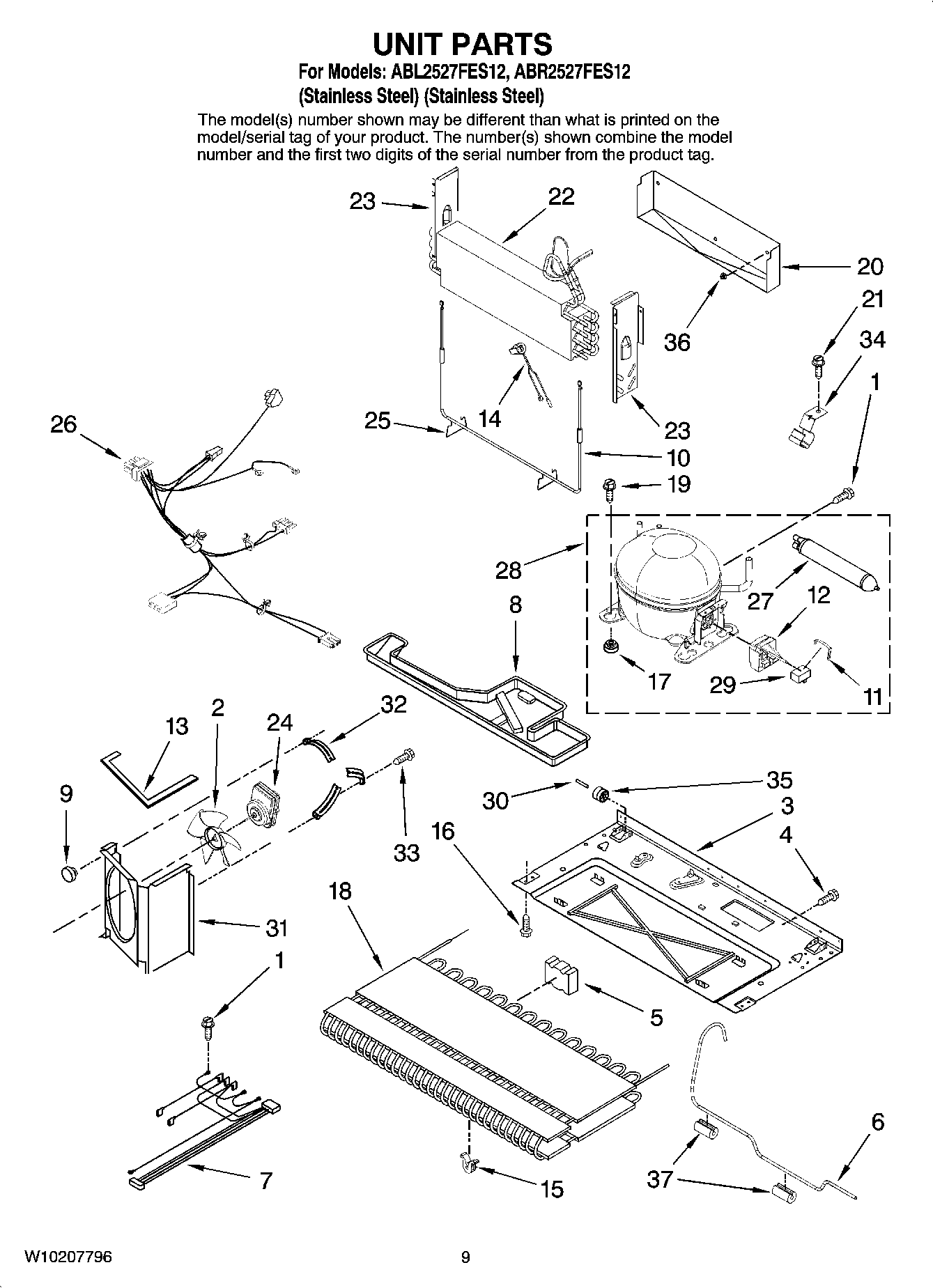

ABR2527FES12 06 – UNIT PARTS

ABR2527FES12 06 – UNIT PARTS

Written by

in

ABR2527FES12 06 – UNIT PARTS

Products

PositionProduct
NIVALVE, ACCESS (3/8“)
NIValve, Access (5/16“)
NIVALVE, ACCESS (1/4“)
NIMAY 876764
NIValve, Access (1/2“)
NIValve, Access (5/8“)
NIValve, Access (3/4“)
1MAY 67006433
2MAY W10162928
3MAY 67005889
4Screw (10)
5MAY 67005491
6MAY 67004700
7MAY W10119856
8WP12579803 Whirlpool Refrigerator Drain Pan
9GROMMET, BRACKET
10WP67002493 Whirlpool Refrigerator Defrost Heater
11MAY 67007052
12W10613606 Whirlpool Refrigerator Start Device Relay Overload
13WP854334 Whirlpool Air Conditioner Sealing Strip
14Thermostat
15GROMMET, COND (4)
16Screw (4)
17MAY W10169124
18WP67006131 Whirlpool Refrigerator Condenser
19MAY 67006432
20MAY 67002490
21SCREW
22MAY 67003720
23MAY 67001083
23MAY 67001084
24MAY 67004432
25W11673433 Whirlpool Clip
26Harness, Unit (Includes Cord)
27Drier
28COMPRESSOR-TPG1370YXA(BM)
29Capacitor
3067006434 Whirlpool Axle Pin
31Shroud, Condenser
32MAY 67004953
33WP67004954 Whirlpool Refrigerator Screw
34MAY 10547003
35WP67005149 Whirlpool Roller
36MAY 10623002
3767005680 Whirlpool Refrigerator Condenser Grommet
