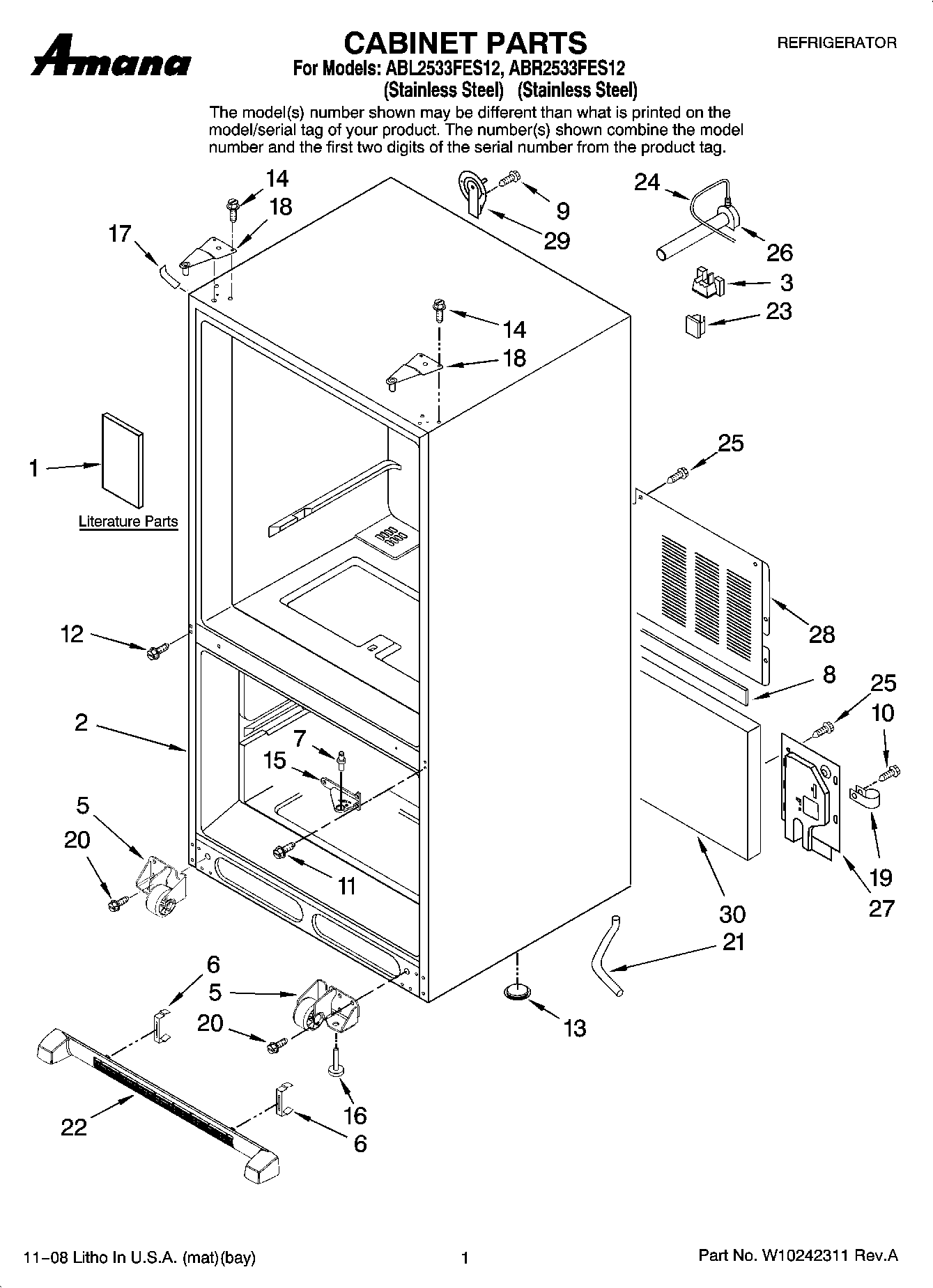

ABR2533FES12 01 – CABINET PARTS

Products

Position	Product
1	MAY W10123466
1	Use & Care Guide
1	SHEET, TECH DATA
3	WP12777701 Whirlpool Refrigerator Filler Block
5	Roller Assy.(Rear)
6	Clip, Grille
7	WP67006642 Whirlpool Refrigerator Pin
8	Gasket
9	WP98165 Whirlpool Screw
10	SCREW
11	WP67006380 Whirlpool Screw
12	Screw (8)
13	A3076901 Whirlpool Refrigerator Plug
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607104ED Whirlpool Refrigerator Door Hinge
16	W11177593 Whirlpool Leveling Feet
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	Hinge, Top
19	67001067 Whirlpool Refrigerator Drain Tube Clip
20	MAY 67006564
21	MAY 67001066
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23	67002816 Whirlpool Refrigerator Waterline Clip
24	Tubing, Plastic
25	Screw (10)
26	MAY W10137519
27	MAY 67004098
28	MAY 67006101
29	COVER, WATER LINE
30	67003796 Whirlpool Refrigerator Fiber Acoustic
