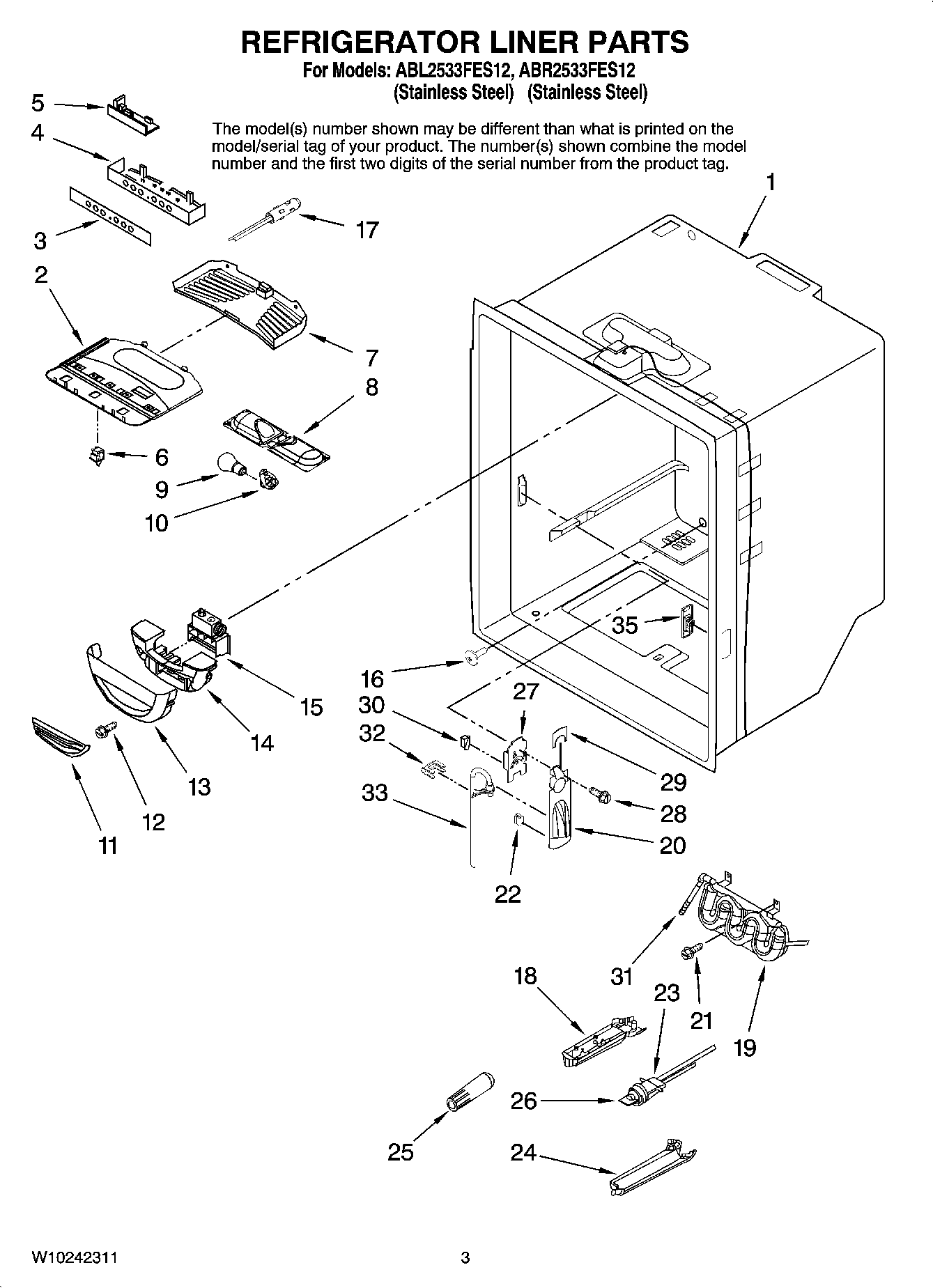

ABR2533FES12 02 – REFRIGERATOR LINER PARTS

ABR2533FES12 02 – REFRIGERATOR LINER PARTS

Written by

in

ABR2533FES12 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIW11619328 Whirlpool Wire Harness
3Overlay
4WPW10464769 Whirlpool Refrigerator Housing
5Board, Control
6Switch, Light (2)
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9RANGE ONLY 40W 120V APPL BULB
10Socket, Light (2)
1167003900 Whirlpool Refrigerator Insert Damper Cover
12MAY 67006602
13WP12806701 Whirlpool Refrigerator Box Cover
14MAY 67006604
15Control, Damper
16WP12246608 Whirlpool Refrigerator Button
1712002355 Whirlpool Refrigerator Thermistor Kit
18PLATE-FIL
19MAY W10153959
20MAY W10158503
21MAY 67006400
22Clip, Facade (2)
23WP67006524 Whirlpool Refrigerator Housing
24WP12568001 Whirlpool Filter Cover
25everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
26MAY 12664501
2712707303SP Whirlpool Refrigerator Plate
28Screw (6)
29W11519867 Whirlpool Refrigerator Cover
30WP12575501 Whirlpool Refrigerator Micro Switch
31WP2300868 Whirlpool Refrigerator Fitting
3267002816 Whirlpool Refrigerator Waterline Clip
33MAY 67003728
35COVER, CHILLER VENT
