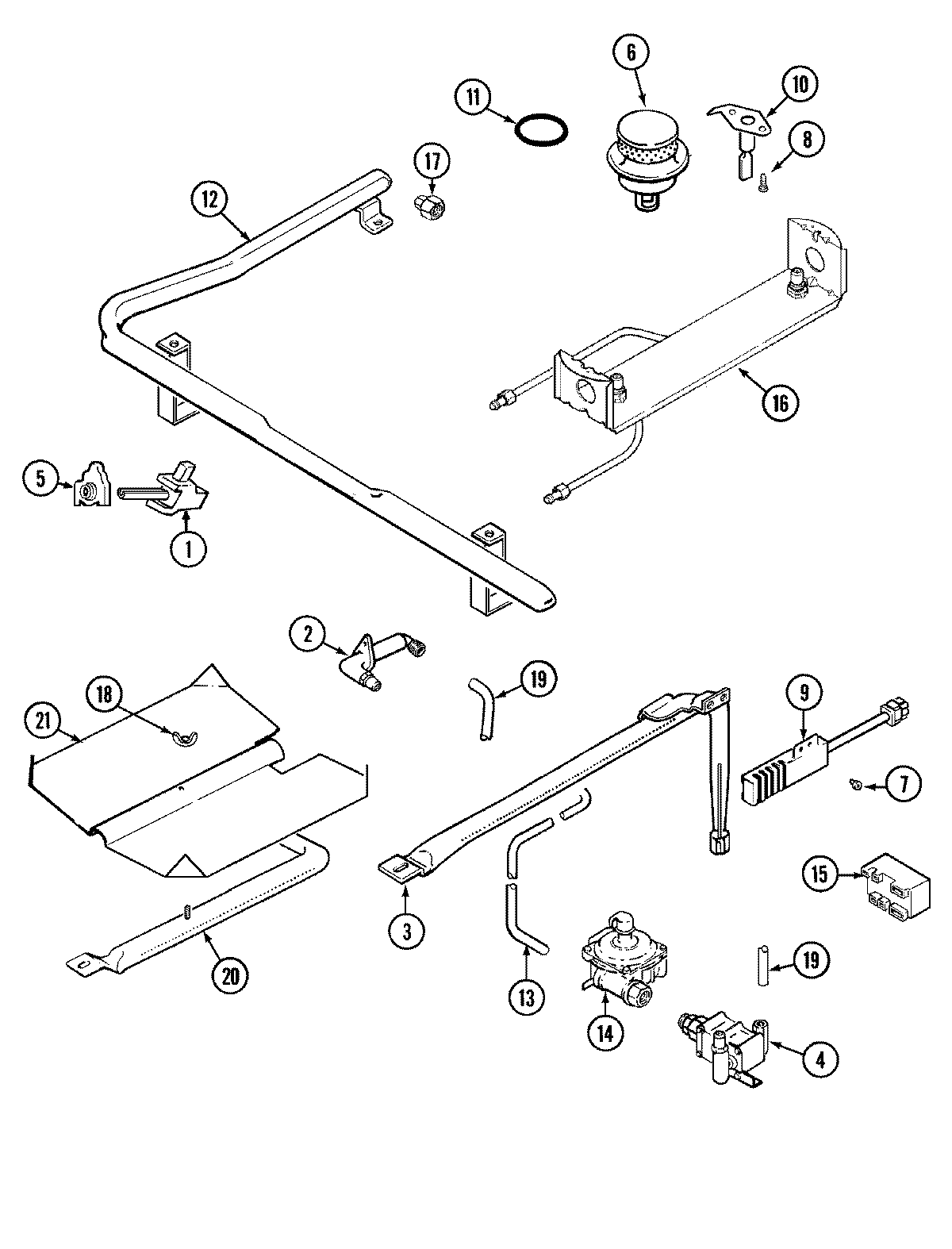

ABR3740AGW 04 – GAS CONTROLS

Products

Position	Product
NI	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
1	MAY 71003231
1	MAY 74003924
1	MAY 74004303
1	WP8273096 Whirlpool Screw
1	MAY 7101P044-60
2	MAY 3605F186-45
2	MAY 7507P088-60
3	MAY 3403D043-45
3	MAY 3807F446-45
4	WP74006427 Whirlpool Oven Valve
5	MAY 74002533
5	WP7403P279-60 Whirlpool Igniter Switch
5	MAY 74004986
6	MAY 3412D018-26
7	WP3351614 Whirlpool Screw
8	MAY 7101P315-60
9	MAY 7432P076-60
9	MAY 4005F421-45
11	MAY 74002745
12	MAY 74003504
12	MAY 74005681
13	MAY 3414F103-44
14	WP74006429 Whirlpool Regulator
15	MAY 74003288
16	MAY 74004016
16	MAY 74004015
17	MAY 7103P130-60
18	NUT, WING
19	MAY 3414F102-44
19	MAY 1555258K
20	MAY 3403D024-45
21	MAY 3601F217-47
