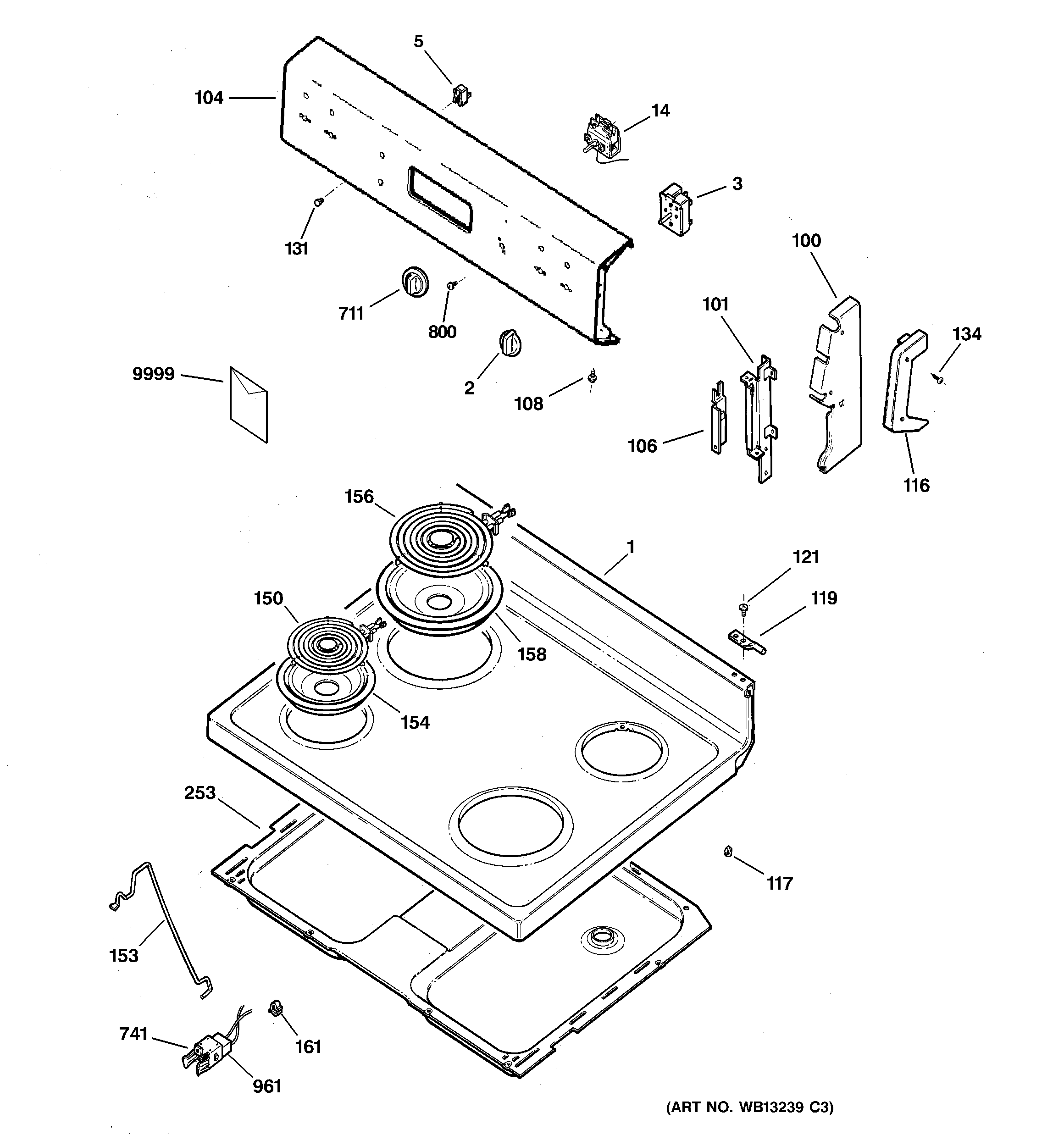

ABS200P1WW CONTROL PANEL & COOKTOP

ABS200P1WW CONTROL PANEL & COOKTOP

Written by

in

ABS200P1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10083 GE Oven White Cooktop O/S1
1WB62K10086 GE Oven Control Thermostat
2WB03T10076 GE Oven Knob
2WB03T10072 GE Oven Burner Knob
3WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
3WB24T10022 GE Oven Infinite Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
14WB20K10026 GE Oven Thermostat
14WB02K10070 GE Oven Thermostat Carton Cover
100GEN WB07K10022
100GEN WB07K10002
100GEN WB07K10001
100GEN WB07K10023
101GEN WB37K0018
101GEN WB37K0017
104GEN WB36K10865
104GEN WB36K10866
106GEN WB10K10002
106GEN WB10K10001
108GEN WB01X5874
108GEN WB01X5716
108WB1X5364 GE Oven Mounting Screw
116WB07K10007 GE Oven Endcap Left
116WB07K10005 GE Oven Right Endcap
116WB07K10003 GE Oven Right Black Endcap
116GEN WB07K10004
117WB02K10075 GE Oven Plastic Nail
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
131WB25T10041 GE Oven Lens
134GEN WB01K10003
134GEN WB01K10004
150WB30K10002 GE Stove Range Oven Cooktop Burner Surface Unit 6"
153WB02K10026 GE Oven Rod Support
154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
154WB31T10014 GE Oven 6-Inch Black Drip Bowl
156WB30K10021 GE Oven 8" Surface Unit Assembly
158WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
158WB31T10015 8" BOWL BLACK REAR BUBBLE
161CLIP WIRE
253WB64K10009 GE Oven Cooktop Box
711GEN WB03K10205
711WB03K10181 GE Oven Thermostat Knob Assembly
741WB02K10133 GE Oven Receptacle Clip
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 49-88041
9999GEN 31-21416
9999WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
9999GEN 31-21072
