ABS300K2BB CONTROL PANEL & COOKTOP

ABS300K2BB CONTROL PANEL & COOKTOP

Written by

in

ABS300K2BB CONTROL PANEL & COOKTOP

Products

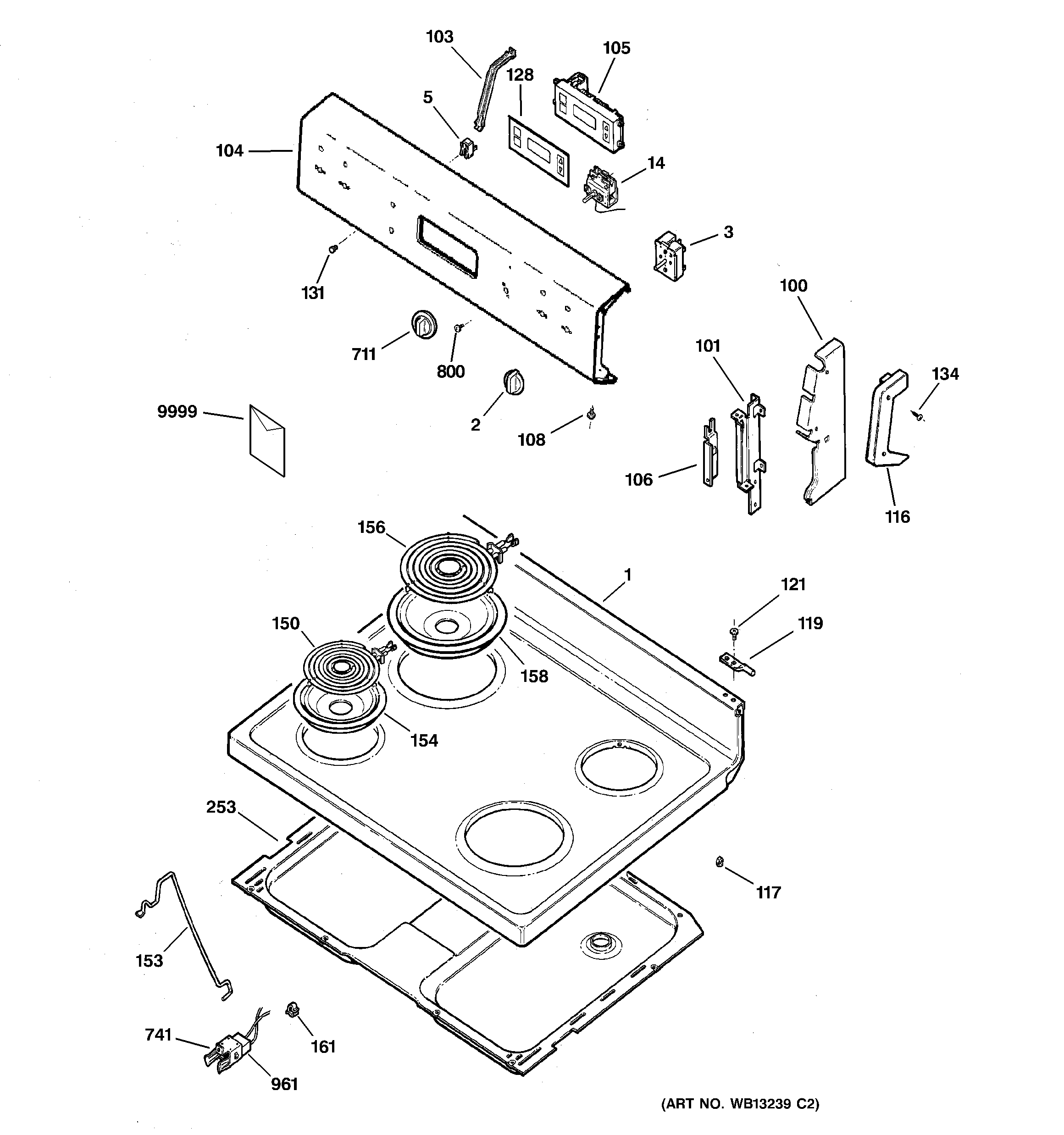

PositionProduct
1WB62K10086 GE Oven Control Thermostat
2WB03T10072 GE Oven Burner Knob
3WB24T10022 GE Oven Infinite Switch
3WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
14WB20K10004 GE Stove Range Oven Thermostat
14CLIP THERMOMSTAT
100GEN WB07K10022
100GEN WB07K10023
101GEN WB37K0018
101GEN WB37K0017
103GEN WB02K10027
104GEN WB36K10579
105WB27T10469 GE Oven Timer Control Board
106GEN WB10K10001
106GEN WB10K10002
108GEN WB01X5716
108WB1X5364 GE Oven Mounting Screw
116WB07K10003 GE Oven Right Black Endcap
116GEN WB07K10004
117GEN WB02K0017
117WB02K10075 GE Oven Plastic Nail
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128GEN WB27K10200
131WB25T10041 GE Oven Lens
134GEN WB01K10003
150WB30K10002 GE Stove Range Oven Cooktop Burner Surface Unit 6"
153WB02K10026 GE Oven Rod Support
154WB31T10014 GE Oven 6-Inch Black Drip Bowl
156WB30K10003 GE Range Stove Cooktop Burner Surface Unit 8"
158WB31T10015 8" BOWL BLACK REAR BUBBLE
161CLIP WIRE
253WB64K10009 GE Oven Cooktop Box
711GEN WB03K10205
741WB02K10133 GE Oven Receptacle Clip
800WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 31-10781
9999GEN 49-88036
9999GEN 31-10831
9999GEN 31-21145
