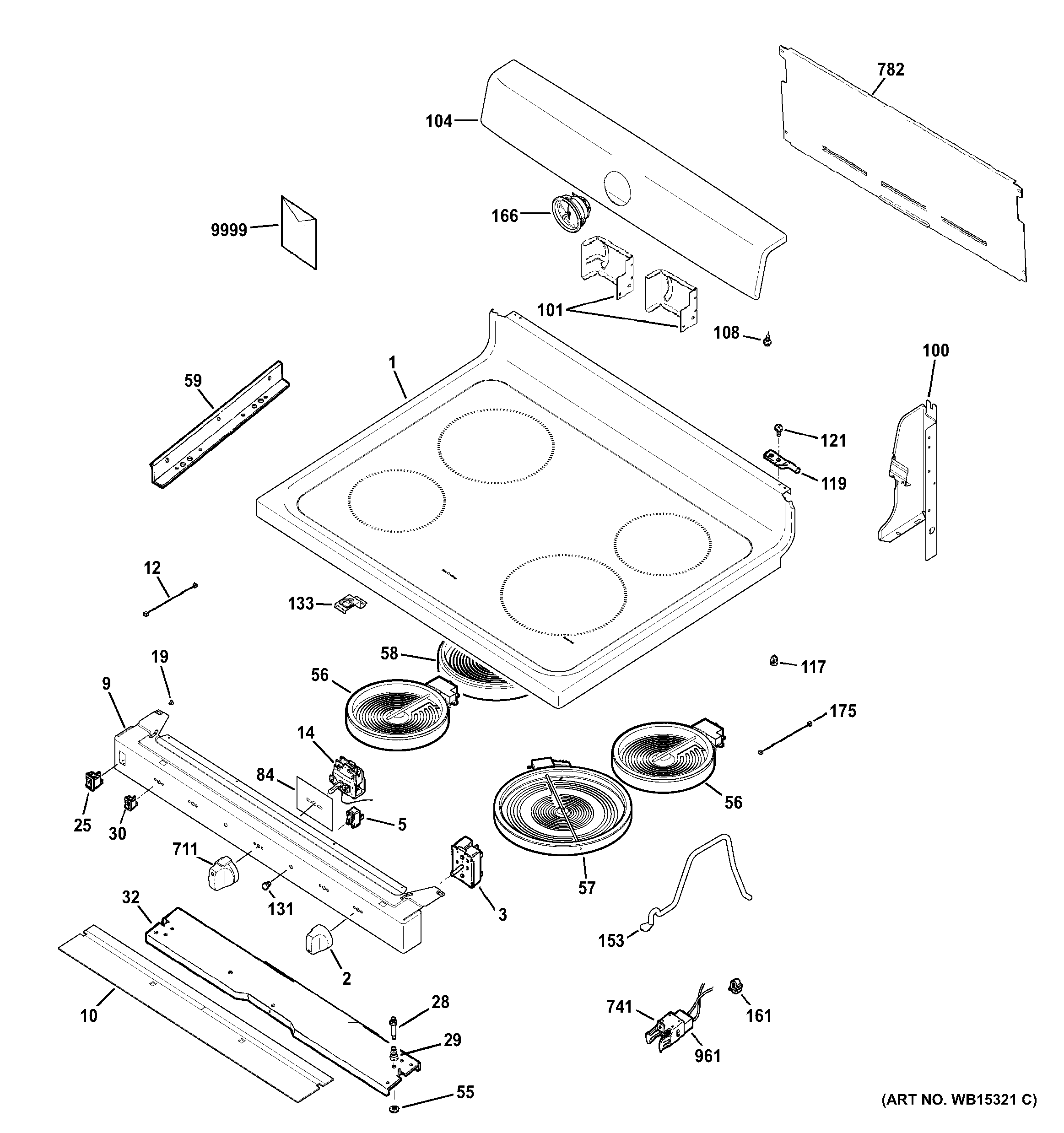

ABS45DF1BS CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62X20647 GE Range Top Glass Assembly
2GEN WB03X20671
3WB24T10029 GE Oven Infinite Burner Switch
3WB24T10025 SWITCH INFIN(2500W)
3WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
9WB36X20663 GE Manifold Panel
10WB35X20648 GE Oven Insulation Burner Box
12WB18X20678 GE Range Wire Harness
12WB18X20679 GE Wire Harness
14WB24X21192 GE Oven Electric Thermostat
19WB1K8 GE Oven Thermostat Screw
25WB24X20458 GE Range Rocker Switch
28GEN WB02X8377
30WB27T10668 GE Oven Light Indicator
32WB02K10045 GE Bottom Heater Support
55GEN WB02X8323
56WB30X38928 GE Surface 6" Radiant Element
57WB30T10136 GE Oven 8" Halogen Element
58WB30X26465 GE Oven 8" Halogen Element
59WB02K10046 GE Oven Side Heater Brace
84CARTON COVER THERMOSTAT
100WB07X20658 GE Ran Left End Support
100END SUPPORT RIGHT
101WB37K10016 GE Cooktop Left Bracket
101WB37K10015 GE Right Cooktop Bracket
104WB36X20661 GE Manifold Panel
108GEN WB01X5716
108WB01T10016 GE Oven Screw 8-18 AB Hex
117WB14K10004 GE Oven Pin Locator
119WB14K5 GE Oven Hinge Pin
131WB25T10041 GE Oven Lens
133GEN WB02X21083
153WB02X21082 GE Range Support Rod
166CLOCK
175WB18X21081 GE Screw
711WB03X20673 GE Range Stainless Steel Knob
782WB34K10068 GE Back Cover
9999WB49X21392 GE Oven Hinge Service Kit
9999GEN 31-17082
9999GEN 31-10892
9999GEN 49-88056
