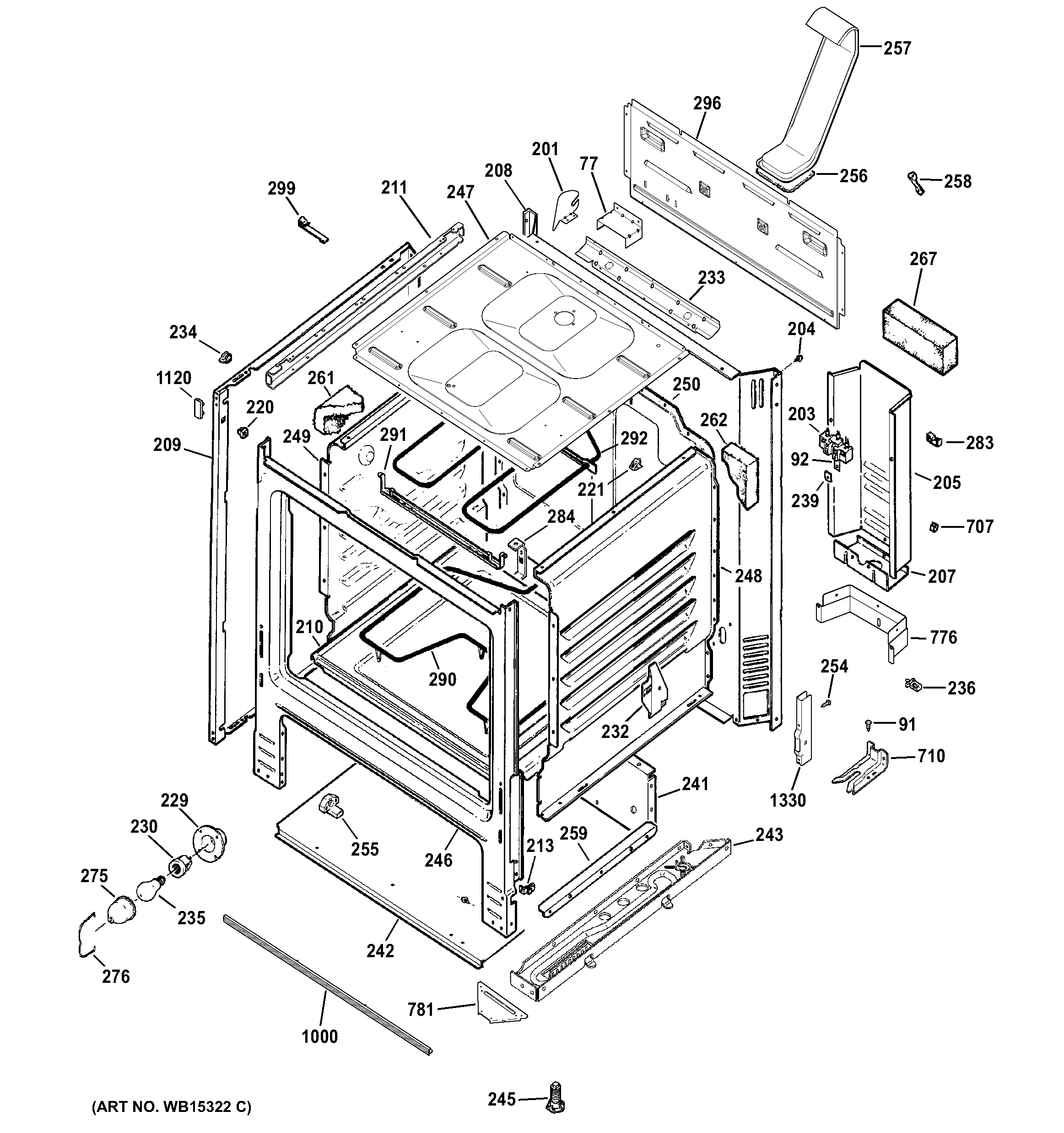

ABS45DF1WS BODY PARTS

ABS45DF1WS BODY PARTS

Written by

in

ABS45DF1WS BODY PARTS

Products

PositionProduct
77GEN WB34X21090
91WB01T10008 GE Oven Screw 10-32
92WB1X1261 GE Oven Screw
201BACKGUARD DEFLECTOR
203WB17T10011 GE Oven Terminal Block
204WB1X536 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
205WB34K10029 GE Oven Guard Terminal
207WB02K10029 GE Oven Mounting Terminal Bracket
208RANGE BACK
209WB63K10122 GE Oven Side Panel
210WB63K10105 GE Range Oven Bottom
211GEN WB63K10199
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221WB02K10073 GE Oven Clip Capillary
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
232GEN WB34K0003
232GEN WB34K0004
233GEN WB34X21088
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
236WB02K10068 GE Wire Clip
239PLATE GROUND
241WB63K10030 GE Rear Broil Panel
242GUARD INSULATION BOTTOM
243WB63K10233 GE Oven Support Base
243WB63K10232 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
246FRAME WELD ASM
247GEN WB63X20645
248WB63K10244 GE Oven Right Side Rack
249WB63K10245 GE Oven Left Side Ran
250WB63K10007 GE Oven Back
254GEN WB01K0053
255WB02K10163 GE Oven Drawer Support
256WB35K10019 GE Vent Gasket
257GEN WB34X20665
258WB02K10040 GE Oven Vent Bracket
259WB39K16 GE Oven Drawer Rail
261WB35K10108 GE Oven Insulation Wrap
262WB35K10107 GE Back Oven Insulation
267WB02K10038 GE Corner Brace
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
283WB02X21679 GE Oven Wire Clip
284GEN WB02K10055
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
296WB34X20669 GE Back Cover Assembly
299GEN WB02K0038
707WB02K10267 GE Wire Clip
710GEN WB02K10386
776WB34K10054 GE Terminal Comp Guard
781GEN WB02K10054
1000GEN WB04K10024
1120WB02K10179 GE Range Bumper
1330WB10X20220 GE Oven Receiver Hinge
