ABS45DF1WS DOOR & DRAWER PARTS

ABS45DF1WS DOOR & DRAWER PARTS

Written by

in

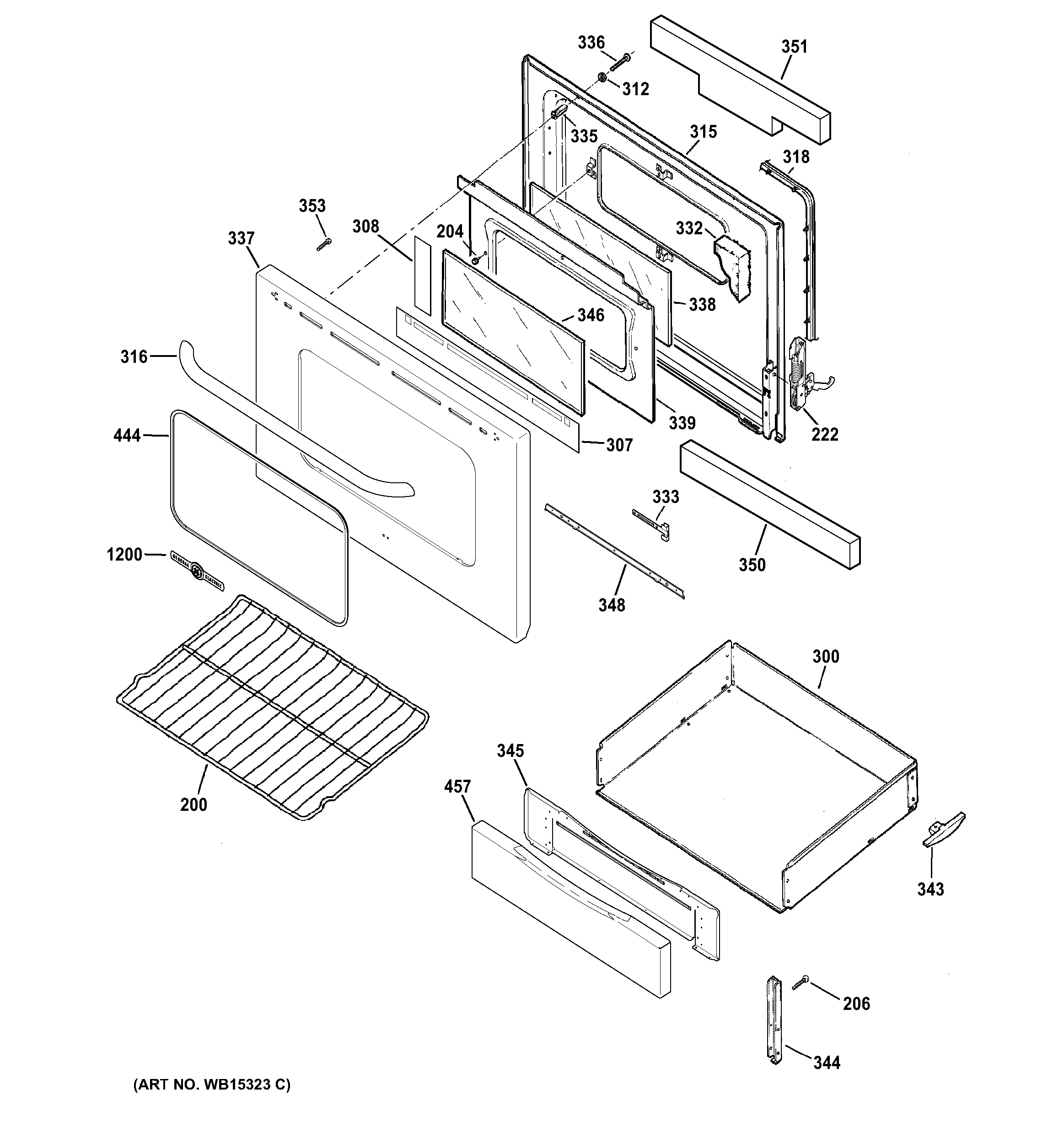

ABS45DF1WS DOOR & DRAWER PARTS

Products

PositionProduct
200OVEN RACK
204WB1K5062 GE Oven Screw
204WB1X536 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
206WB01K10091 GE Oven Screw
222WB10X21979 GE Oven Door Hinge
300WB58K10015 GE Oven Drawer Body
307WB35X21084 GE Door Foil
308WB35X21085 GE Door Foil
312WB1X119D GE Oven Range Washer
315WB56X20206 GE Range Door Panel
316HANDLE
318WB35X29720 GE Oven Door Gasket
332WB35K10146 GE Door Side Insulation
333BRACKET GLASS
335WB02K10161 GE Oven Spacer
336WB01K10074 GE Oven Screw 10-32 TT PNT
337WB56X20674 GE Door Panel
338WB56X20654 GE Oven Crystal Window
339WB56K10033 GE Oven Insulation Guard
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345WB55K10068 GE Oven Drawer Liner
346WB56X20655 GE Oven Crystal Window
348WB02X20682 GE Oven Crystal Clip
350WB35K10147 GE Oven Bottom Insulation Door
351WB35K10148 GE Oven Door Top Insulation
353WB01K10012 GE Oven Screw 8-22 PL 1HX
444WB56X20683 GE Glass Trim
457WB36X20653 GE Drawer Panel
1200WR04X20207 GE Refrigerator Badge Assembly
