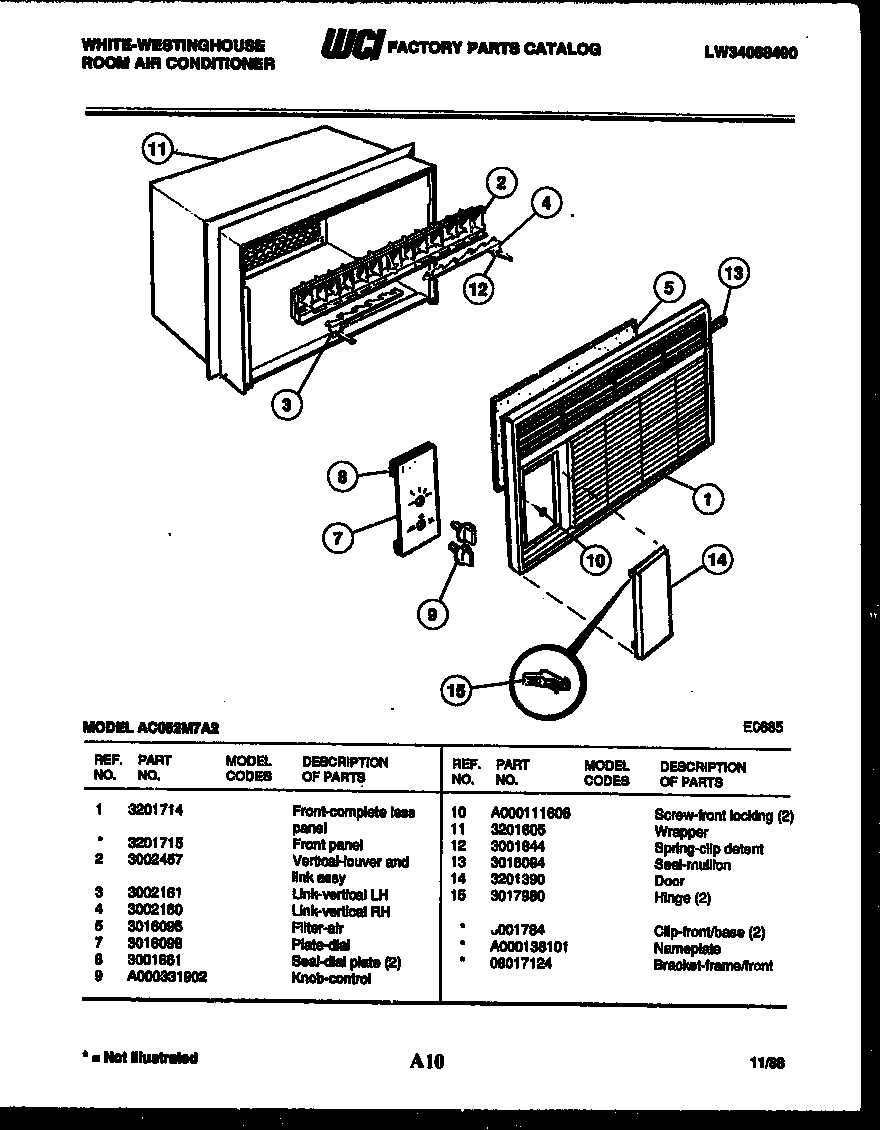

AC052M7A2 02 – CABINET PARTS

Written by

Products

Position	Product
*27144	BRACKET-FRONT, (NON-ILLUSTRATED)
*27143	WCI A000138101
*27141	CLIP-FRONT TO BASE
1A	WCI 3201715
1	WCI 3201714
2	VERTICAL LOUVER & LINK ASSY
3	LINK-VERT LOUVER LH
4	LINK-VERT LOUVER RH
5	WCI 3016095
7	WCI 3016098
8	WCI 3001861
9	WCI A000331902
10	SCREW – FRONT
11	WCI 3201605
12	CLIP-DETENT
13	WCI 3016094
14	WCI 3201390
15	WCI 3017980
