AC057N7A1 02 – CABINET, FRONT, WRAPPER – Aparts

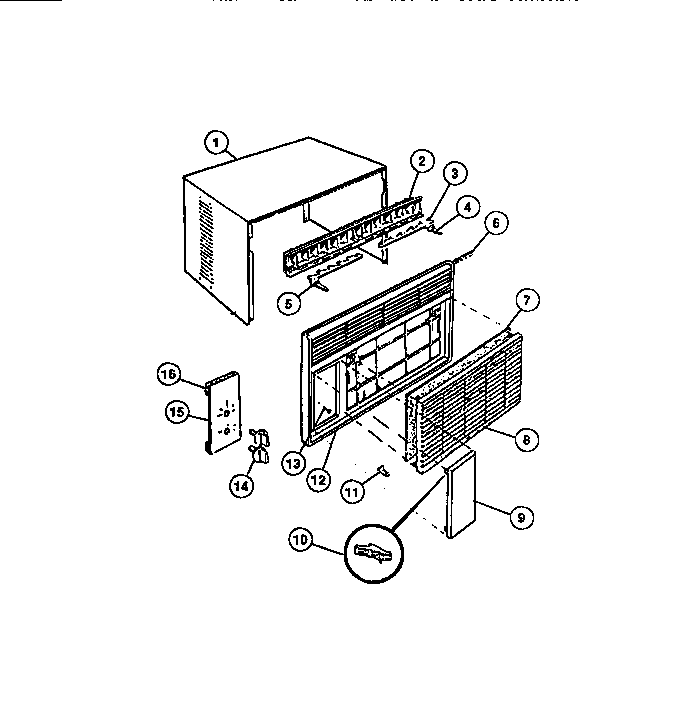

AC057N7A1 02 – CABINET, FRONT, WRAPPER

Products

Position	Product
1	WRAPPER
2	VERTICAL LOUVER & LINK ASSY
3	LINK-VERTICAL LOUVER RH
4	WCI 5303001840
5	LINK VERTICAL LOUVER LH
6	WCI 3016094
7	FILTER
8	PANEL
9	WCI 5303201354
10	HINGE - DOOR
11	WCI 5303001784
12	WCI 3016097
13	SCREW-FRONT
14	WCI 5300331902
15	WCI 3016098
16	SEAL-DIAL PLATE
