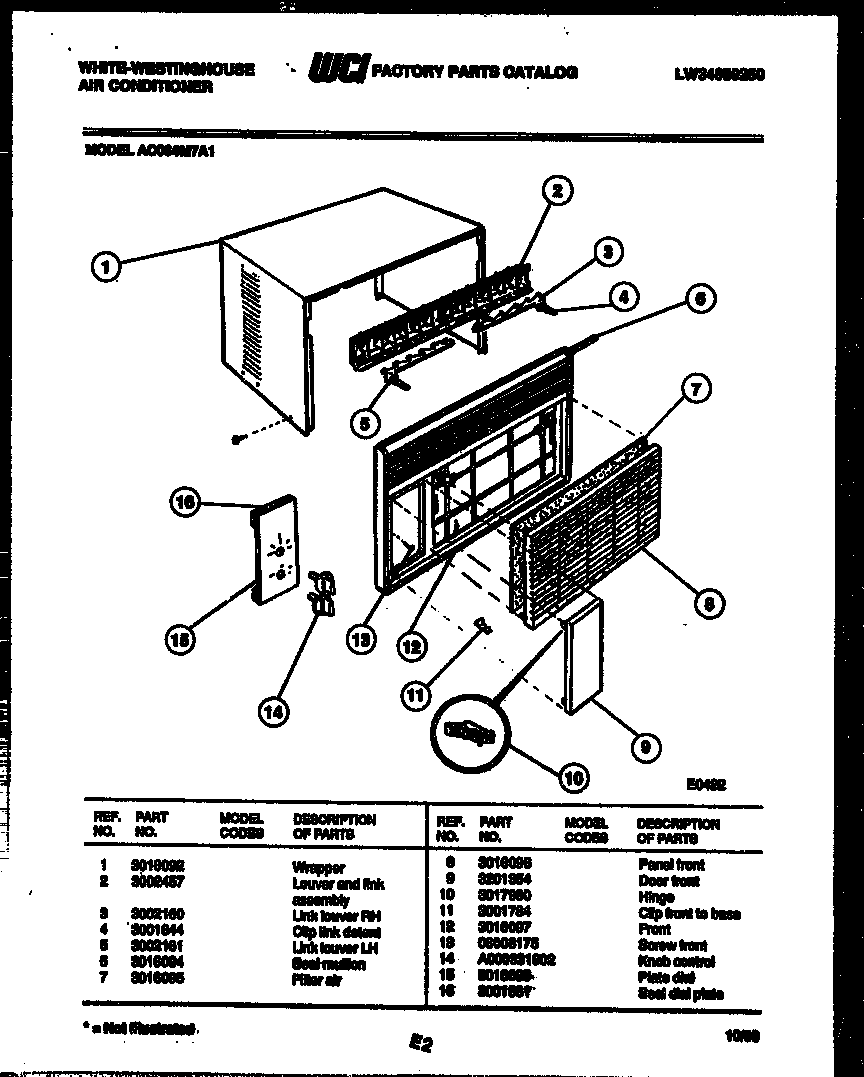

AC064M7A1 02 – CABINET PARTS

AC064M7A1 02 – CABINET PARTS

Written by

in

AC064M7A1 02 – CABINET PARTS

Products

PositionProduct
1WRAPPER
2VERTICAL LOUVER & LINK ASSY
3LINK-VERT LOUVER RH
4CLIP-DETENT
5LINK-VERT LOUVER LH
6WCI 3016094
7WCI 3016095
8PANEL
9WCI 3201354
10WCI 3017980
11CLIP-FRONT TO BASE
12WCI 3016097
13SCREW-FRONT
14WCI A000331902
15WCI 3016098
16WCI 3001861
