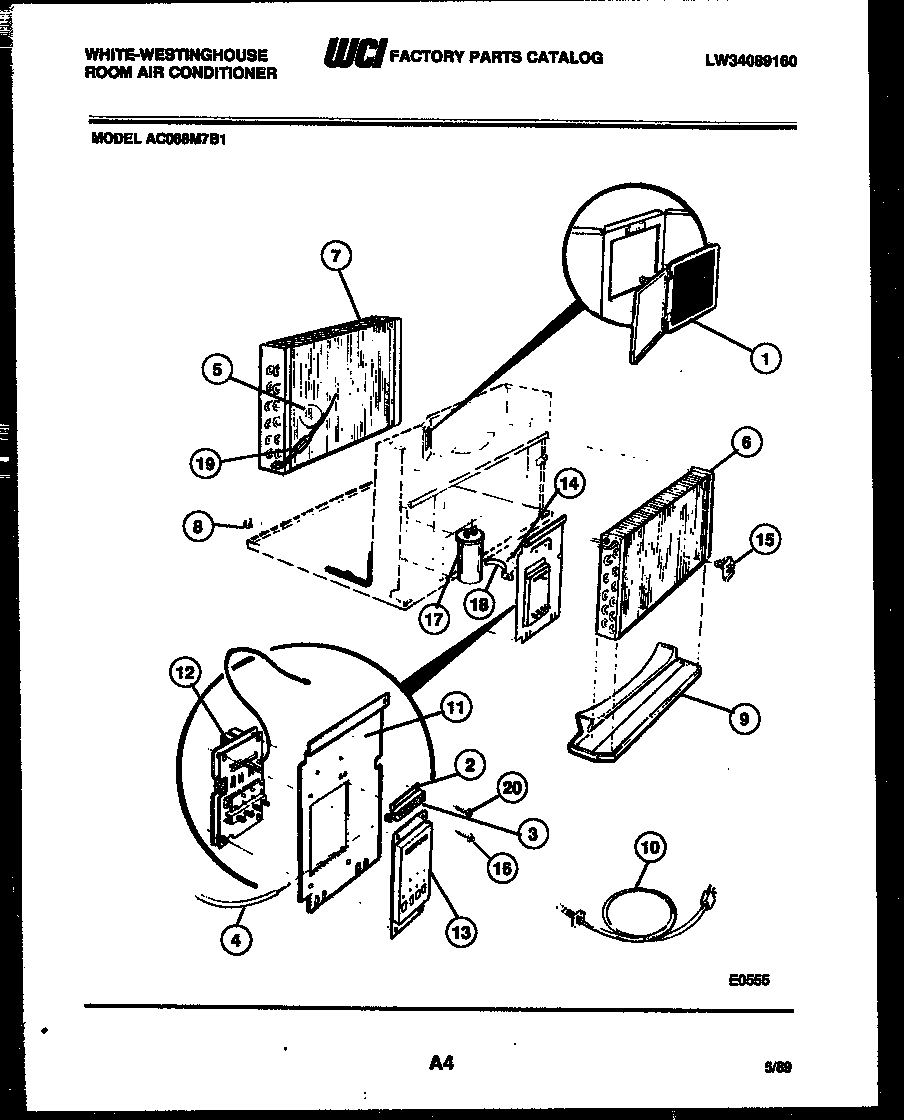

AC088M7B1 03 – ELECTRICAL PARTS

Products

Position	Product
1	WCI 3012455
2	WCI 3001848
3	ARM-ACTUATER (NON-ILLUSTRATED)
4	CABLE-DOOR VENT
5	CAPILLARY TUBE
6	WCI 3203074
7	WCI 3018681
8	WCI 08002941
9	WCI 08017202
10	WCI 3002376
11	WCI 3016111
12A	HOUSING-RECEPTACLE
12	WCI 08017193
13	WCI 08017139
14	SCREW CAPACITOR
15	WCI 3204838
15A	WCI A310003
16	WCI 08016220
17	CAPACITOR-DUAL
18	STRAP-CAPACITOR
19	5300265301 Frigidaire Air Conditioner P1 Filter Drier
20	SCREW
