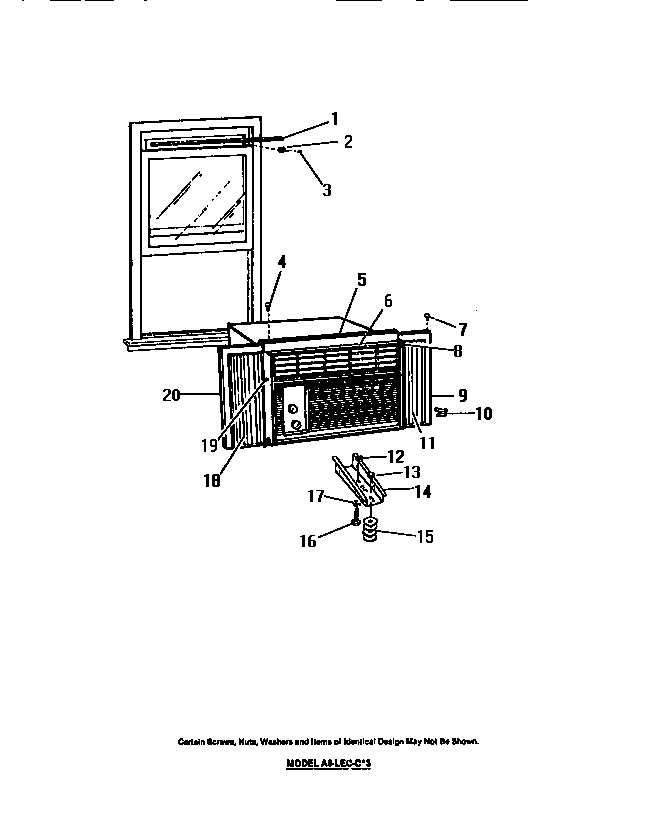

AC15206J 07 – CABINET, WINDOW MOUNTING
Products
| Position | Product |
|---|---|
| 1 | SEAL-SASH |
| 2 | STOP, SASH |
| 3 | SCREW |
| 5 | WCI 8007493 |
| 7 | SCREW (2) |
| 8 | SCREW |
| 8 | RETAINER (2) |
| 9 | CHANNEL, RH |
| 10 | CLIP-RETAINER |
| 13 | SCREW |
| 14 | WCI 8012989 |
| 15 | WASHER |
| 16 | SCREW-ADJUSTABLE |
| 17 | NUT |
| 18 | PANEL, ACCORDIAN |
| 19 | SCREW (6) |
| 20 | CHANNEL, LH |
