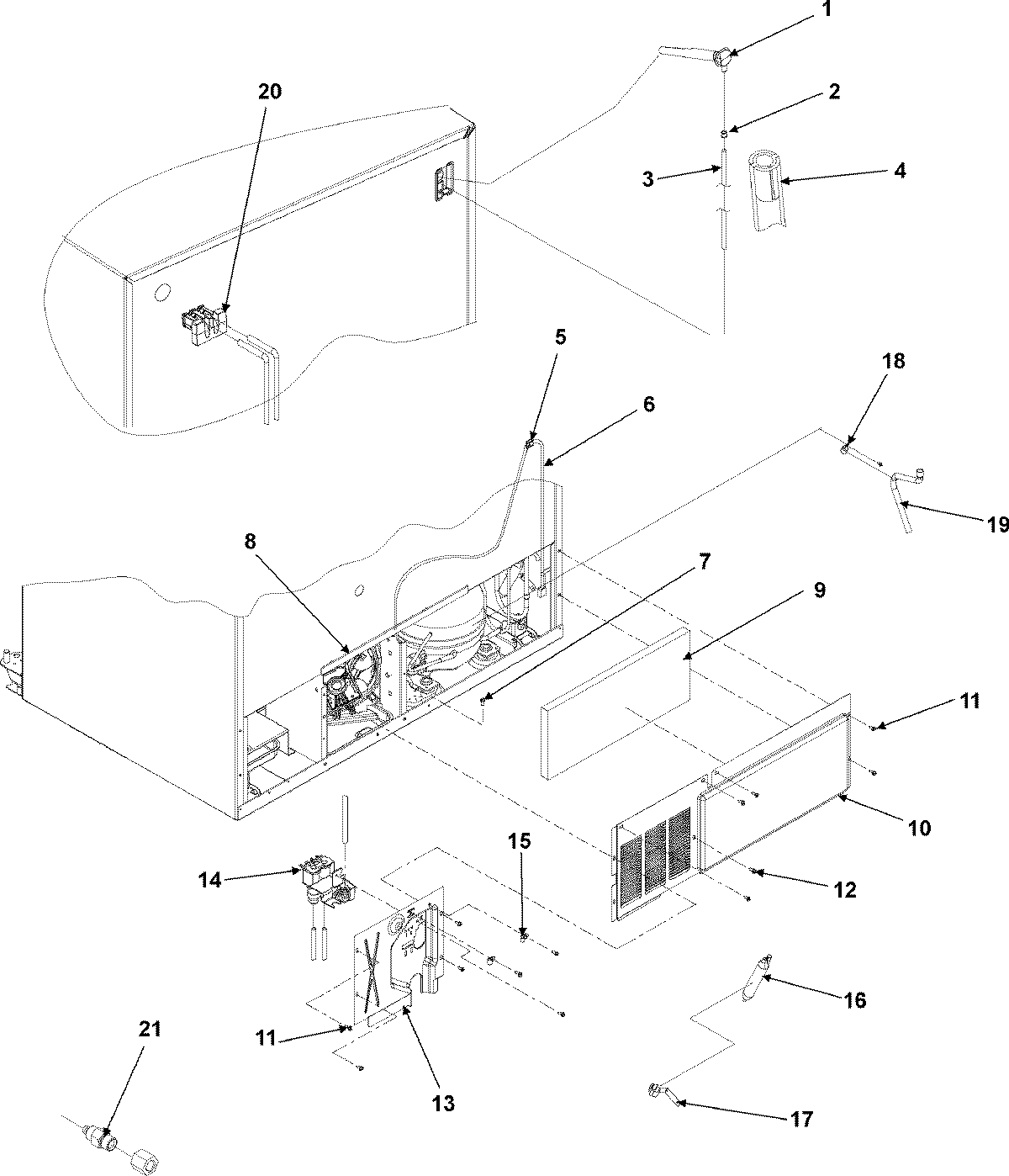

AC2224GEKB 01 – CABINET BACK

Products

Position	Product
1	MAY 67003663
2	Clip
3	WPB5705307 Whirlpool Refrigerator Tube
4	MAY A3223101
5	WPM0104106 Whirlpool Refrigerator Clip
6	MAY 67002229
6	MAY 67006664
7	MAY M0239216
8	Gasket
9	67003796 Whirlpool Refrigerator Fiber Acoustic
10	MAY 67002230
11	Screw (10)
13	MAY 67005117
13	MAY M0238616
14	MAY 67005118
14	MAY YM0251015
14	MAY 12544116
15	W10833902 Whirlpool Refrigerator Clamp
16	DRIER
17	MAY 10547002
17	W10709801 Whirlpool Refrigerator Screw
18	WP489069 Whirlpool Compactor Screw
18	MAY M0102303
19	MAY 12580401
20	12831101 Whirlpool Refrigerator Tube Clamp
21	MAY 67005003
