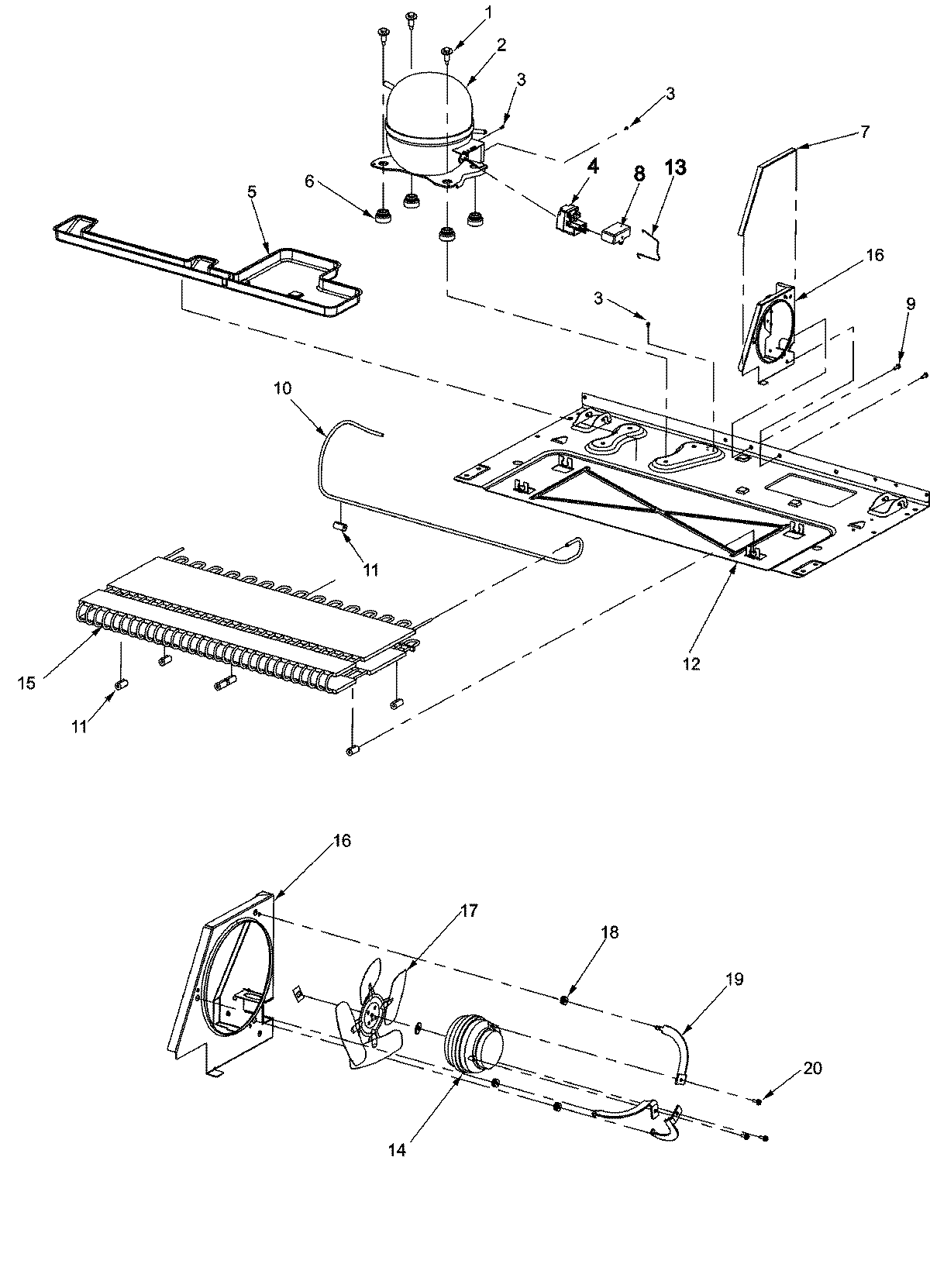

AC2224GEKB 02 – COMPRESSOR

Products

Position	Product
NI	MAY 12975301
NI	MAY 67005062
NI	MAY 67005116
1	MAY M0221523
2	MAY 67005028
3	MAY M0231604
4	OVERLOAD/RELAY CAPACITOR ASSY
4	MAY 67004815
6	67003493 Whirlpool Refrigerator Compressor Grommet
7	WP854334 Whirlpool Air Conditioner Sealing Strip
8	MAY 67002815
8	MAY 67007162
9	MAY M0238616
10	MAY 67004700
11	67005680 Whirlpool Refrigerator Condenser Grommet
12	MAY 67001512
13	MAY 12576801
14	Motor, Condenser
15	WP67006131 Whirlpool Refrigerator Condenser
15	MAY 67002235
16	MAY 67006661
16	MAY 12687101
17	WP12587601 Whirlpool Refrigerator Condenser Blade
18	GROMMET, BRACKET
19	Bracket, Motor (3)
20	Screw (3)
