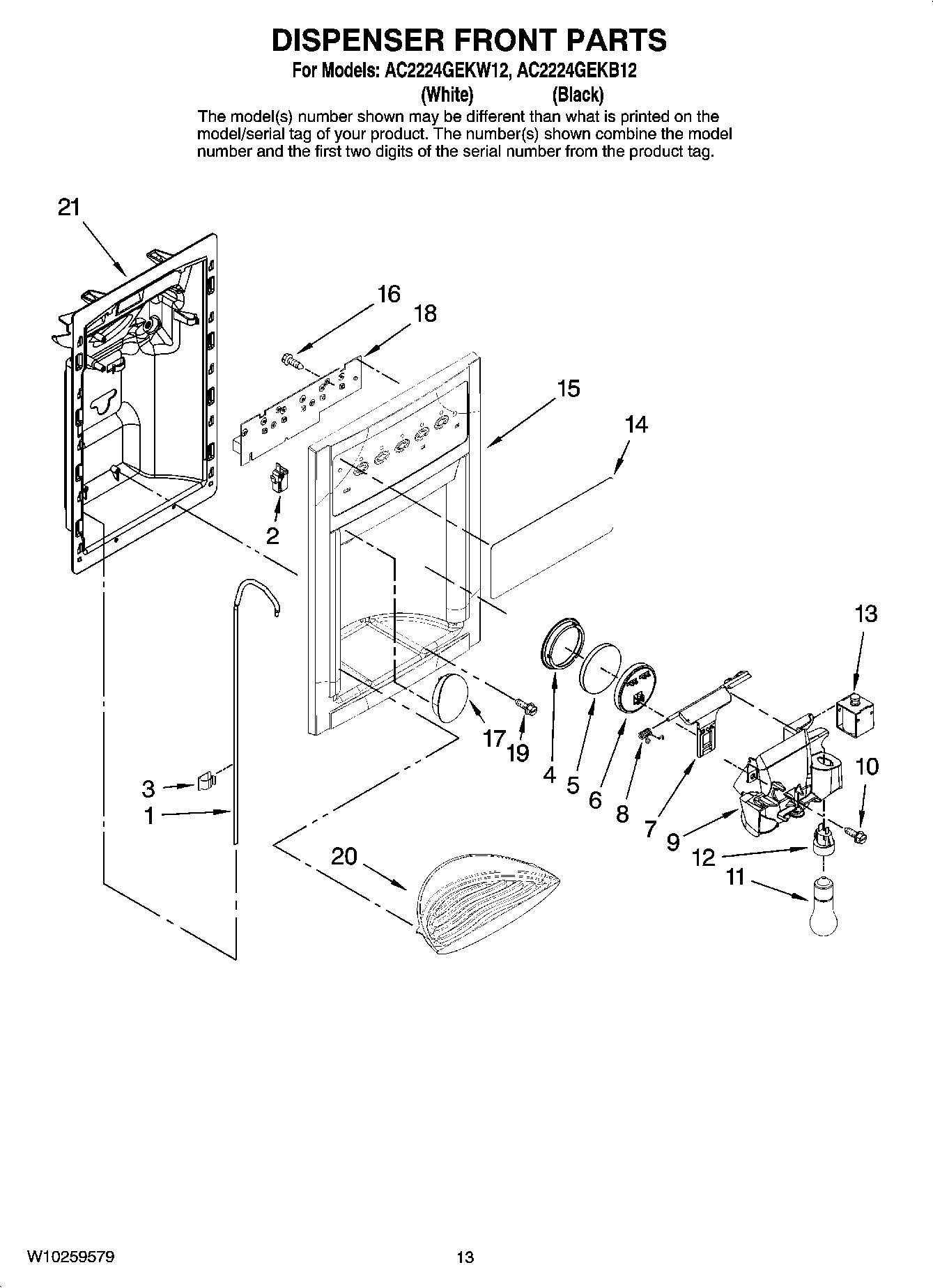

AC2224GEKB12 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	67004938 Whirlpool Refrigerator Waterline Assembly
2	WP12575501 Whirlpool Refrigerator Micro Switch
3	MAY M0104102
4	MAY 12665101
5	MAY 67007098
6	WP12562701 Whirlpool Dispenser Door
7	MAY 67004119
8	WP12565502 Whirlpool Refrigerator Spring
9	MAY 12703608SP
10	MAY 67006400
11	MAY W10159206
12	Socket, Light
13	MAY 12575408SP
14	Insert (Black)
14	MAY 67005202
15	MAY 12779019WS
15	Facade (Black)
16	MAY 67006683
17	MAY 67004511
17	Actuator Pad Assy. (Stainless)
18	MAY 12945104
19	Screw (2)
20	MAY 67005638
