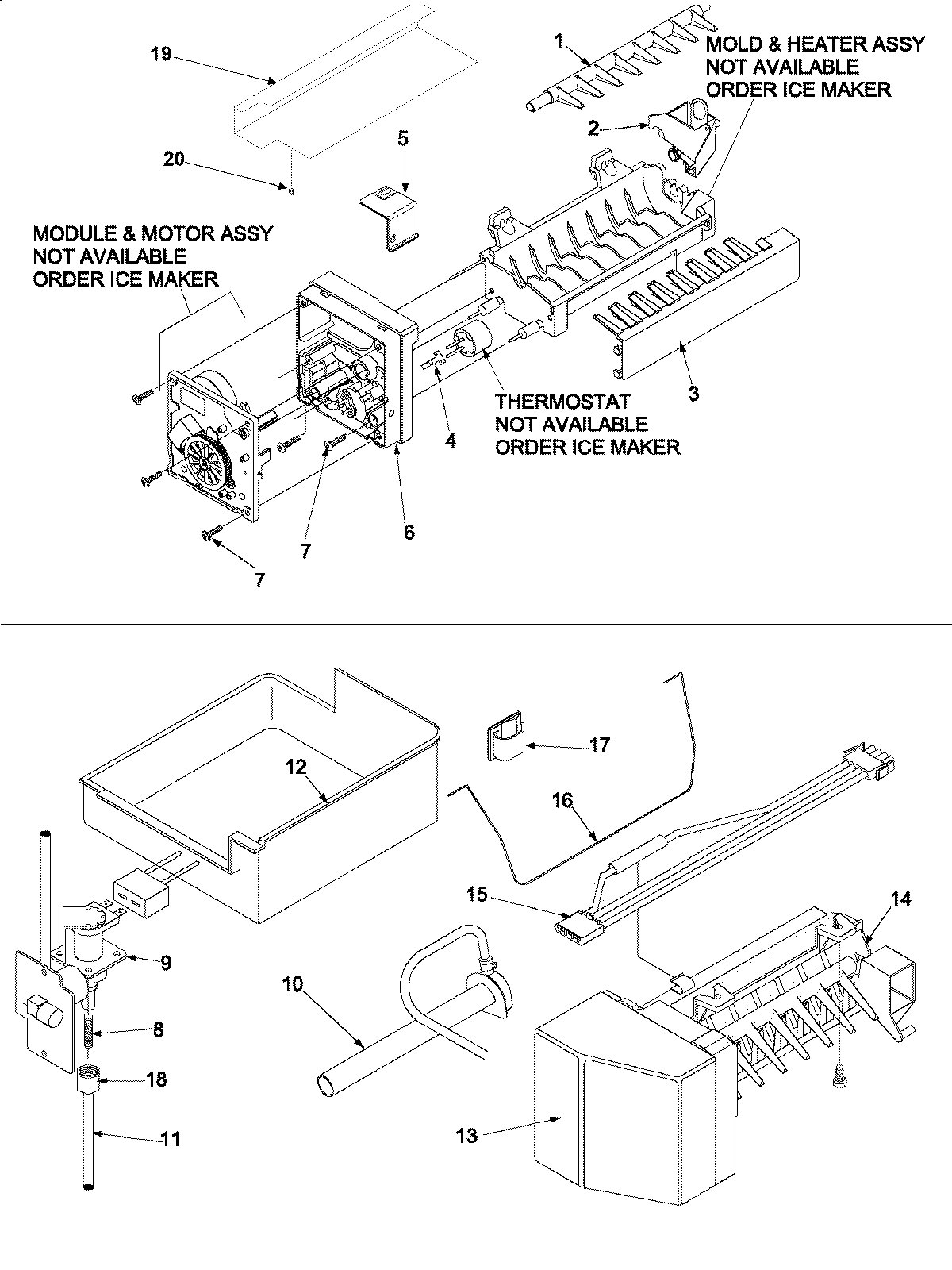

AC2224GEKW 15 – OPTIONAL ICE MAKER KIT-IC511

Products

PositionProduct
1WP627843 Whirlpool Refrigerator Ejector Arm
2WP628356 Whirlpool Refrigerator Fill Cup
3WP2182124 Whirlpool Refrigerator Stripper Arm
4WP2315522 Whirlpool Refrigerator Clip
5MAY Y951071
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7SCREW
8SPRING, ANTI KINK
9MAY 67002250
10ELBOW, FILL TUBE
11MAY B5705323
12WP67001255 Whirlpool Ice Bucket
13WPW10289690 Whirlpool Ice Maker Cover
14MAY D7846305
14MAY B8391802
15MAY 67002248
16ARM-SHUT
17WPM0104106 Whirlpool Refrigerator Clip
18NUT, SLEEVE
19SHIELD, ICE MAKER
20MAY M0211016
21W10833902 Whirlpool Refrigerator Clamp
22MAY 95108-1
23MAY A3223101
24Clip
25W11033771 Whirlpool Refrigerator Coupling
26SCREW, SM
27MAY M0211018
28MAY 67003799
29MAY B5720302
