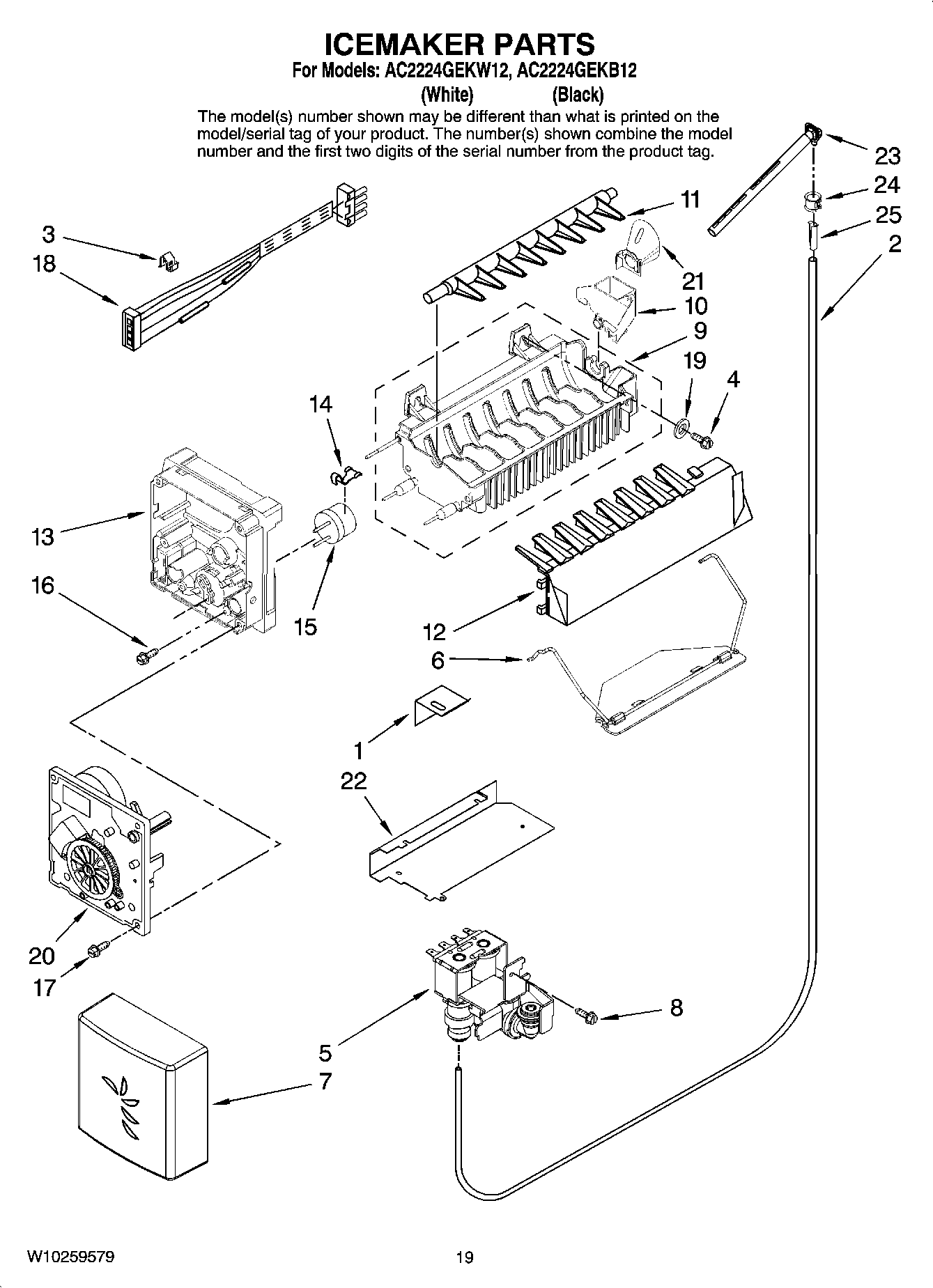

AC2224GEKW12 12 – ICEMAKER PARTS

Products

Position	Product
1	MAY B8391803
2	MAY B5705323
3	Clip
4	MAY 67006698
5	MAY 67002250
6	MAY W10152975
7	Cover
8	MAY 67006662
9	Mold & Heater Assembly (Also Order 542638 Grease)
10	Cup, Fill
11	WP627843 Whirlpool Refrigerator Ejector Arm
12	WP2182124 Whirlpool Refrigerator Stripper Arm
13	WP2195914 Whirlpool Refrigerator Ice Maker Housing
14	WP2315522 Whirlpool Refrigerator Clip
15	Thermostat (Also Order 542369 Cement)
16	Screw (2)
17	Screw (3)
18	MAY 67006666
19	MAY 67006699
20	MAY W10122522
21	MAY 67005603
22	SHIELD, ICE MAKER
23	ELBOW, FILL TUBE
24	Clip
25	MAY A3223101
100	WPW10190972 Whirlpool Refrigerator Icemaker
