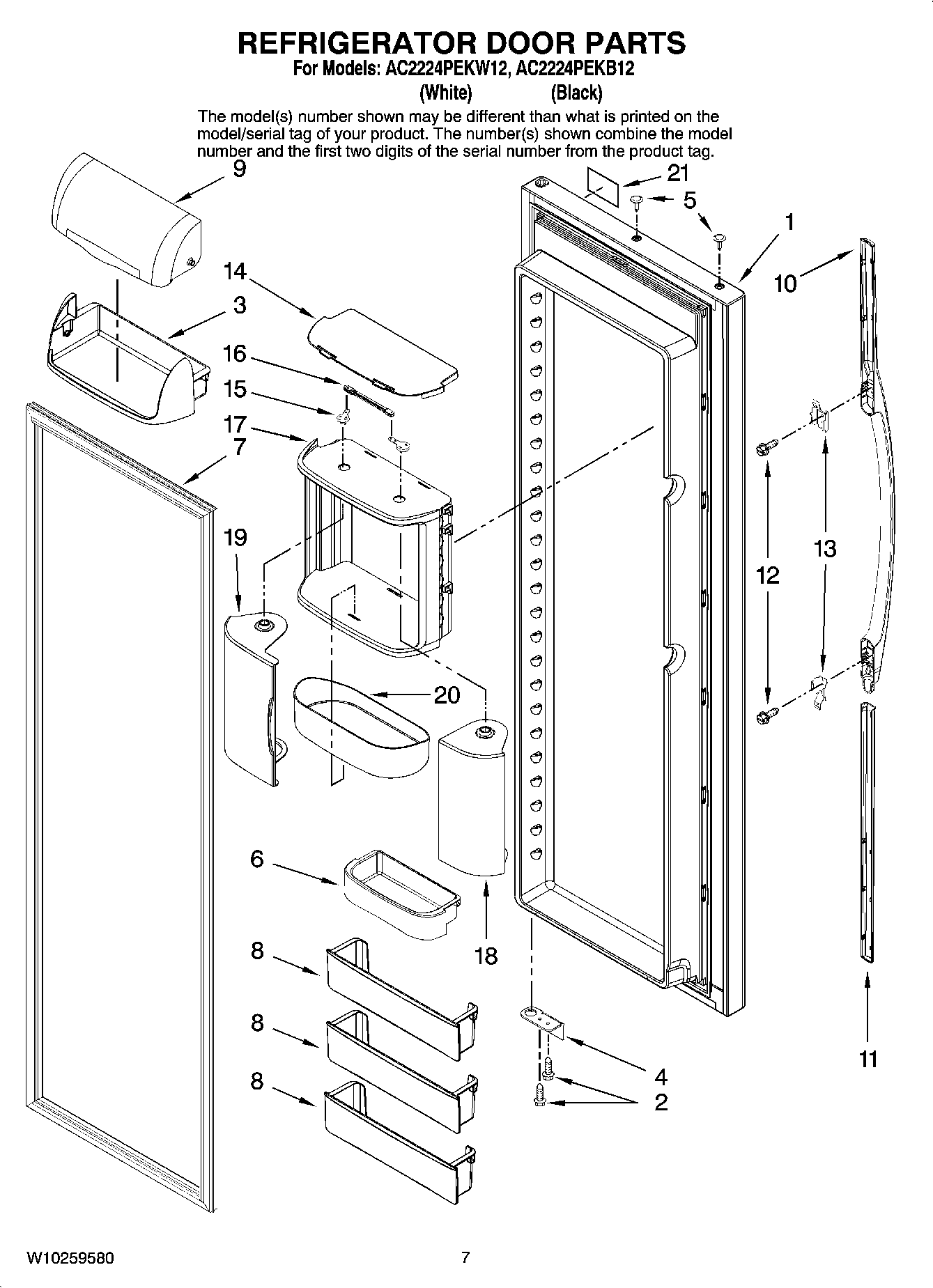

AC2224PEKB12 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY 12818235WQ
1	MAY 12818236BQ
2	MAY M0220432
3	MAY 67002304
4	MAY 67007017
4	STOP, DOOR (WHT)
5	MAY M0311604
6	MAY 67004339
7	MAY W10133482
7	MAY W10133828
8	Bucket, Door (3)
9	MAY 67002957
10	MAY W10119678
10	MAY W10119680
11	MAY 67004297
12	WP67006197 Whirlpool Refrigerator Screw
13	MAY W10132420
14	Cover, Chiller (2)
15	Linkage, Chiller (4)
16	Linkage, Center Chiller (2)
17	Frame, Chiller (Large)
18	Door Chiller (RT) (Large)
19	Door Chiller (LT) (Large)
20	Tray, Chiller (2)
21	STAINLESS
