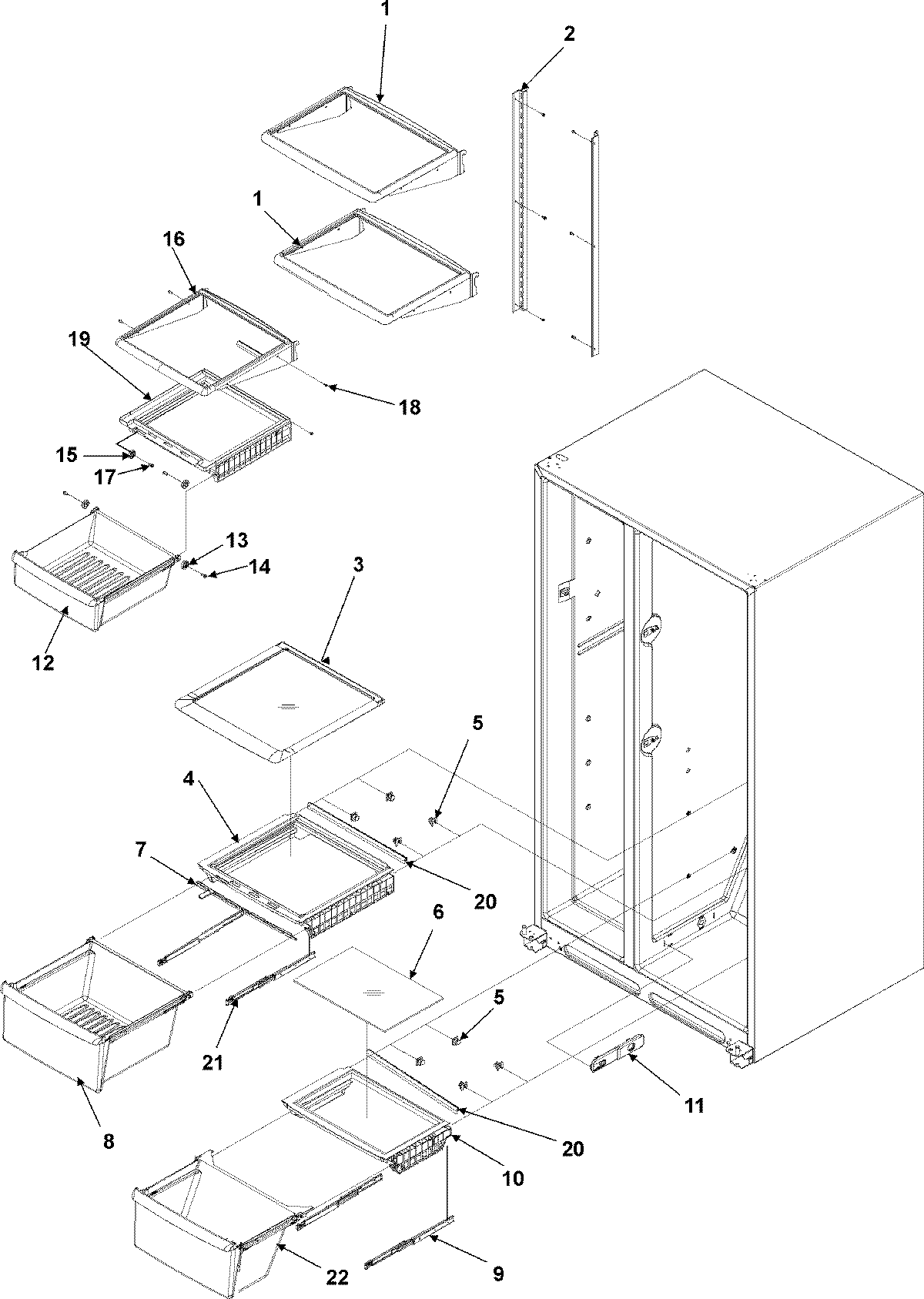

AC2225GEKB 04 – CRISPER ASSY & REF SHELF

AC2225GEKB 04 – CRISPER ASSY & REF SHELF

Written by

in

AC2225GEKB 04 – CRISPER ASSY & REF SHELF

Products

PositionProduct
1Shelf, Glide (2)
2MAY 67003840
2MAY 67006400
3MAY 67004130
4Frame, Crisper
5WP12603701 Whirlpool Refrigerator Support
6MAY 67004132
7SLIDE, HUMIDITY CONTROL (BLUE)
8WP67005816 Whirlpool Refrigerator Pan
967005620 Whirlpool Refrigerator Glide CRI
10MAY 67004247
1167004311 Whirlpool Refrigerator TEMP Control Assembly
12MAY 67004304
13MAY 67004133
15MAY 67004169
16MAY 67004200
17SCREW
18SCREW
19MAY 67004973
20MAY 67004249
21MAY 67006964
21MAY 67004489
22MAY 67005817
