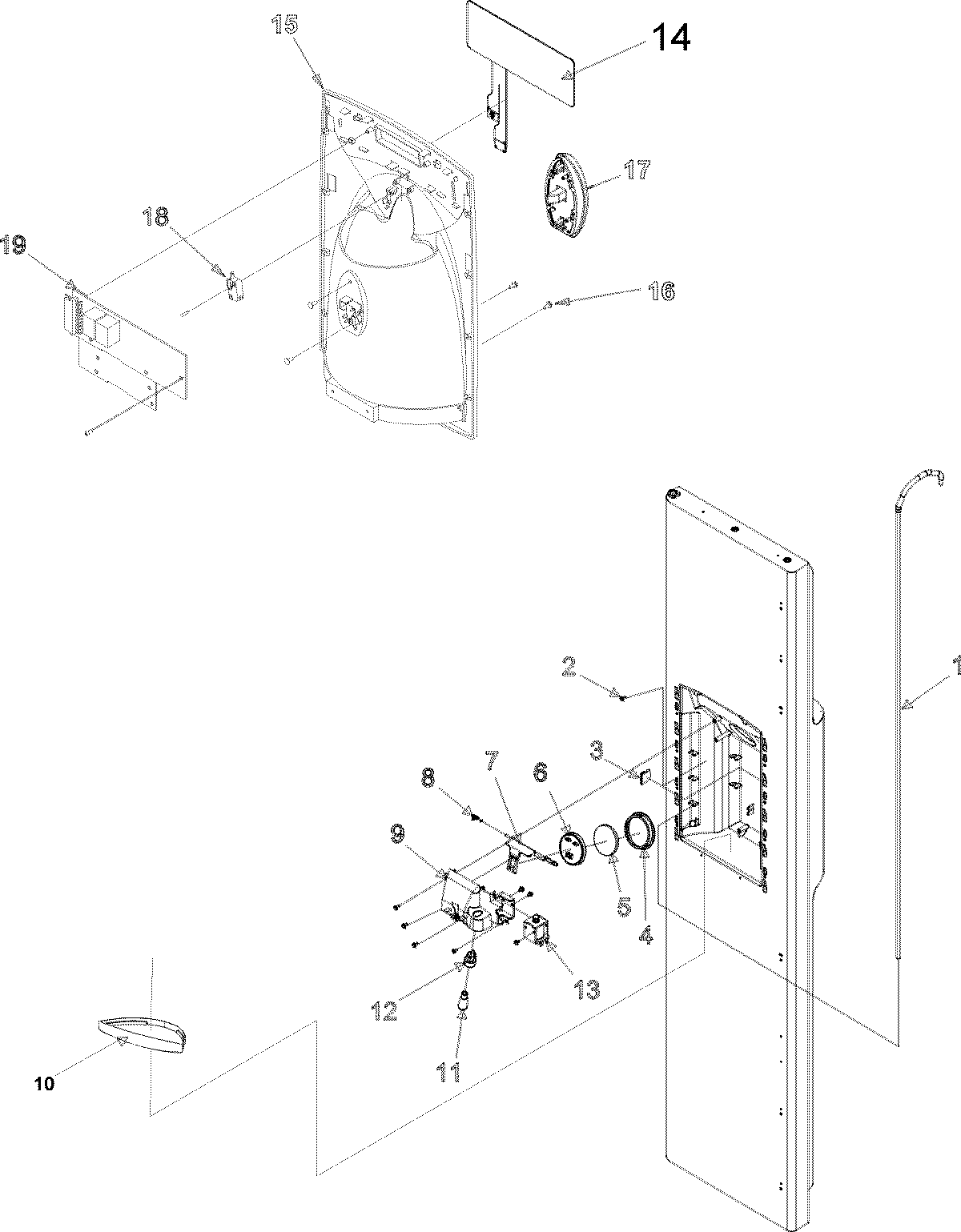

AC2228HEKB 08 – FZ DOOR AND FACADE

Products

Position	Product
1	67004938 Whirlpool Refrigerator Waterline Assembly
2	W10833902 Whirlpool Refrigerator Clamp
3	WPM0104106 Whirlpool Refrigerator Clip
4	MAY 12665101
5	MAY 12563401
6	WP12562701 Whirlpool Dispenser Door
7	MAY 67004119
8	WP12565502 Whirlpool Refrigerator Spring
9	MAY 67005010
10	WP67005636 Whirlpool Refrigerator Dispenser Drip Tray
11	Bulb, Light
12	MAY 12617501
13	MAY 67002170
14	MAY 67005880
15	MAY 67005883
15	MAY 67006049
16	Screw (2)
17	MAY 12593203B
18	MAY M0237902
18	WP12575501 Whirlpool Refrigerator Micro Switch
19	SCREW, SM
19	MAY 67005410
