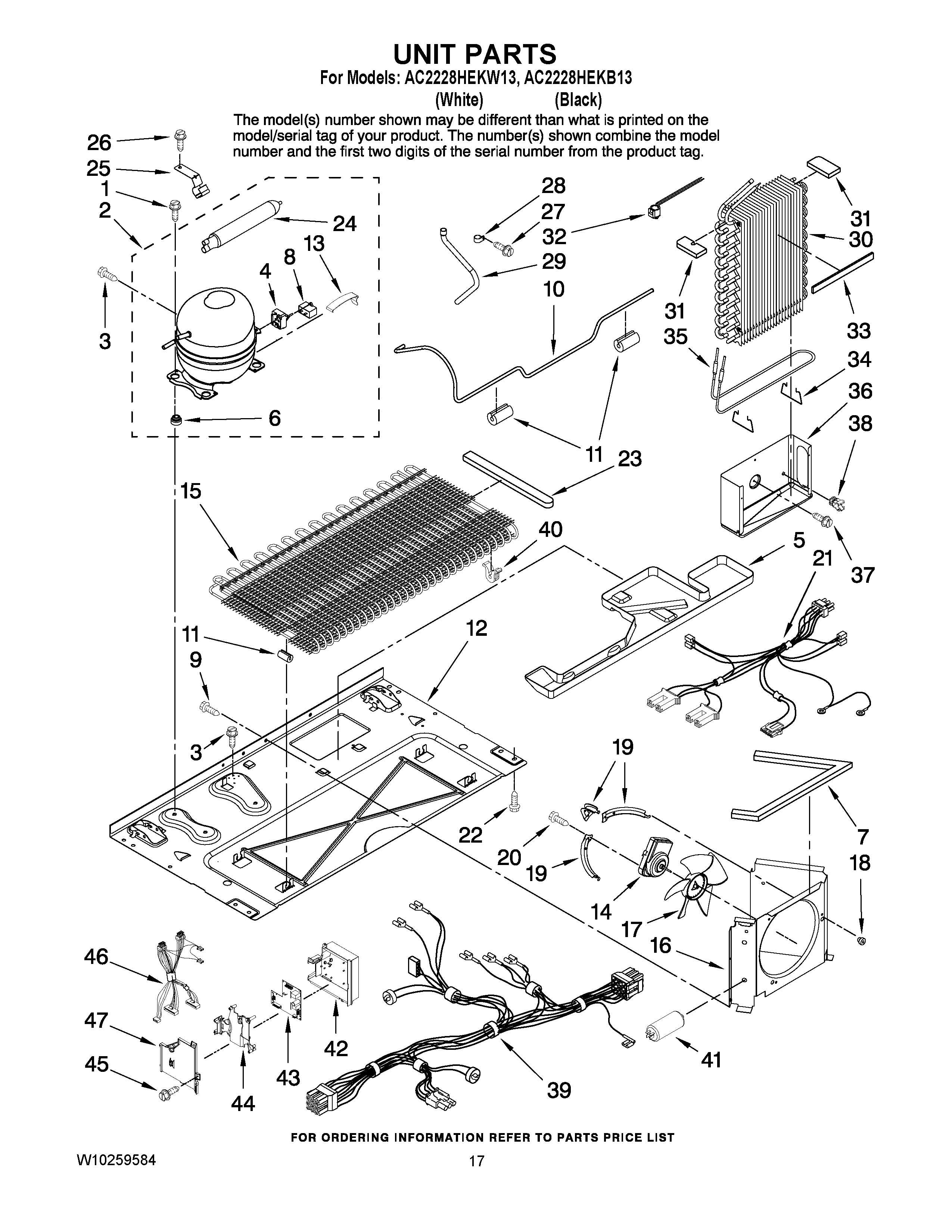

AC2228HEKB13 11 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/16``)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	Valve, Access (1/2``)
NI	VALVE, ACCESS (3/8``)
NI	VALVE, ACCESS (1/4``)
NI	MAY 876764
1	Screw (2)
2	MAY 12049772
3	MAY 67006433
4	MAY 67006660
4	Relay, Combo (Service)
5	MAY 12619103
6	67003493 Whirlpool Refrigerator Compressor Grommet
7	WP854334 Whirlpool Air Conditioner Sealing Strip
8	MAY 67007162
9	Screw (10)
10	MAY 12866903
11	67005680 Whirlpool Refrigerator Condenser Grommet
12	MAY 67005889
13	MAY 67007052
14	MAY W10211284
15	WP67006131 Whirlpool Refrigerator Condenser
16	MAY 67006661
17	MAY W10162928
18	GROMMET, BRACKET
19	MAY 67004953
20	WP67004954 Whirlpool Refrigerator Screw
21	MAY W10169656
22	Screw (4)
23	MAY 67002235
24	Drier
25	MAY 10547003
26	SCREW
27	MAY 67005332
28	MAY 67006700
29	MAY 12580401
31	MAY 12590101
31	MAY 12590102
32	MAY 12639323SP
33	MAY 67002226
34	W11673433 Whirlpool Clip
35	MAY 12889905
36	MAY 12558101WD
37	MAY 67006838
38	MAY 10623003
39	MAY 13044709
40	GROMMET, COND (4)
41	MAY 12689303
42	MAY 12889402SP
43	MAY W10206104
44	MAY 12889502SP
45	MAY 67006550
46	MAY 12976002SP
47	MAY 67005421
