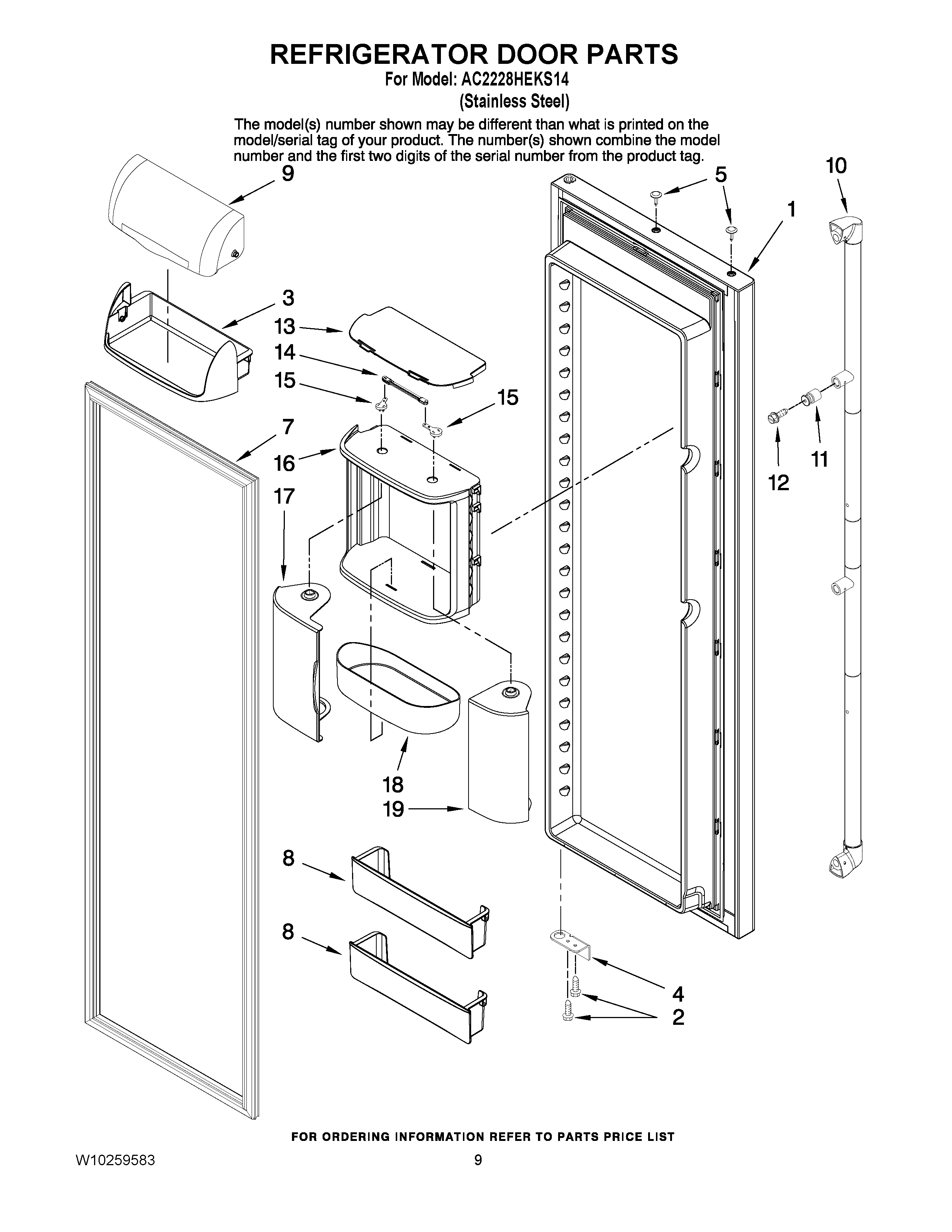

AC2228HEKS14 06 – REFRIGERATOR DOOR PARTS

AC2228HEKS14 06 – REFRIGERATOR DOOR PARTS

Written by

in

AC2228HEKS14 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY 12818250SQ
2	Screw (2)
3	MAY 67002304
4	MAY 67007017
5	MAY M0311604
7	MAY W10133482
8	Bucket, Door (2)
9	MAY 67002957
10	MAY 12850908
11	MAY 67006109
12	SCREW, HANDLE
13	Cover, Chiller (2)
14	MAY 12568501
15	Linkage, Chiller (4)
16	Frame, Chiller (Mini)
17	MAY 67003137
17	Door Chiller (LT) (Large)
18	Tray, Chiller (2)
19	Door Chiller (RT) (Mini)
19	Door Chiller (RT) (Large)
