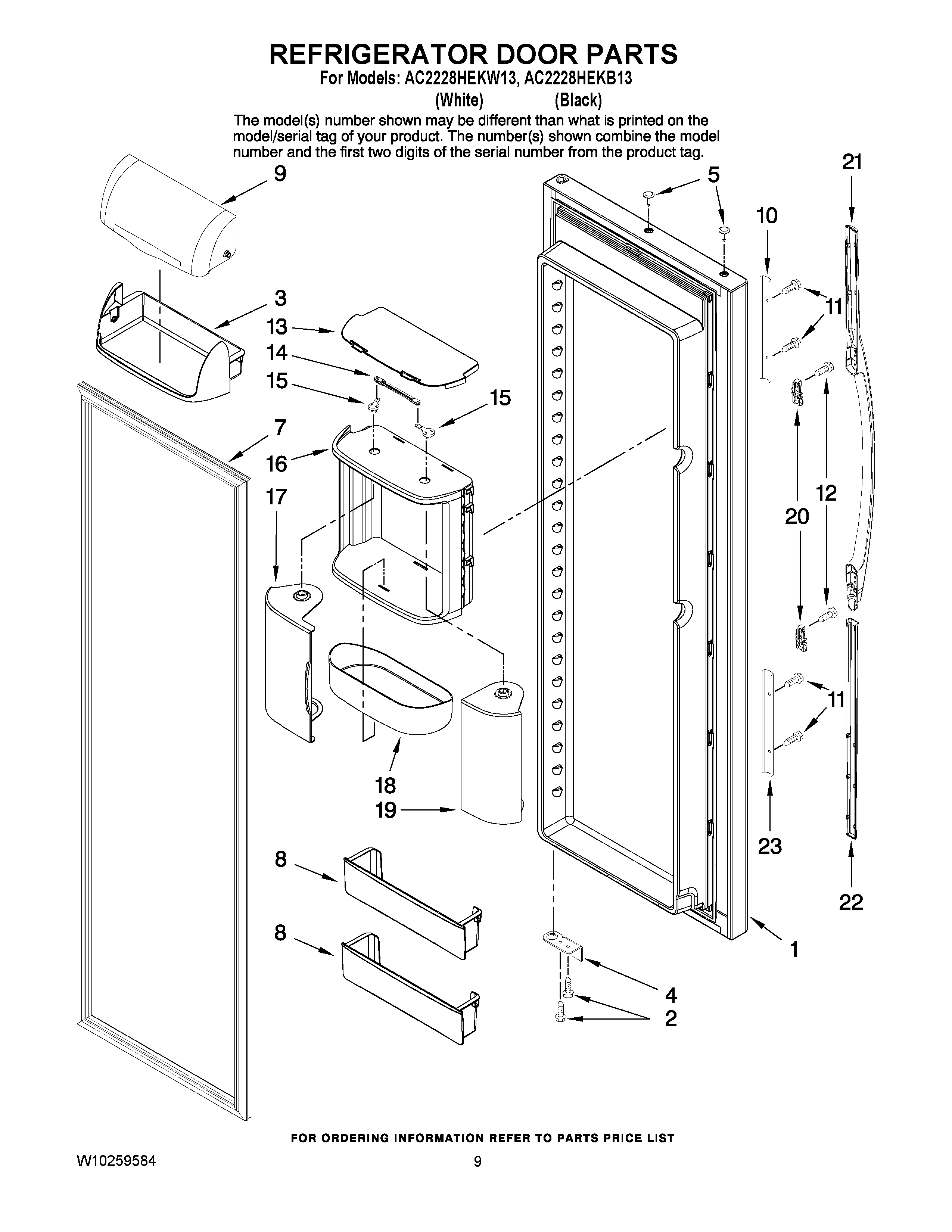

AC2228HEKW13 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 12818235WQ
1MAY 12818235BQ
2Screw (2)
3MAY 67002304
4MAY 67007017
4STOP, DOOR (WHT)
5MAY M0311604
7MAY W10133482
7MAY W10133828
8Bucket, Door (2)
9MAY 67002957
10MAY 67004116
11SCREW
12WP12992902 Whirlpool Refrigerator Screw
13Cover, Chiller (2)
14MAY 12568501
15Linkage, Chiller (4)
16Frame, Chiller (Mini)
16MAY W10132420
17MAY 67003137
17Door Chiller (LT) (Large)
18Tray, Chiller (2)
19Door Chiller (RT) (Large)
19Door Chiller (RT) (Mini)
21MAY W10119678
21MAY W10119680
22TRIM, HANDLE 36“(BLK)
22MAY 67004297
23MAY 67004117
