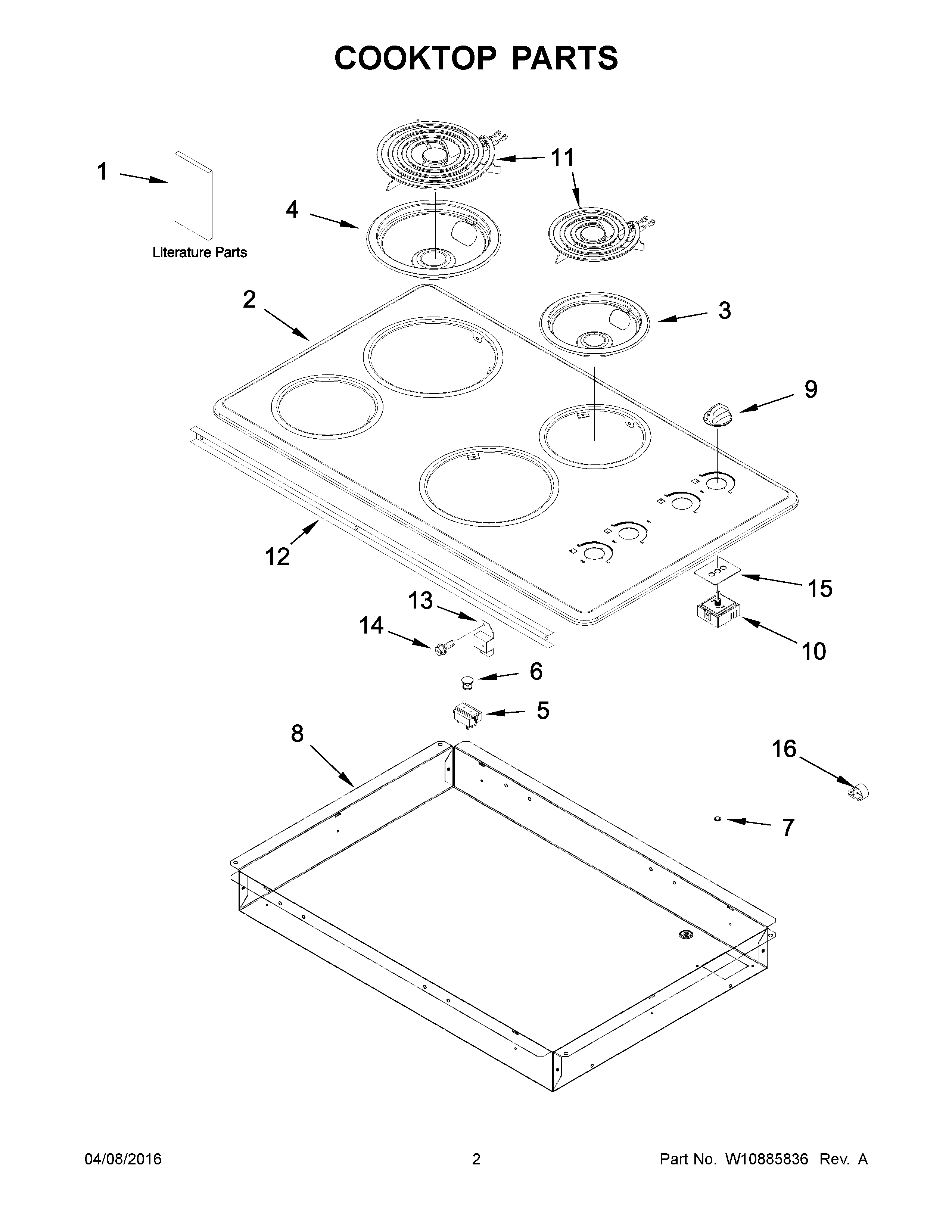

ACC6340KFB00 02 – COOKTOP PARTSadmin2025-04-26T09:09:17+00:00ACC6340KFB00 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | MAY W10845396 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY W10845395 |
| 1D | MAY W10852773 |
| 1B | TIPS, SAFE COOKING (ENGLISH) |
| 1C | TIPS, SAFE COOKING (FRENCH) |
| 1 | MAY W10852771 |
| 1A | INSTRUCTIONS, INSTALLATION |
| 2A | MAY W10828619 |
| 2 | MAY W10828615 |
| 3 | PAN, REFLECTOR SMALL |
| 4 | PAN, REFLECTOR LARGE |
| 5 | W10852510 Whirlpool Indicator Light |
| 6 | W11690131 Whirlpool Light Lens |
| 7 | GROMMET |
| 9A | MAY W10270283 |
| 9 | MAY W10270282 |
| 10A | SWITCH, INFINITE (RIGHT FRONT AND LEFT REAR) |
| 10 | SWITCH, INFINITE (LEFT FRONT) |
| 11 | MAY W10828616 |
| 11A | MAY W10828617 |
| 12 | BRACE, TOP |
| 13 | BRACKET, MAIN TOP SUPPORT |
| 14 | MAY 7101P336-60 |
| 15 | SEAL, GASKET INF. SW. |
| 16 | MAY 7111P002-60 |
