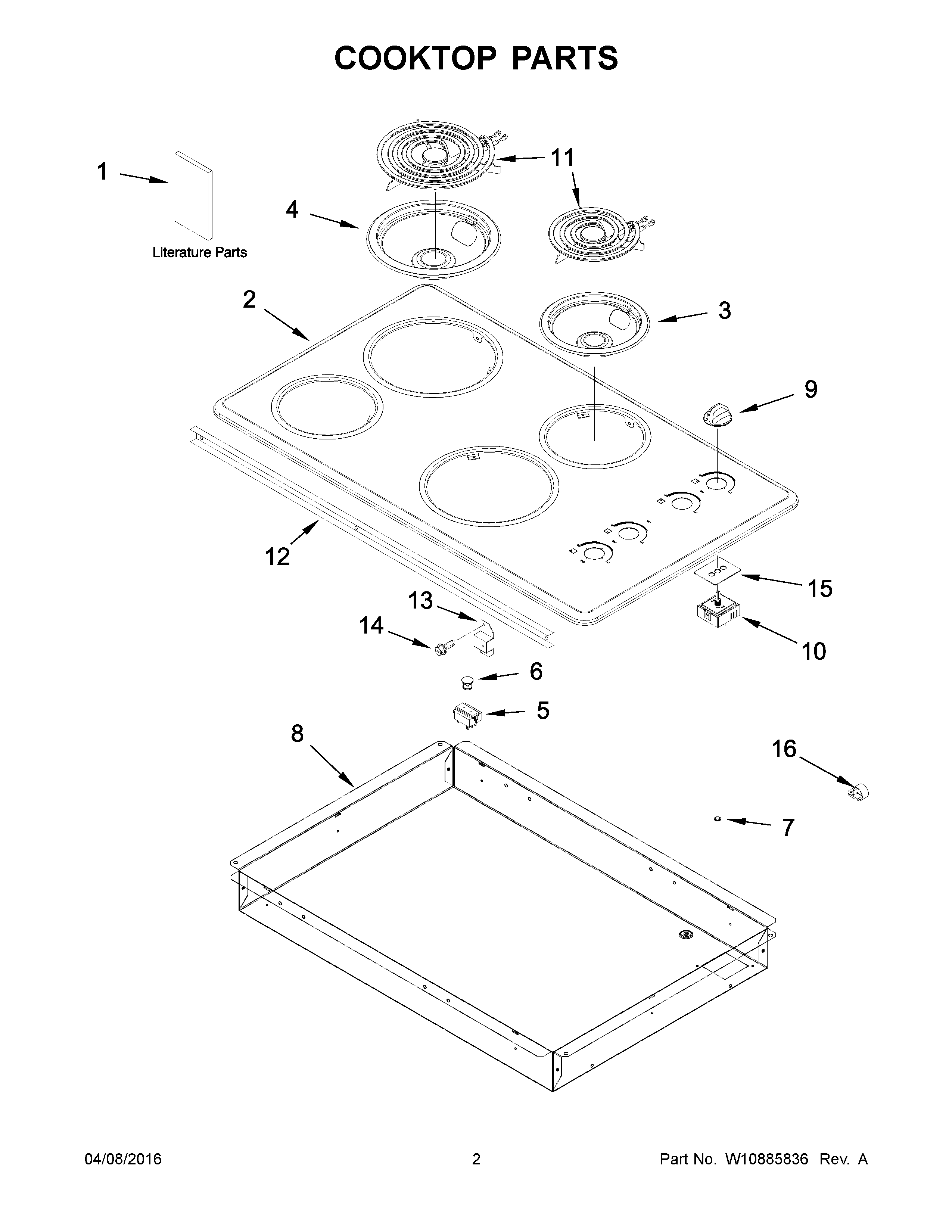

ACC6340KFW00 02 – COOKTOP PARTS

ACC6340KFW00 02 – COOKTOP PARTS

Written by

in

ACC6340KFW00 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10845396
NILINER (NOT A SERVICEABLE PART)
NIMAY W10845395
1DMAY W10852773
1BTIPS, SAFE COOKING (ENGLISH)
1CTIPS, SAFE COOKING (FRENCH)
1MAY W10852771
1AINSTRUCTIONS, INSTALLATION
2AMAY W10828619
2MAY W10828615
3PAN, REFLECTOR SMALL
4PAN, REFLECTOR LARGE
5W10852510 Whirlpool Indicator Light
6W11690131 Whirlpool Light Lens
7GROMMET
9AMAY W10270283
9MAY W10270282
10ASWITCH, INFINITE (RIGHT FRONT AND LEFT REAR)
10SWITCH, INFINITE (LEFT FRONT)
11MAY W10828616
11AMAY W10828617
12BRACE, TOP
13BRACKET, MAIN TOP SUPPORT
14MAY 7101P336-60
15SEAL, GASKET INF. SW.
16MAY 7111P002-60
