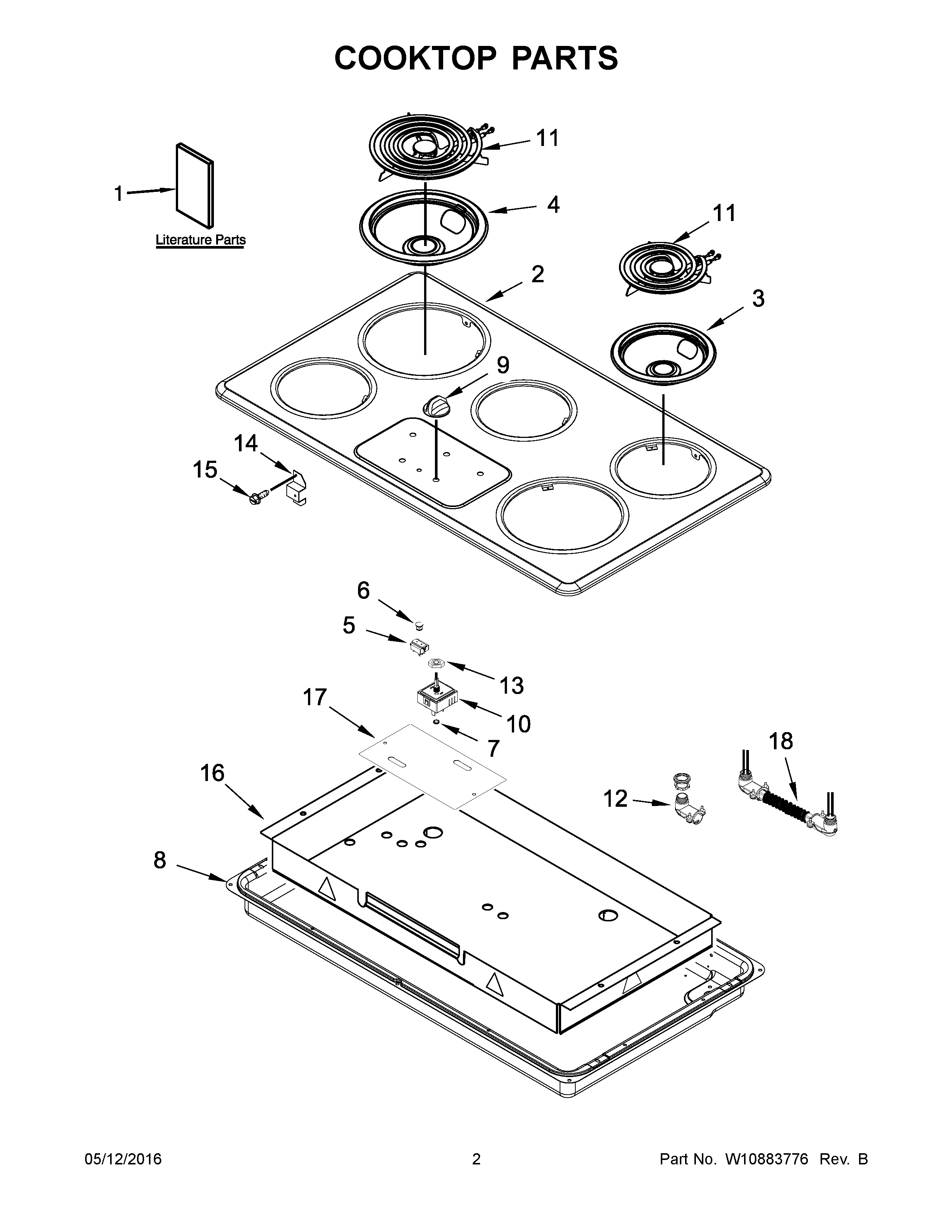

ACC6356KFB00 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY 8008P055-60
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, CONTROLS TO TOP
NIHARNESS, TO PANEL
NISCREW, GROUND (GRN)
NIHARNESS, COIL TOP
1AINSTRUCTIONS, INSTALLATION
1DDIAGRAM, WIRING
1CTIPS, SAFE COOKING (FRENCH)
1BTIPS, SAFE COOKING (ENGLISH)
1MAY W10852771
2MAY W10828622
2AMAY W10828626
3PAN, REFLECTOR SMALL
4PAN, REFLECTOR LARGE
5W10852510 Whirlpool Indicator Light
6W11690131 Whirlpool Light Lens
7MAY 8008P014-60
8BOX, BURNER
9MAY W10270282
9AMAY W10270283
10MAY 7450P014-60
11ELEMENT, SURFACE (6") (LEFT FRONT, CENTER REAR, RIGHT REAR)
11AELEMENT, SURFACE (8") (LEFT REAR, RIGHT FRONT)
12MAY 7417P005-60
13MAY 7103P021-60
14BRACKET, MAIN TOP SUPPORT
15MAY 7101P336-60
16UNIT, HOUSING
17MAY 4005F086-51
18ASSEMBLY, CONDUIT FLEX
