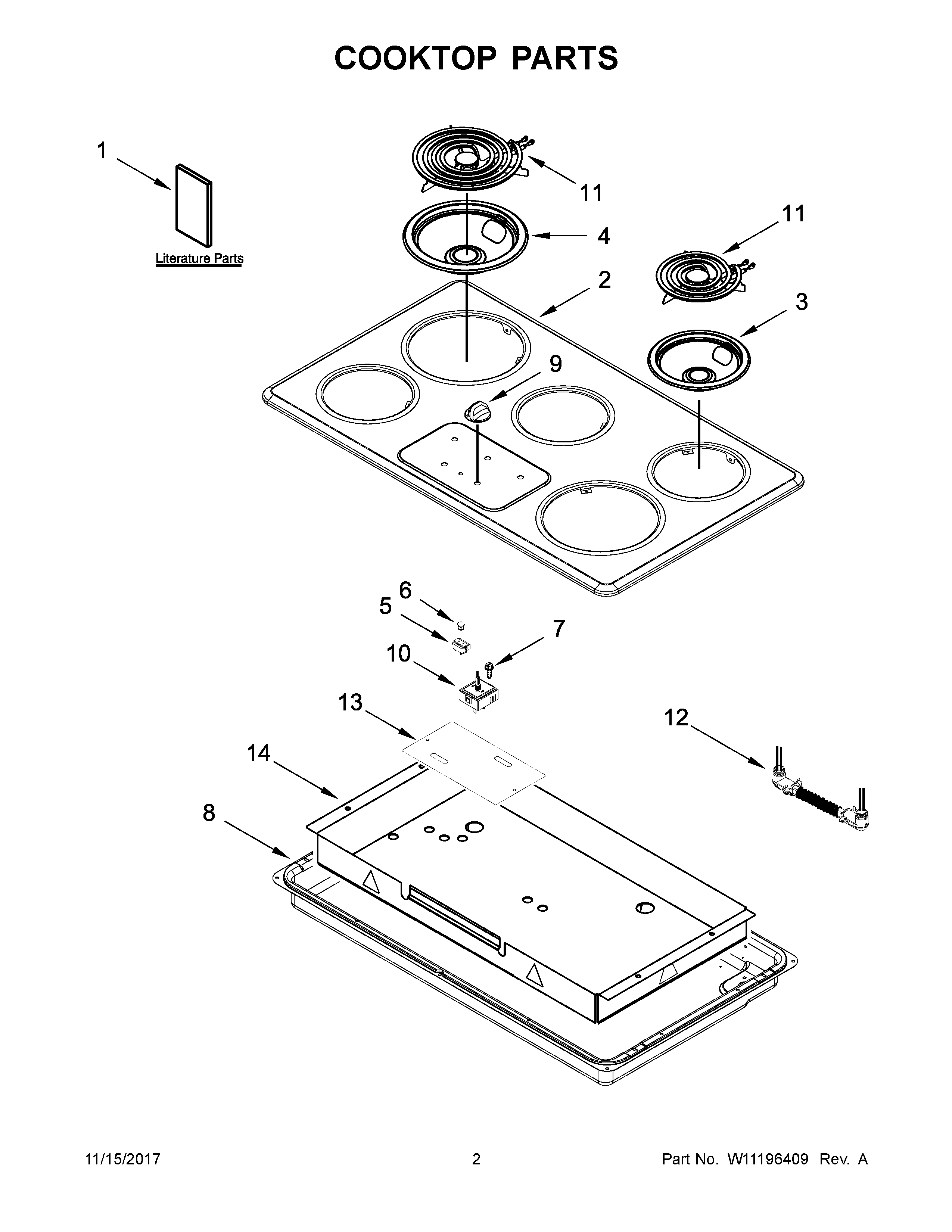

ACC6356KFB01 02 – COOKTOP PARTSadmin2025-04-26T09:10:16+00:00ACC6356KFB01 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | HARNESS, TO PANEL |
| NI | HARNESS, CONTROLS TO TOP |
| NI | HARNESS, COIL TOP |
| NI | 18 BK |
| NI | SCREW, GROUND (GRN) |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY 8008P055-60 |
| 1A | INSTRUCTIONS, INSTALLATION |
| 1B | DIAGRAM, WIRING |
| 1 | MAY W10852771 |
| 2 | MAY W10883323 |
| 2A | MAY W10883327 |
| 3 | PAN, REFLECTOR SMALL |
| 4 | PAN, REFLECTOR LARGE |
| 5 | W10852510 Whirlpool Indicator Light |
| 6 | W11690131 Whirlpool Light Lens |
| 7 | MAY W10734880 |
| 8 | BOX, BURNER |
| 9A | MAY W10270283 |
| 9 | MAY W10270282 |
| 10A | SWITCH, INFINITE (RIGHT FRONT AND LEFT REAR) |
| 10 | SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR) |
| 11A | ELEMENT, SURFACE (8") (LEFT REAR, RIGHT FRONT) |
| 11 | ELEMENT, SURFACE (6") (LEFT FRONT, CENTER REAR, RIGHT REAR) |
| 12 | ASSEMBLY, CONDUIT FLEX |
| 13 | MAY 4005F086-51 |
| 14 | UNIT, HOUSING |
