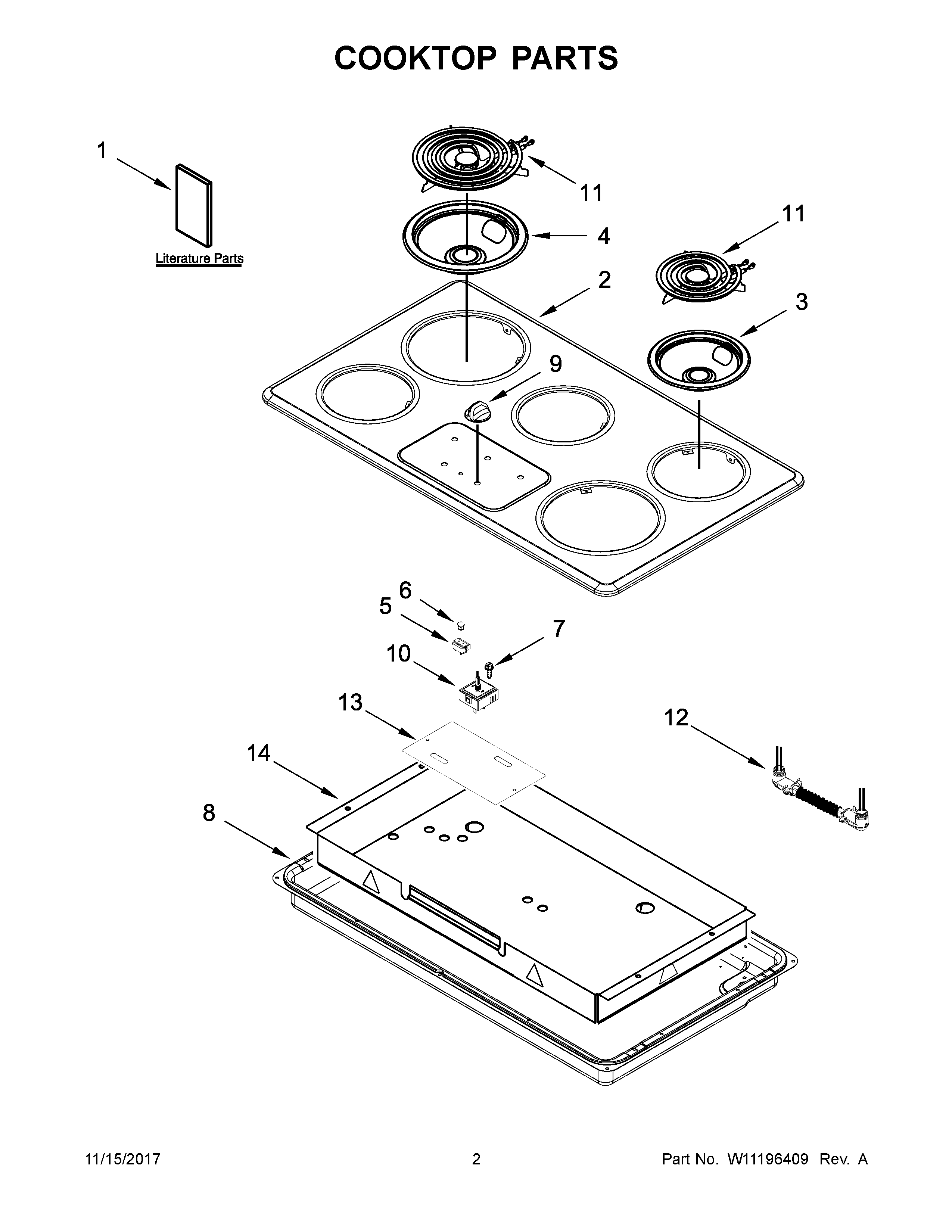

ACC6356KFW01 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, TO PANEL
NIHARNESS, CONTROLS TO TOP
NIHARNESS, COIL TOP
NI18 BK
NISCREW, GROUND (GRN)
NILINER (NOT A SERVICEABLE PART)
NIMAY 8008P055-60
1AINSTRUCTIONS, INSTALLATION
1BDIAGRAM, WIRING
1MAY W10852771
2MAY W10883323
2AMAY W10883327
3PAN, REFLECTOR SMALL
4PAN, REFLECTOR LARGE
5W10852510 Whirlpool Indicator Light
6W11690131 Whirlpool Light Lens
7MAY W10734880
8BOX, BURNER
9AMAY W10270283
9MAY W10270282
10ASWITCH, INFINITE (RIGHT FRONT AND LEFT REAR)
10SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
11AELEMENT, SURFACE (8") (LEFT REAR, RIGHT FRONT)
11ELEMENT, SURFACE (6") (LEFT FRONT, CENTER REAR, RIGHT REAR)
12ASSEMBLY, CONDUIT FLEX
13MAY 4005F086-51
14UNIT, HOUSING
