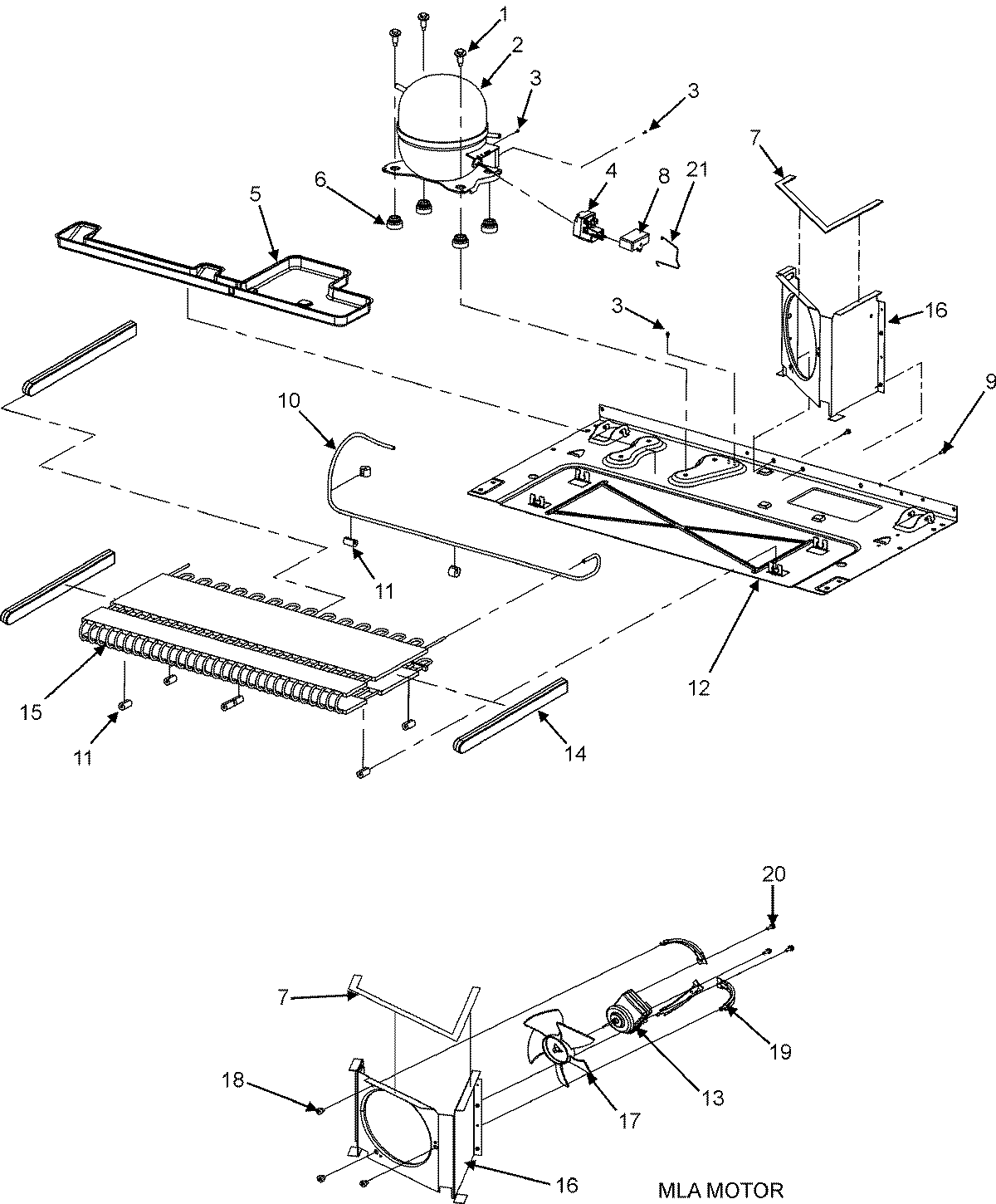

ACD2232HRS 02 – COMPRESSOR

Products

Position	Product
NI	67004955 Whirlpool Refrigerator MC Harness
1	MAY 67003790
2	W10160407 Whirlpool Refrigerator Compressor
3	MAY M0231604
4	W10613606 Whirlpool Refrigerator Start Device Relay Overload
5	WP12579803 Whirlpool Refrigerator Drain Pan
6	67003493 Whirlpool Refrigerator Compressor Grommet
7	WP854334 Whirlpool Air Conditioner Sealing Strip
8	Capacitor
9	MAY M0238616
10	MAY 67004700
10	MAY 67002236
11	67005680 Whirlpool Refrigerator Condenser Grommet
12	MAY 67005889
13	MAY 67004432
14	MAY 67002235
15	WP67006131 Whirlpool Refrigerator Condenser
16	SHROUD, CONDENSER FAN
17	W10156818 Whirlpool Refrigerator Fan Blade
18	GROMMET, BRACKET
19	Bracket, Motor (3)
20	WP67004954 Whirlpool Refrigerator Screw
21	MAY 12576801
