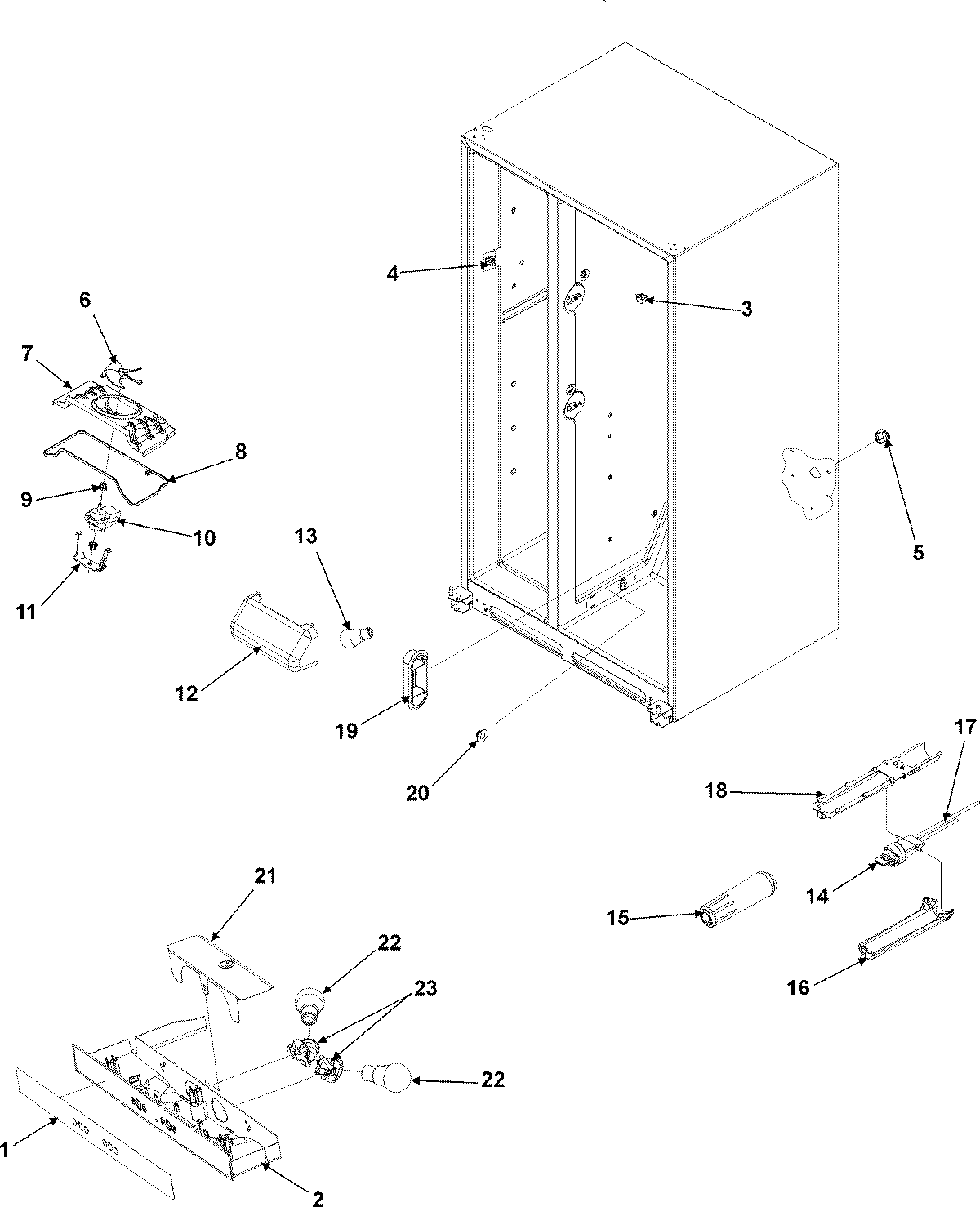

ACD2232HRW 06 – EVAP FAN ASSY AND LIGHTS

ACD2232HRW 06 – EVAP FAN ASSY AND LIGHTS

Written by

in

ACD2232HRW 06 – EVAP FAN ASSY AND LIGHTS

Products

PositionProduct
NISocket, Light (2)
1MAY 67004327
2MAY 67004240
3W11291138 Whirlpool Refrigerator Door Switch
4SWITCH, LIGHT
6MAY 12217201
7Shroud, Evap Fan
8MAY 67001508
9WP67002780 Whirlpool Refrigerator Grommet
10WPW10128551 Whirlpool Evaporator Fan Motor
11MAY 67005633
12MAY 67001507
14MAY 67003146
15FILTER, WATER SINGLE
16WP12568001 Whirlpool Filter Cover
17WP67004106 Whirlpool Water Filter Housing
18MAY 12688503
19MAY 12634801
20MAY 67003018
21MAY 67005038
22Bulb, Light (2)
