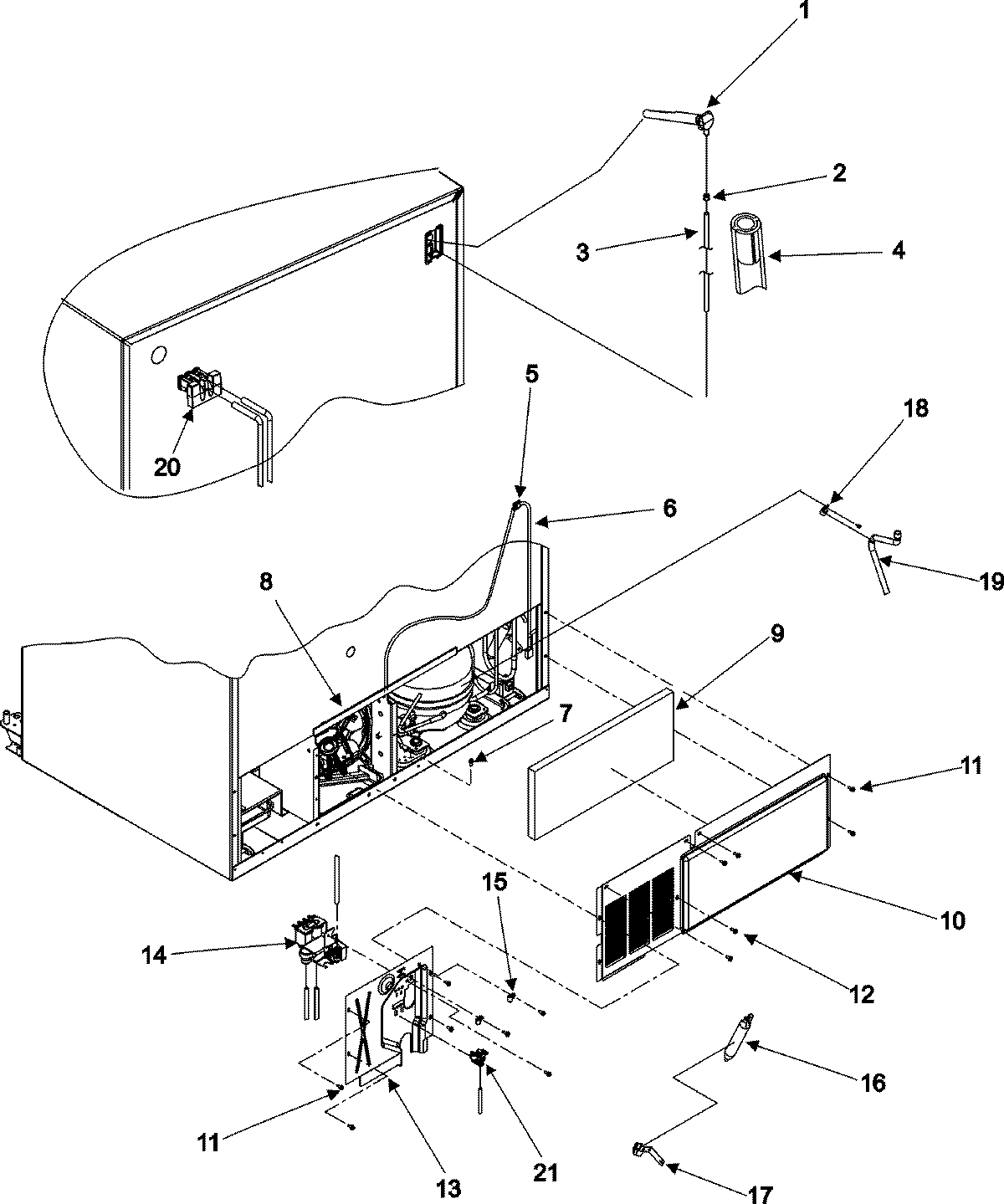

ACD2234HRQ 01 – CABINET BACK

Products

Position	Product
1	MAY 67003579
2	Clip
3	WPB5705307 Whirlpool Refrigerator Tube
4	MAY A3223101
5	WPM0104106 Whirlpool Refrigerator Clip
6	WP67006506 Whirlpool Refrigerator Power Cord
6	MAY 67007121
7	MAY 67006433
7	MAY M0239216
8	Gasket
9	67003796 Whirlpool Refrigerator Fiber Acoustic
10	MAY M0238616
10	BACK, MACH COMP
11	Screw (10)
13	MAY 67004098
13	MAY M0226528
14	WP67006531 Whirlpool Water Inlet Valve
14	681390 Whirlpool Refrigerator Screw
14	WP67005154 Whirlpool Water Valve
15	W10833902 Whirlpool Refrigerator Clamp
16	DRIER
17	SCREW
17	W10709801 Whirlpool Refrigerator Screw
17	MAY 10547002
18	MAY M0102303
18	WP489069 Whirlpool Compactor Screw
18	MAY 67006700
18	MAY 67006615
19	MAY 12580401
20	WP12777701 Whirlpool Refrigerator Filler Block
21	MAY 67004701
21	MAY 67004100
