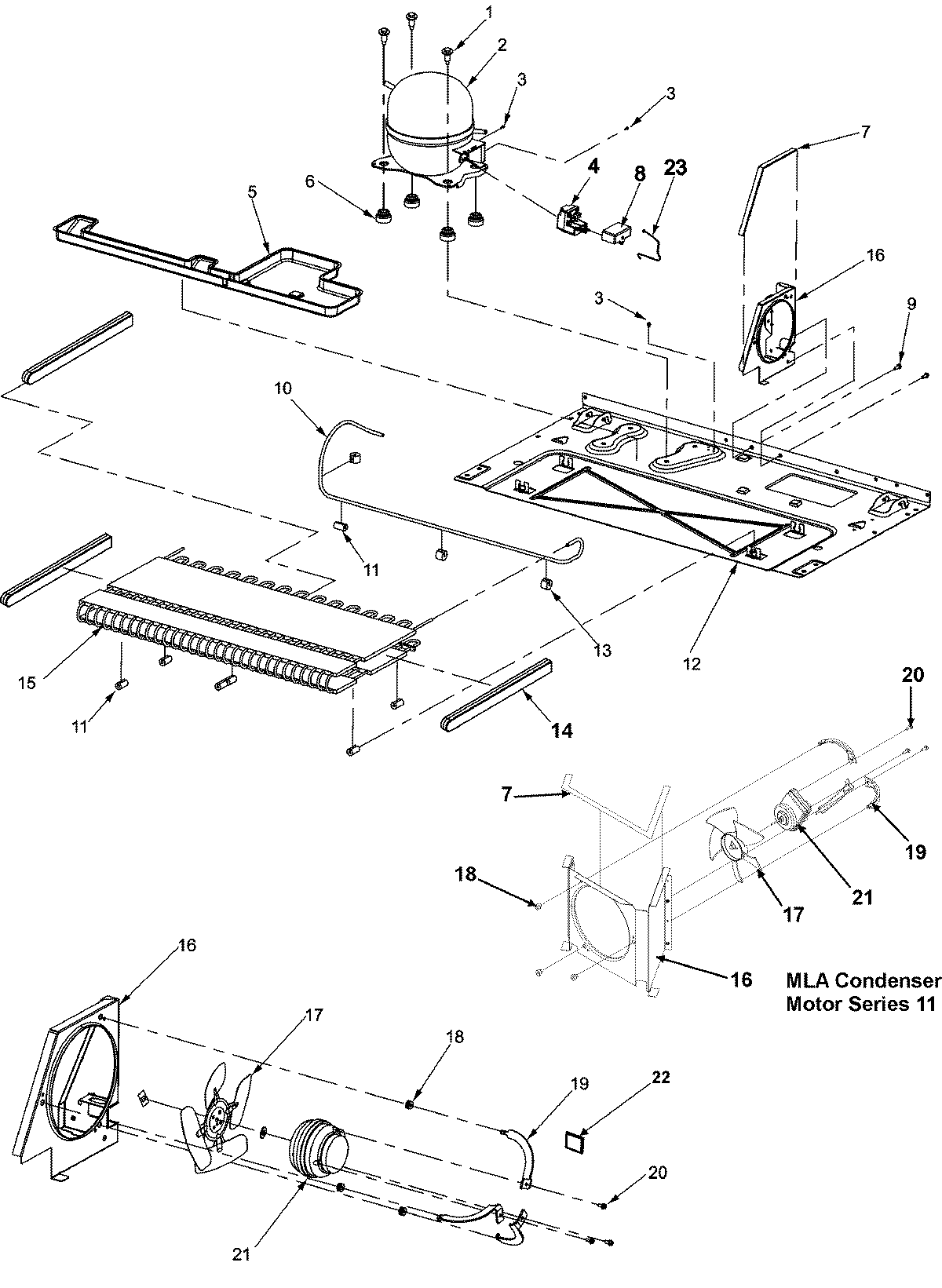

ACD2234HRQ 02 – COMPRESSOR

Products

Position	Product
NI	67004955 Whirlpool Refrigerator MC Harness
NI	MAY 67004324
1	MAY 67006432
1	MAY M0221523
2	W10160407 Whirlpool Refrigerator Compressor
2	MAY 67003084
2	MAY 67005563
3	MAY M0231604
3	MAY 67006433
4	W10613606 Whirlpool Refrigerator Start Device Relay Overload
5	WP12579803 Whirlpool Refrigerator Drain Pan
6	67003493 Whirlpool Refrigerator Compressor Grommet
7	WP854334 Whirlpool Air Conditioner Sealing Strip
8	CAPACITOR
9	Screw (10)
9	MAY M0238616
10	MAY 67002236
10	MAY 67004700
11	67005680 Whirlpool Refrigerator Condenser Grommet
12	MAY 67001512
12	MAY 67005889
13	MAY 10699601
14	MAY 67002235
15	WP67006131 Whirlpool Refrigerator Condenser
15	MAY 67003195
16	SHROUD, CONDENSER FAN
17	W10156818 Whirlpool Refrigerator Fan Blade
17	WP12587601 Whirlpool Refrigerator Condenser Blade
18	GROMMET, BRACKET
19	Bracket, Motor (3)
19	MAY 67004953
20	Screw (3)
20	WP67004954 Whirlpool Refrigerator Screw
21	MAY 67004432
21	833697 Whirlpool Condenser Fan Motor
22	MAY 67001096
23	MAY 12576801
23	MAY 67007052
