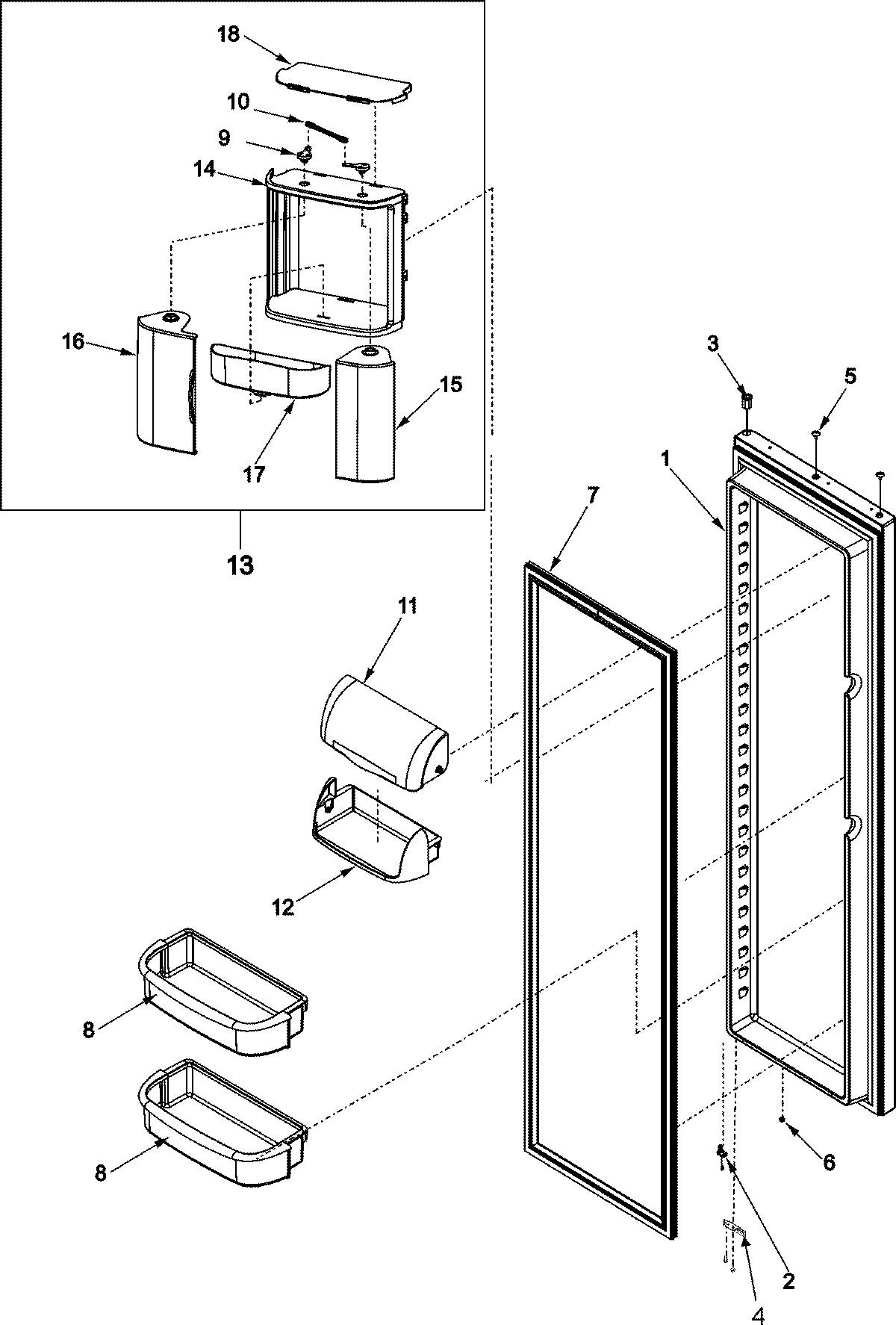

ACD2234HRQ 19 – REFRIGERATOR DOOR

Products

Position	Product
1	MAY 12818230Q
1	MAY 67003809
2	MAY M0220432
2	CLOSURE, DOOR (BLK)
2	MAY R0181181
2	SCREW
3	MAY 67004976
3	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
4	MAY 12636401C
4	MAY 67006926
4	MAY M0211018
4	WP98165 Whirlpool Screw
5	MAY M0311606
6	MAY A3080001
7	MAY 67003966
8	Bucket, Door (3)
9	Linkage, Chiller (4)
10	Linkage, Center Chiller (2)
11	MAY 67002957
12	MAY 67002304
13	MAY 67004286
13	MAY 67004287
14	Frame, Chiller (Large)
14	Frame, Chiller (Mini)
15	Door Chiller (RT) (Large)
15	Door Chiller (RT) (Mini)
16	MAY 67002295
16	MAY 67004269
16	MAY 67002410
16	MAY 67004268
17	Tray, Chiller (2)
18	Cover, Chiller (2)
