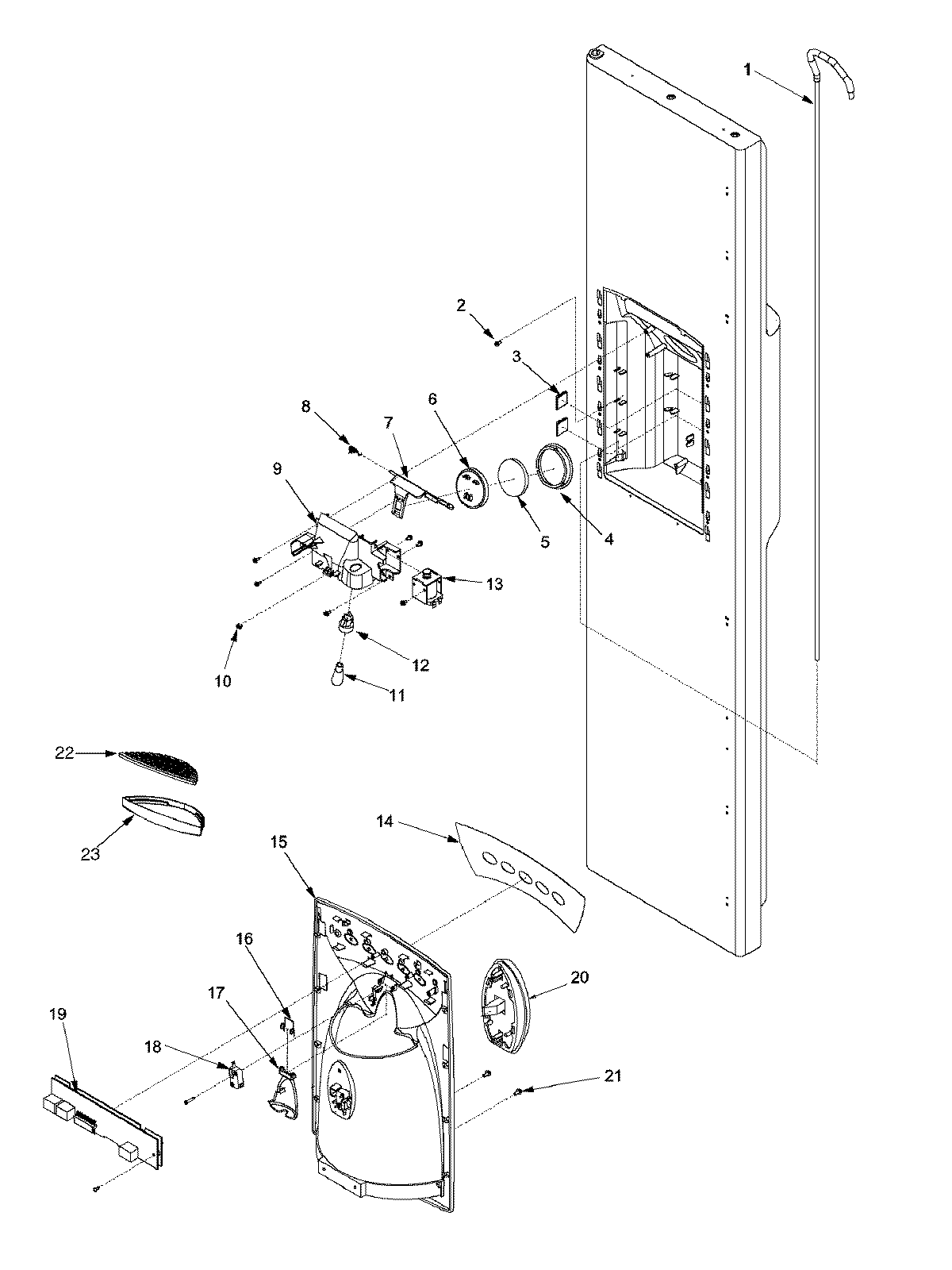

ACD2234HRW 09 – FZ DOOR AND FACADE

Products

Position	Product
1	67004938 Whirlpool Refrigerator Waterline Assembly
2	W10833902 Whirlpool Refrigerator Clamp
3	MAY M0104102
4	MAY 12665101
5	MAY 12563401
6	WP12562701 Whirlpool Dispenser Door
7	MAY 67004119
8	WP12565502 Whirlpool Refrigerator Spring
9	WP67006534 Whirlpool Refrigerator Ice Cube Chute
9	Screw (10)
10	67002816 Whirlpool Refrigerator Waterline Clip
11	W10857122 Whirlpool Refrigerator Light Bulb, 7W, for Microwave/Dryer
12	MAY 12617501
13	MAY 67006000
13	MAY 12575401
13	SCREW, SM
14	MAY 67004301
15	MAY 67006921
15	MAY 67003891
16	MAY B8385403
17	MAY 12665401W
17	MAY 12967603W
18	MAY M0237902
18	WP12575501 Whirlpool Refrigerator Micro Switch
19	MAY 67003817
19	MAY 67006862
20	MAY 12593203S
21	Screw (2)
21	Screw (2)
22	MAY 67002259
23	MAY 67002260
