ACD2234HRW 19 – REFRIGERATOR DOOR

ACD2234HRW 19 – REFRIGERATOR DOOR

Written by

in

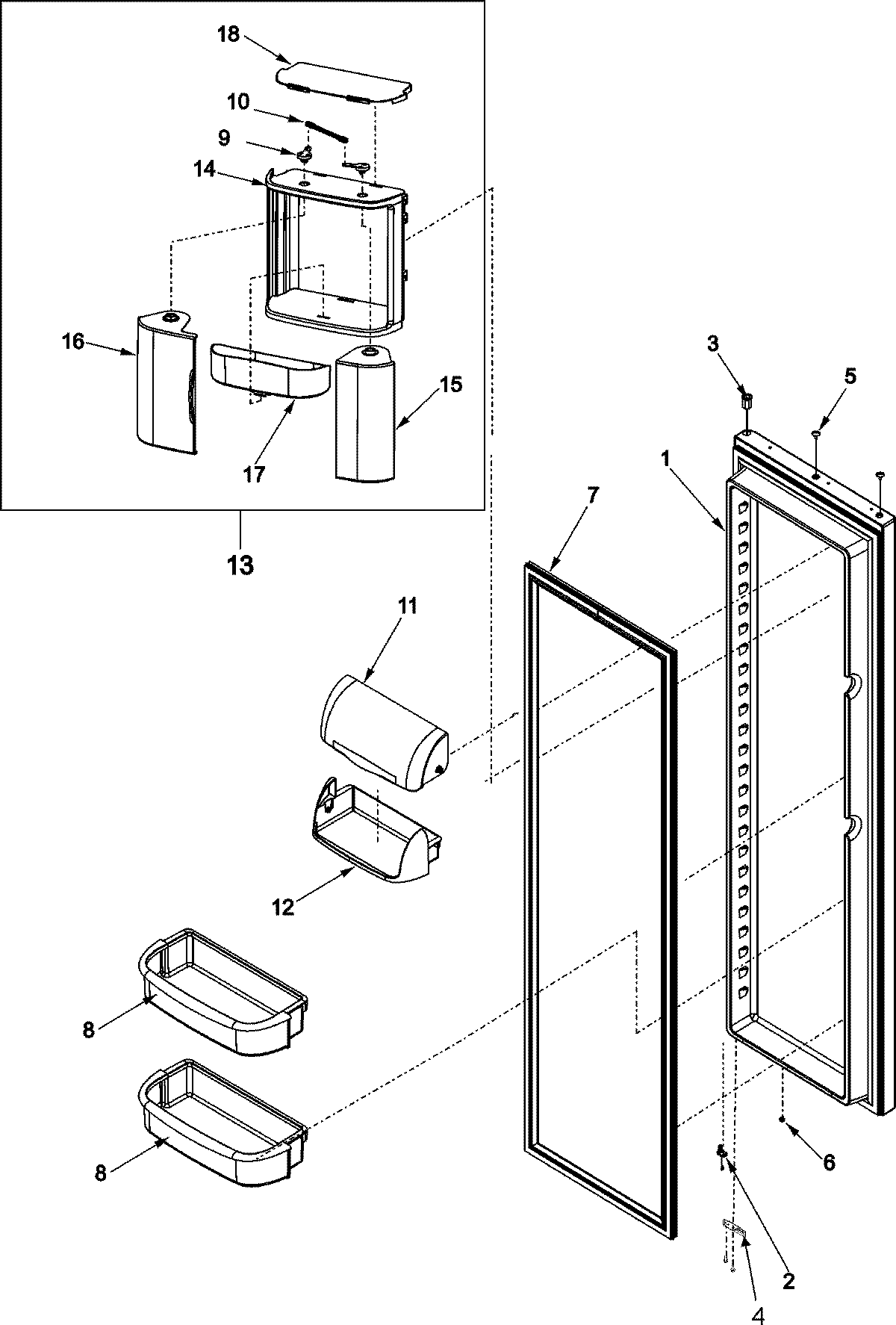

ACD2234HRW 19 – REFRIGERATOR DOOR

Products

PositionProduct
1MAY 12818230W
1MAY 67003811
2MAY M0220432
2CLOSURE, DOOR (BLK)
2MAY R0181181
2SCREW
3MAY 67004976
3WP67004977 Whirlpool Refrigerator Door Hinge Bushing
4MAY 12636401W
4MAY M0211018
4STOP, DOOR (WHT)
4WP98165 Whirlpool Screw
5MAY M0311605
6MAY A3080001
7MAY 67003966
8Bucket, Door (3)
9Linkage, Chiller (4)
10Linkage, Center Chiller (2)
11MAY 67002957
12MAY 67002304
13MAY 67004286
13MAY 67004287
14Frame, Chiller (Large)
14Frame, Chiller (Mini)
15Door Chiller (RT) (Mini)
15Door Chiller (RT) (Large)
16MAY 67004268
16MAY 67002410
16MAY 67004269
16MAY 67002295
17Tray, Chiller (2)
18Cover, Chiller (2)
